Camera Tractor Wheel

Cua Claws crawler wheels

Crawler wheels from Cua Claws can help improve footage in wet, slippery PVC or other plastic pipe. The wheels have a tungsten carbide furnace brazed to the wheel. An extended range of modes is available that can be retrofitted to the customer’s crawler. The company also offers a service to apply its carbide to crawler wheels. Some wheels are stainless steel and cannot be processed so Cua Claws has a line of replacement wheels of exact fit in mild steel so the grit can be applied. This way the customer can harvest the savings to re-grit instead of replacing the wheels when necessary. 714-697-8697; www.cuaclaws.com

Drainline TV Inspection Cameras

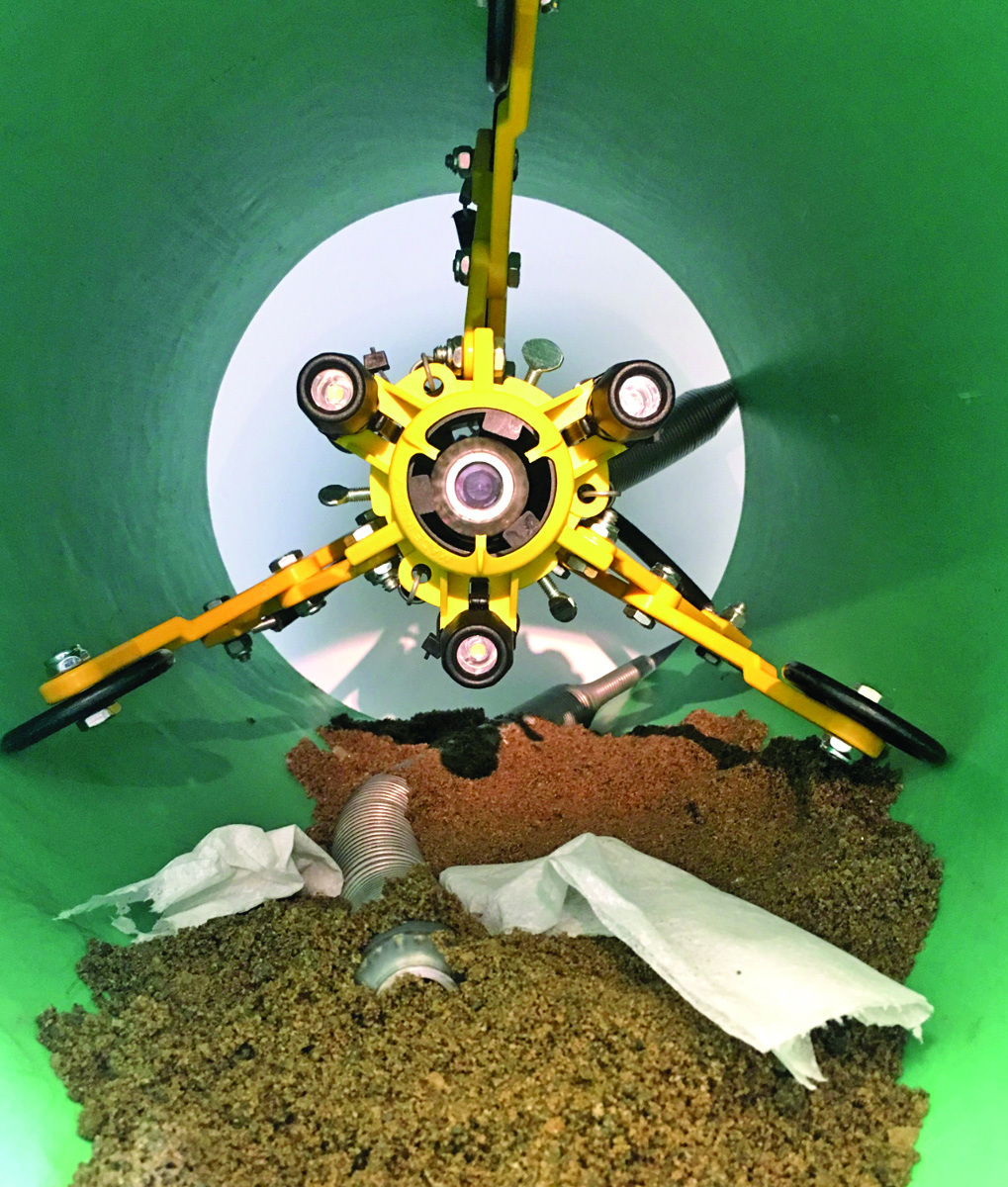

CPI Products URS1

The URS1 roller skid from CPI Products protects a wide variety of push cameras and enables them to safely go further down the pipe. A durable plastic enclosure around the camera body with wheels enables the cameras to move smoothly down the pipe, around corners and seams from 6- to 12-inch pipes. It has movable arms that expand and contract to center the camera and jump over debris, seams and negotiate elbows and maneuver around bends. A waterproof LED light kit is available to improve the camera image, and a large wheel kit enables it to be centered in pipes up to 14 inches in diameter. Cameras up to 2 inches fit inside, and for larger cameras the Endzo adapter can handle camera heads up to 2.5 inches. 413-443-0925; www.cplasproducts.com

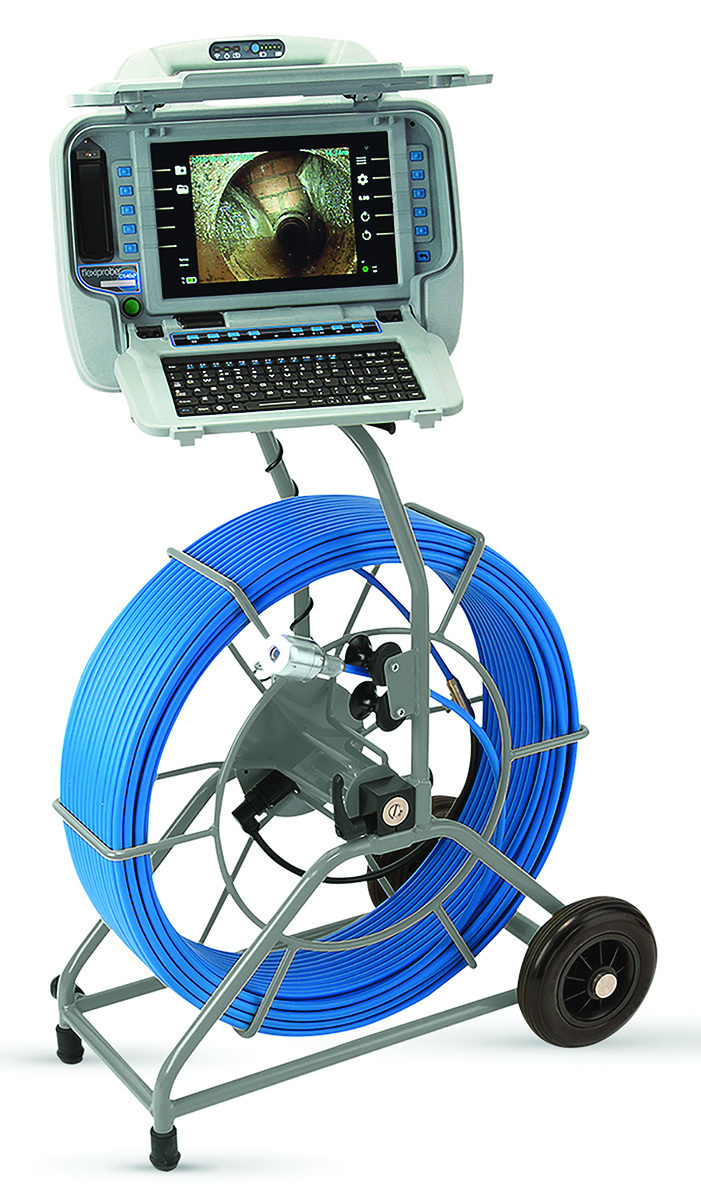

CUES flexiprobe C540c

The flexiprobe C540c portable pipeline inspection system from CUES simplifies operations by automatically creating a survey report, allowing you to concentrate on your inspection tasks. Share your reports quickly and easily via email or the Dropbox file sharing service. Systems consist of six reel configurations with two different cameras to choose from rated for withstanding water pressure of approximately 160 psi or over 300 feet underwater. Each system serves unique applications and a majority of inspection needs within the sewer industry today, from 1 1/2- up to 12-inch pipe. The system is managed by a powerful and intuitive controller with a quick boot-up, an intuitive user interface and a high-definition 10.1-inch TFT display. 800-327-7791; www.cuesinc.com

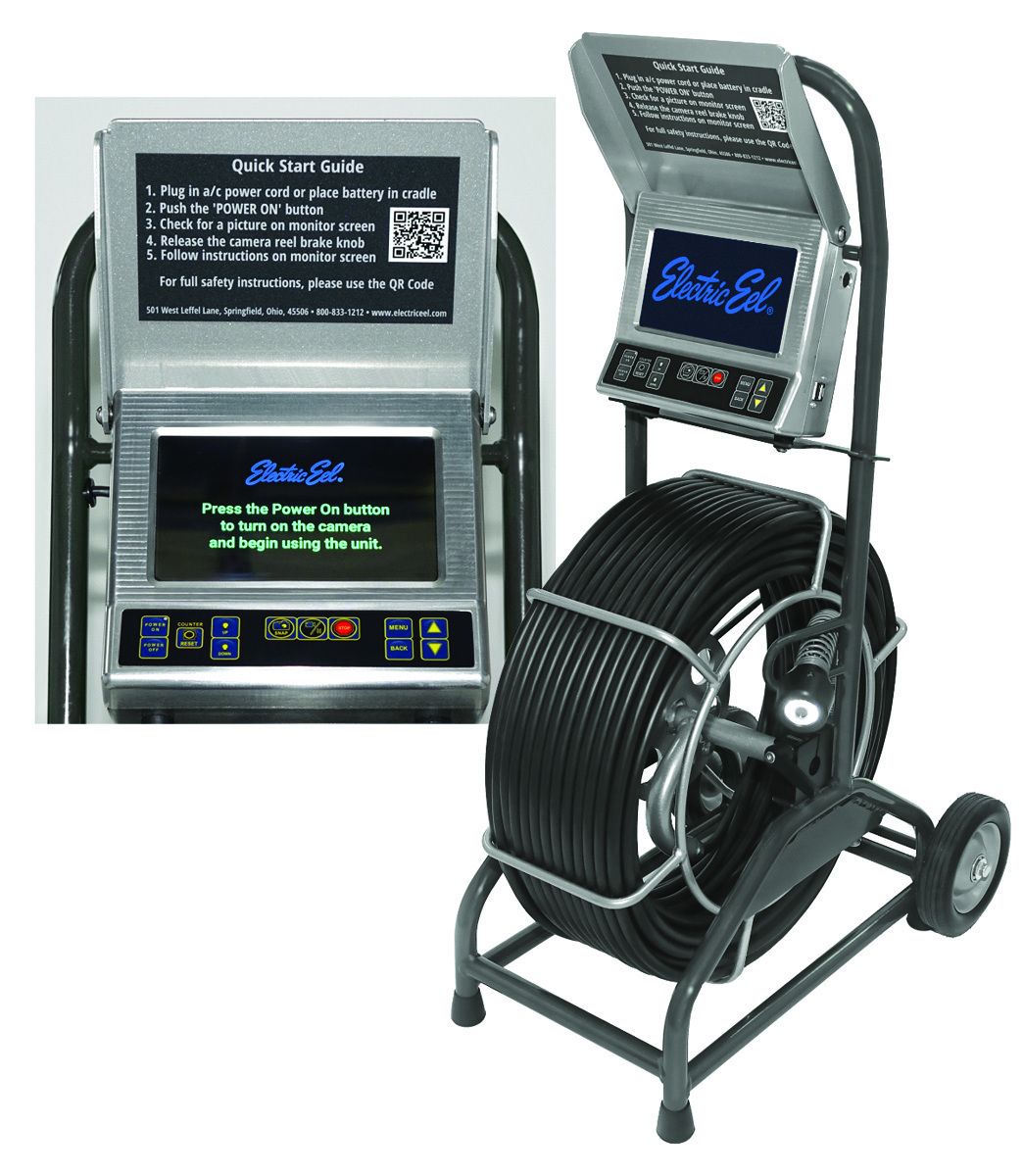

Electric Eel EELvision Elite

The EELvision Elite inspection camera from Electric Eel is designed for inspecting 3- to 10-inch-diameter lines. It has a 1.30-inch self-leveling color camera with vivid adjustable LED lights and a large 7-inch monitor for easy viewing. A sunshield allows for outdoor viewing and protects the monitor in transport. It comes standard with 200 feet of 1/2-inch-diameter premium push cable, an on-screen footage counter, continuous display odometer, one-touch recording to USB and screenshot capability, an extended ergonomic handle to facilitate maneuverability and transport, heavy-duty metal frame and wheels, a user-friendly control panel, quick-start guide tutorial prompts, QR code for manual and support accessibility, a built-in always-on sonde, dual power sources (AC and 18-volt), and a Makita M18 battery port. It also accepts both Milwaukee and DeWalt batteries with a provided adapter. 800-833-1212; www.electriceel.com

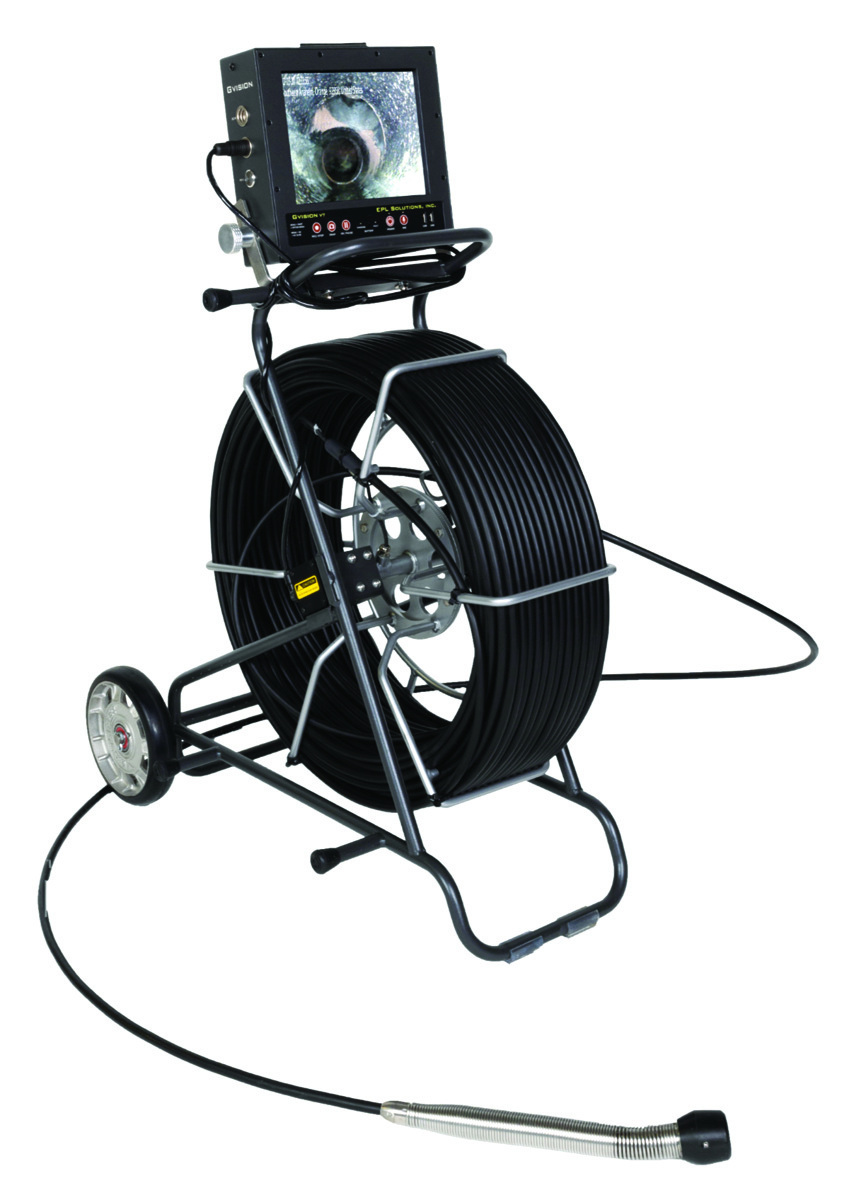

EPL Solutions Gvision V7

The Gvision V7 from EPL Solutions is a ruggedized elite camera system that can be purchased for mainline use with 200, 300 or 400 feet of stiff yet flexible pushrod or a 150-foot mini-camera. Instantly capture video recordings and snapshots with the press of a button and access them anytime within the internal storage. The tech will never have to wonder where a video was taken as geolocation information is automatically attached and displayed on recordings. Add text overlay using the camera reel or a USB keyboard. Copy recordings and snapshots on two USB flash drives at once, or share them using the Gvision app. The app allows the user to remotely control, preview and download video inspections for easy sharing. Users can capture every detail with the color camera head clearly displayed on a 10.4-inch TruView LCD screen. Add an internal battery for up to six hours of runtime. 714-453-9760; www.epls-usa.com

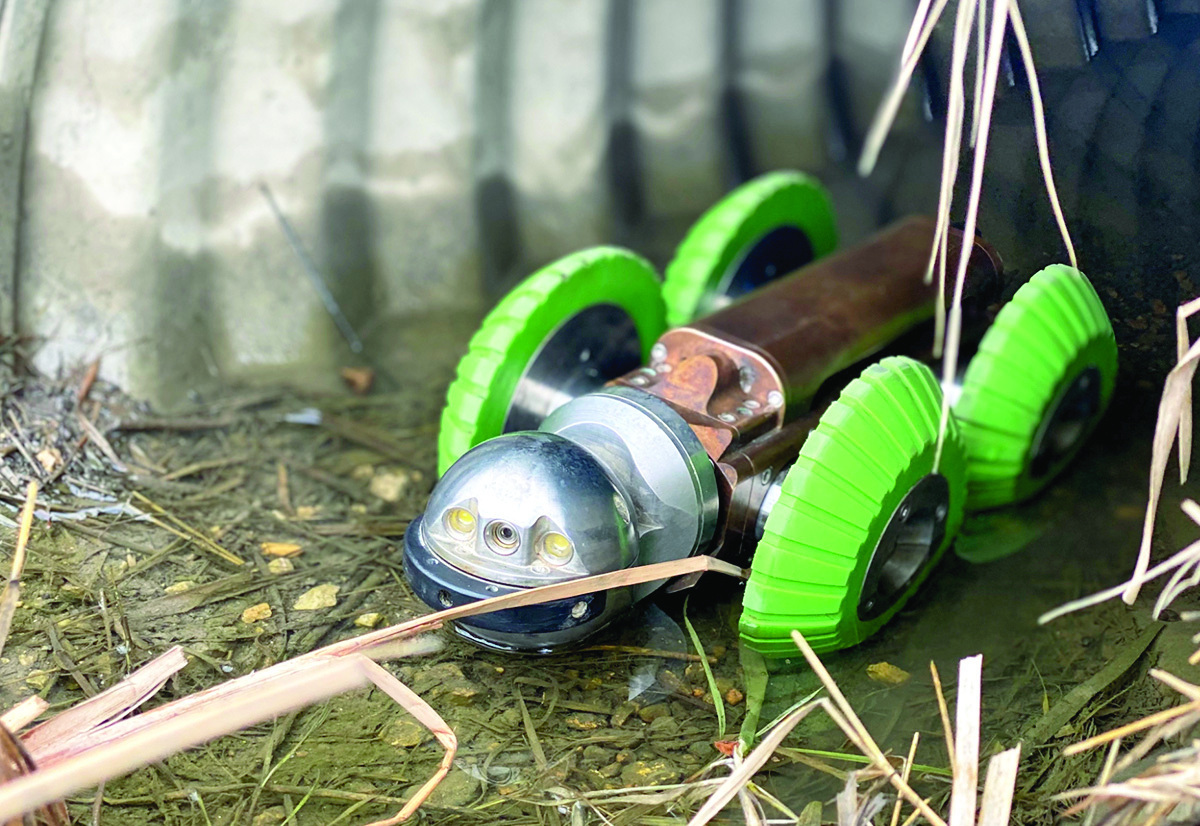

Fiberscope.net by MEDIT TROGLOTREK

The TROGLOTREK pipe inspection robot from Fiberscope.net by MEDIT is operated by a rechargeable battery and does not require access to an AC power supply, making it convenient for use in remote locations. All system parts, including a motorized cable drum, are battery-powered. With a full range of quick-changeable wheels, the robot can inspect pipes from 4 inches in diameter and up. For larger pipelines, additional auxiliary lights and wheel extension brackets are available. The pan-and-tilt camera thoroughly observes the inspection area, while a rear-view camera lets you monitor the surrounding area when moving backward. The crawler comes with a 984-foot Kevlar braided cable. The splash-proof control center allows the system to be used in wet locations or during rain or snow. Inspection data can include text, footage and inclining information. 877-613-2210; www.fiberscope.net

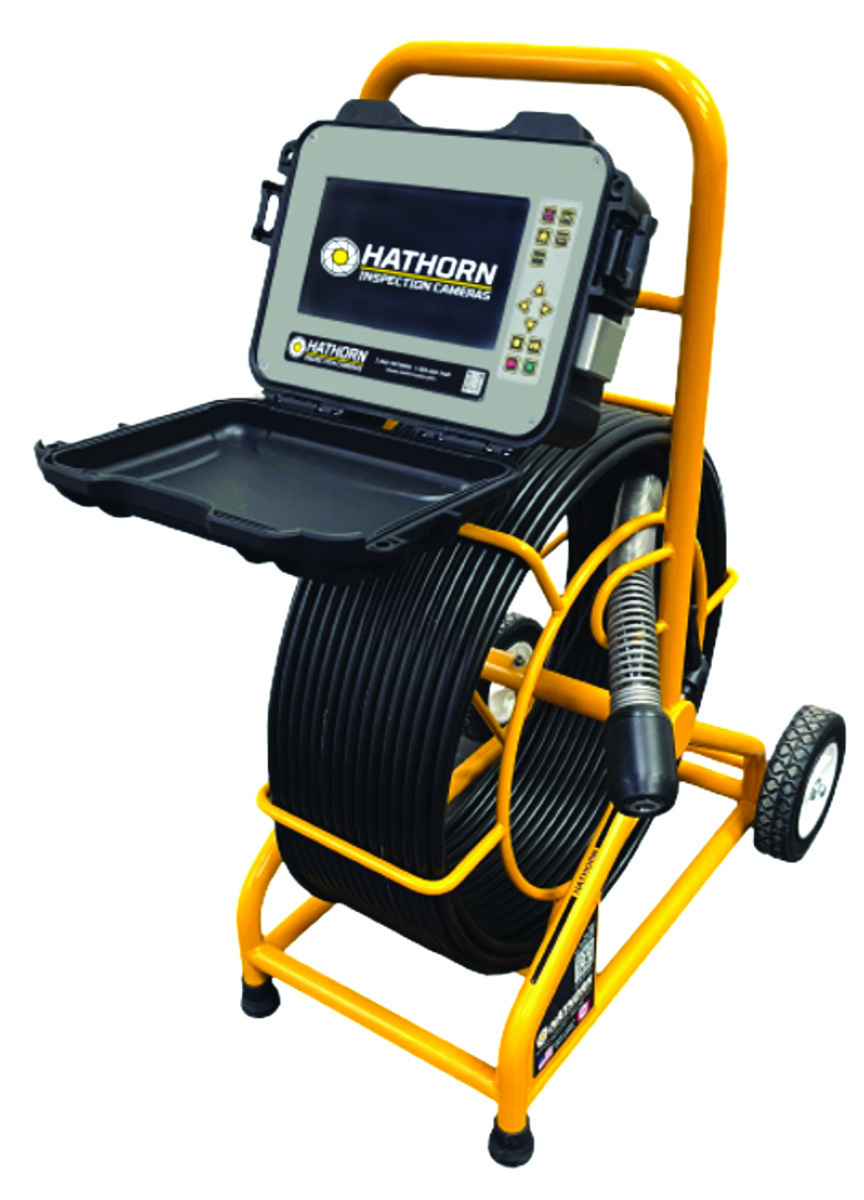

Hathorn Inspection Cameras H7

The H7 from Hathorn Inspection Cameras is a complete inspection camera system that comes standard with a 7-inch daylight-readable, shatter-resistant LCD monitor with 1,000 cd/m2 of brightness. It also has an on-board hard drive with 64 GB (upgradable to 128 GB) capacity and USB recording allowing the user to record MPEG4 video and JPEG screenshots. These systems are compatible with 18-volt Milwaukee (or equivalent) batteries for portability and over 5 hours of runtime on a single charge. They come with 200 feet of premium cable and a choice of camera heads. They are available with Wi-Fi video streaming technology as an option. 866-428-4676; www.hathorncorp.com

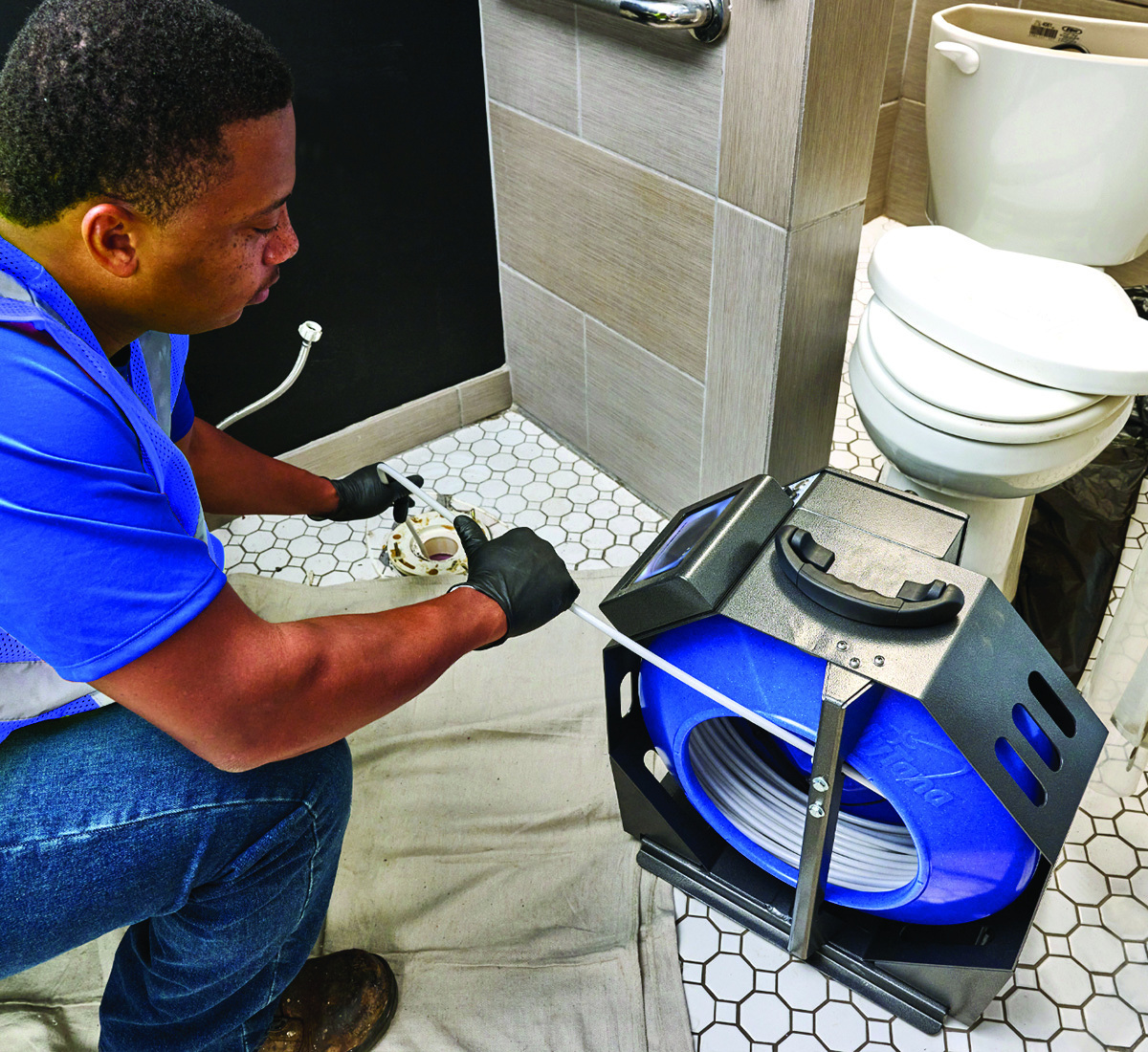

MyTana MS11-NG2

MyTana’s versatile MS11-NG2 inspection system inspects 3- to 6-inch lines with a self-leveling camera head. Swap in a smaller head included with the optional MS11+ Combo Kit to inspect 1.5- to 2-inch lines. Each head has a 512 Hz transmitter built in. A high-clarity 6.4-inch daylight-readable monitor and all the controls are integrated on the sturdy reel frame for grab-and-go convenience; helpful when access points are scattered or hard to reach. Save footage to internal or removable drives, or stream video wirelessly to a mobile device and add voiceover using the built-in microphone. The durable pushrod is available in 150- or 200-foot lengths and can be replaced in your facility. 800-328-8170; www.mytana.com

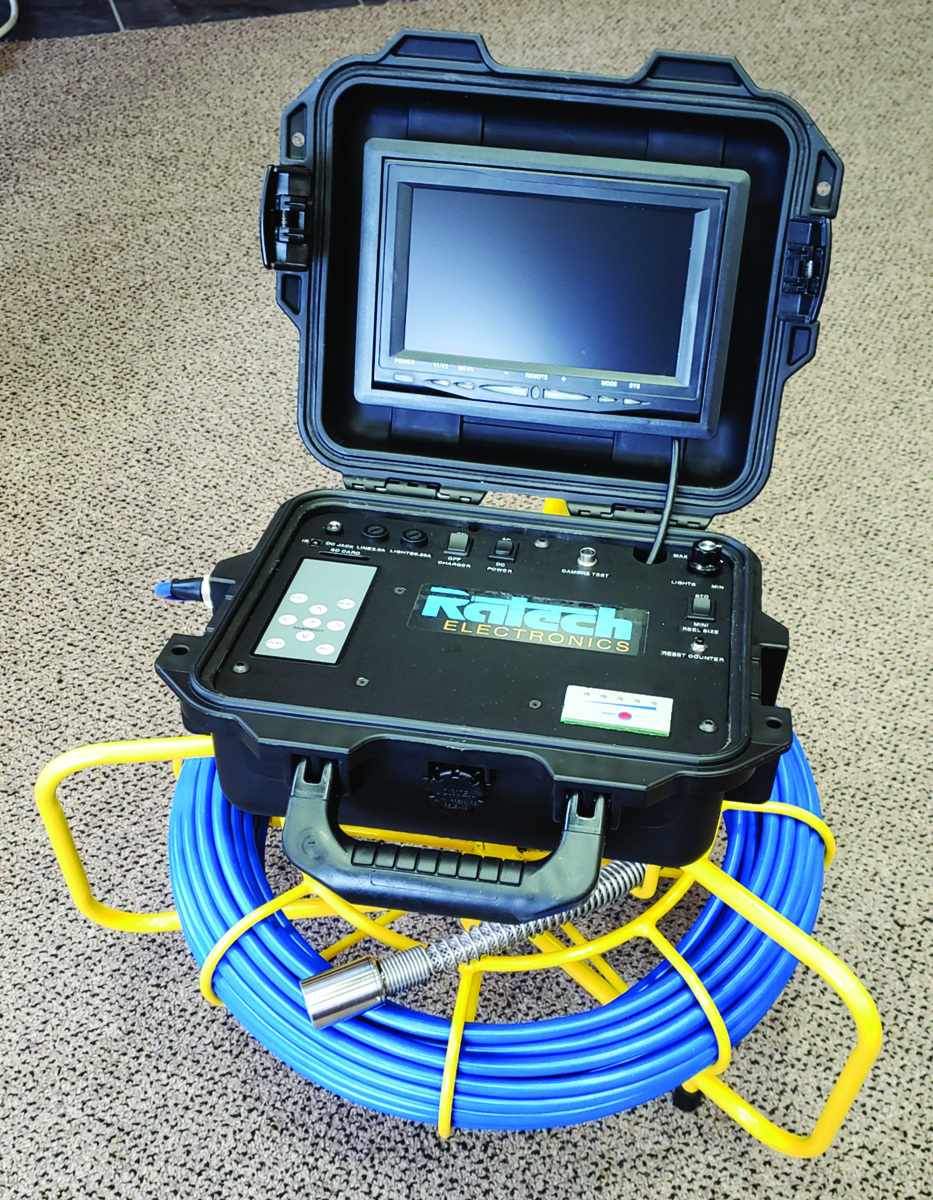

Ratech Electronics Plumber’s Helper Jr.

The Plumber’s Helper Jr. pipe inspection system from Ratech Electronics is based on a small-scale reel and comes with 100 feet of mini Gel Rod cable, a removable compact command module with 7.1-inch LCD, a built-in battery, and an SD recorder for digital images and video. This mini pipe inspection system is available with a full-spectrum, 1.375-inch, self-leveling color camera; a standard color camera; or any of the company’s three micro camera heads — 5/8-, 3/4- or 1-inch diameter. 905-660-7072; www.ratech-electronics.com

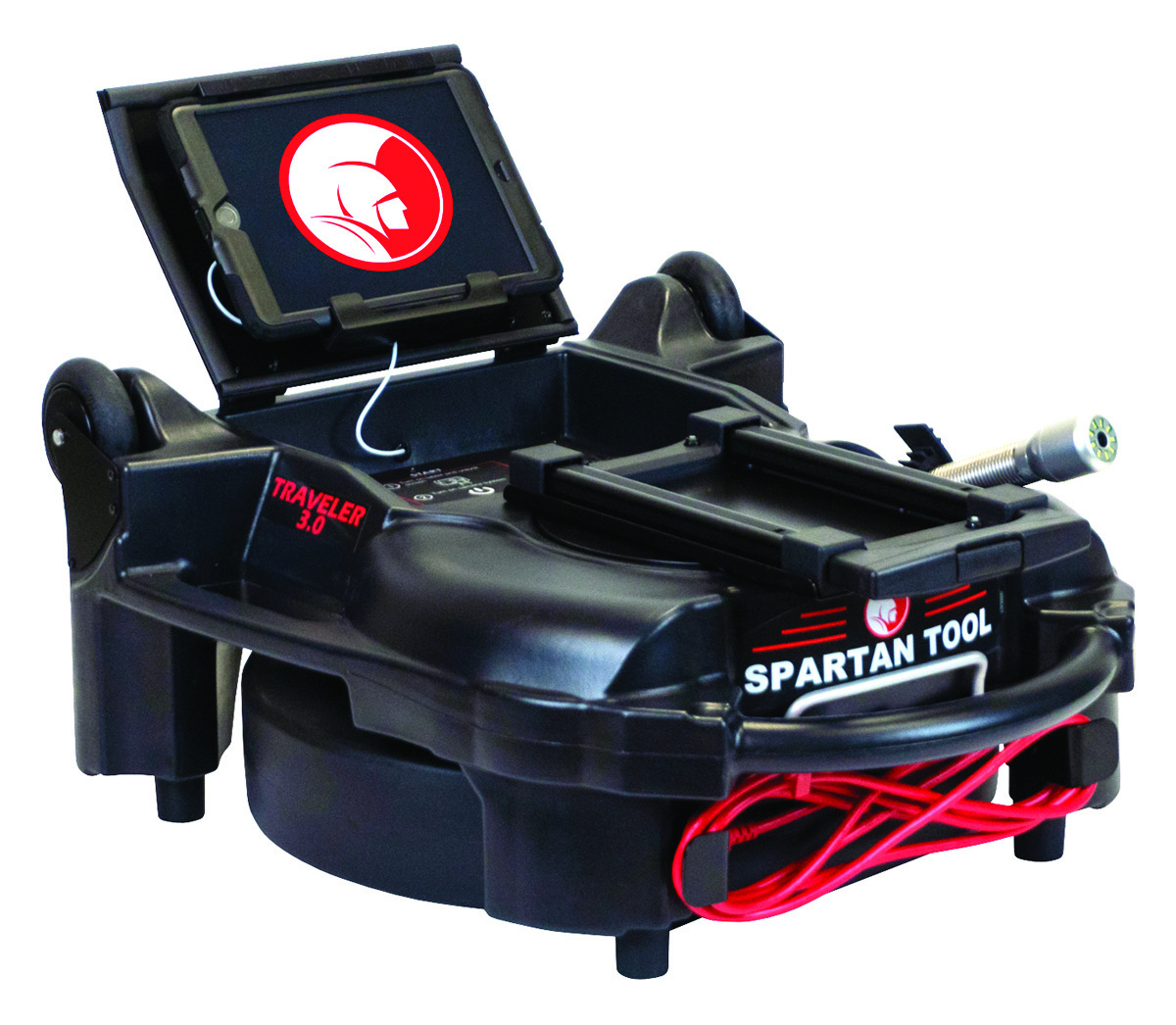

Spartan Tool Traveler 3.0

The Traveler 3.0 is the next generation of Spartan Tool’s all-in-one sewer inspection system, upgraded for tough customers. It is the same compact, portable size as before but includes completely rebuilt and upgraded interior components. It offers a stronger, more durable pushrod with a removable reel, allowing you to swap reels in the field quickly and easily. An upgraded camera head with high-intensity LEDs comes standard, but a line of easily interchangeable, customizable camera heads is offered for flexibility. The upgraded interior electronic components are built to withstand harsh environments and deliver better resolution and accuracy. 800-435-3866; www.spartantool.com

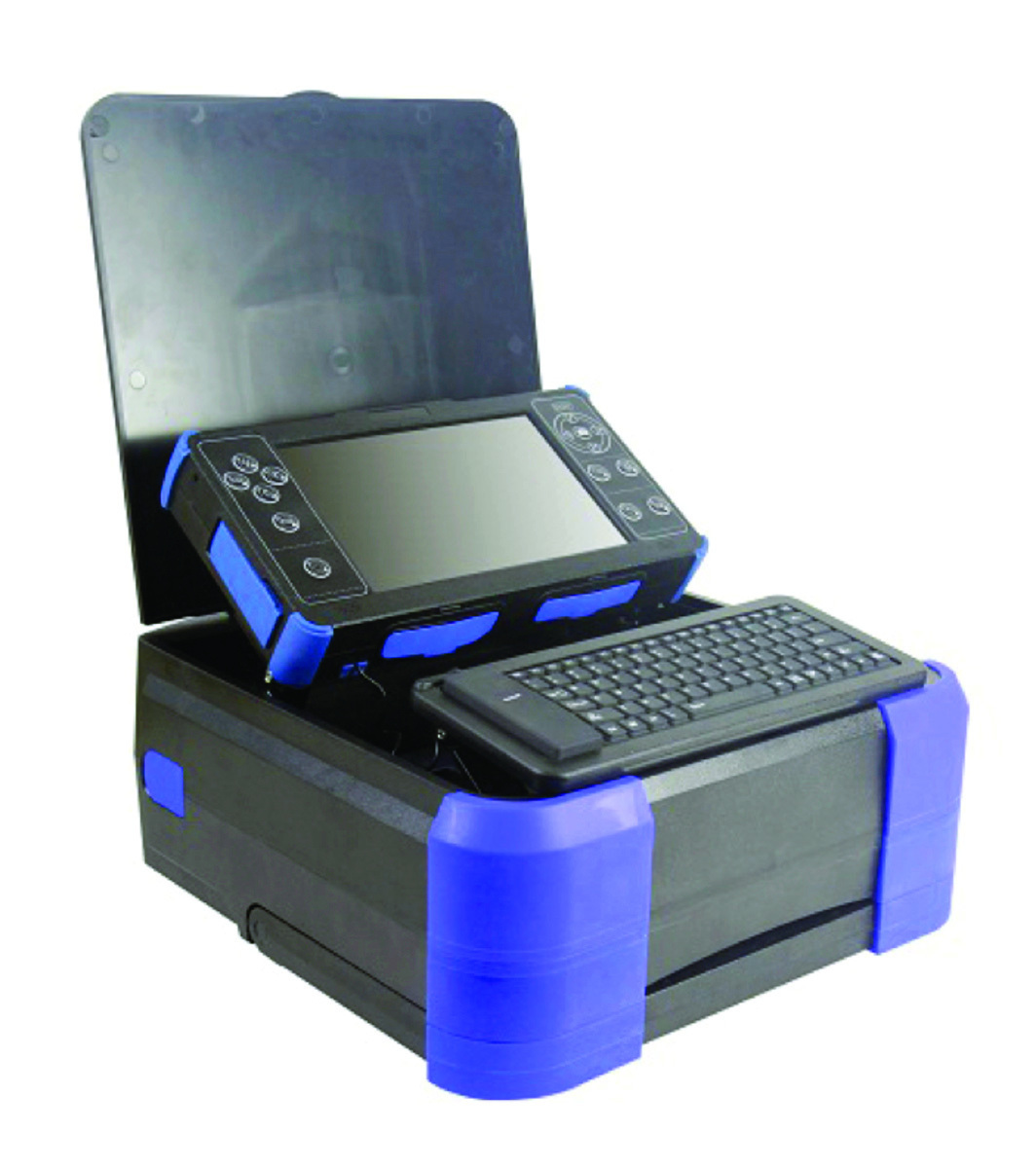

TROJAN WORLDWIDE VisionHD

The VisionHD 1080P camera system from TROJAN WORLDWIDE is a reliable and easy-to-operate system designed for use in 1.5- to 4-inch lines. The all-in-one enclosed case features a 1-inch high-definition 1080p self-leveling waterproof color camera head with adjustable LED lights and a built-in 512 Hz sonde transmitter for locating. The system has 100 feet of durable pushrod, and a built-in foot counter. The display module has a 10-inch full HD LCD with DVR and is capable of recording to an SD card or USB flash drive for up to 6 hours on a full charge. Other features include a keyboard for text writing and attachable microphone for voice recording. Accessories include headphones with mic, two centering skids, charging cord and USB adapter. 800-395-4902; www.trojanworldwide.com

Electronic Leak Detection

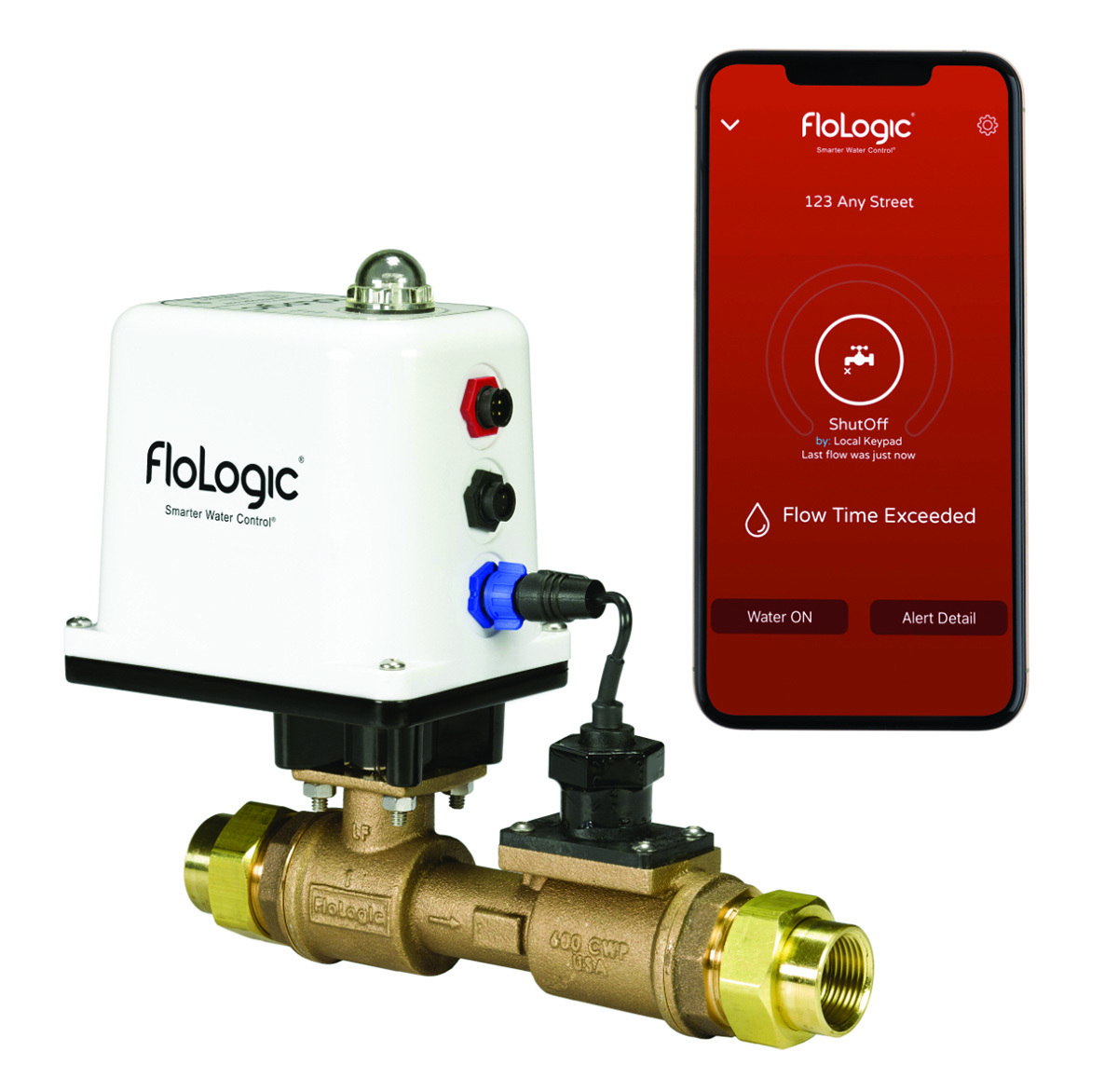

FloLogic

The FloLogic alarm offers smart leak detection and an automatic shutoff system with industrial-grade U.S.-made cast bronze valves in sizes up to 2 inches. It has comprehensive real-time leak detection, detecting leaks as small as a half-ounce per minute from the moment they start. When a leak is detected, the water is shut off automatically and the users receive an alert through the FloLogic smartphone app. The FloLogic CONNECT module also features a thermometer, allowing low room temperature alerts and automatic water shutoffs. All systems are equipped with battery backup for continued protection during outages. Plumbers who sell and install FloLogic can help their clients secure their home against plumbing supply leak damage. 877-356-5644; www.flologic.com

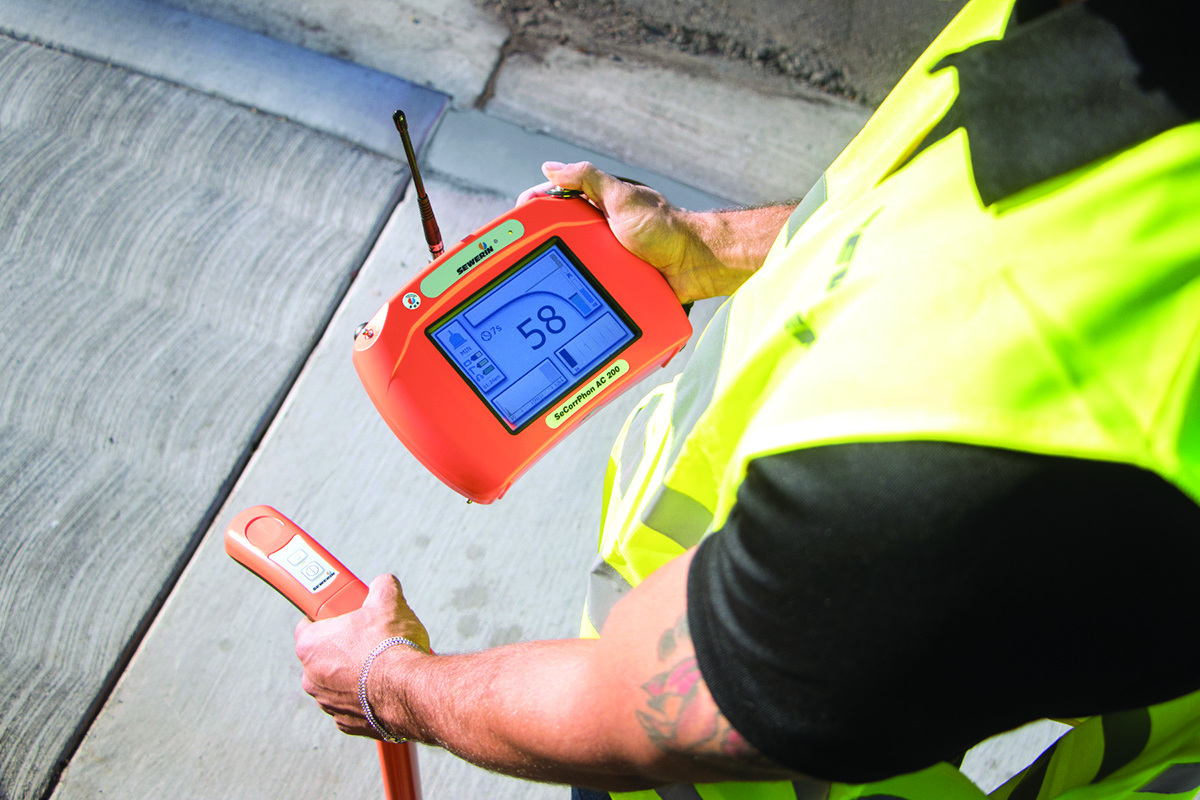

Hermann Sewerin GmbH SeCorrPhon AC 200

The SeCorrPhon AC 200 from Hermann Sewerin GmbH combines the characteristics of a correlator with acoustic water leak detection, meaning prelocation, pinpointing and correlation in one single system. It includes an easy-to-read measurement value display and automated filter selection. It is based on the tried and tested housing and hardware concept of the AQUAPHON A 200. Each is ideal for use for leak detection across all sections, materials, diameters and lengths of pipelines. Numerous additional functions are also available for complex location scenarios. 888-592-9916; www.sewerin.com

Electronic Pipe Location

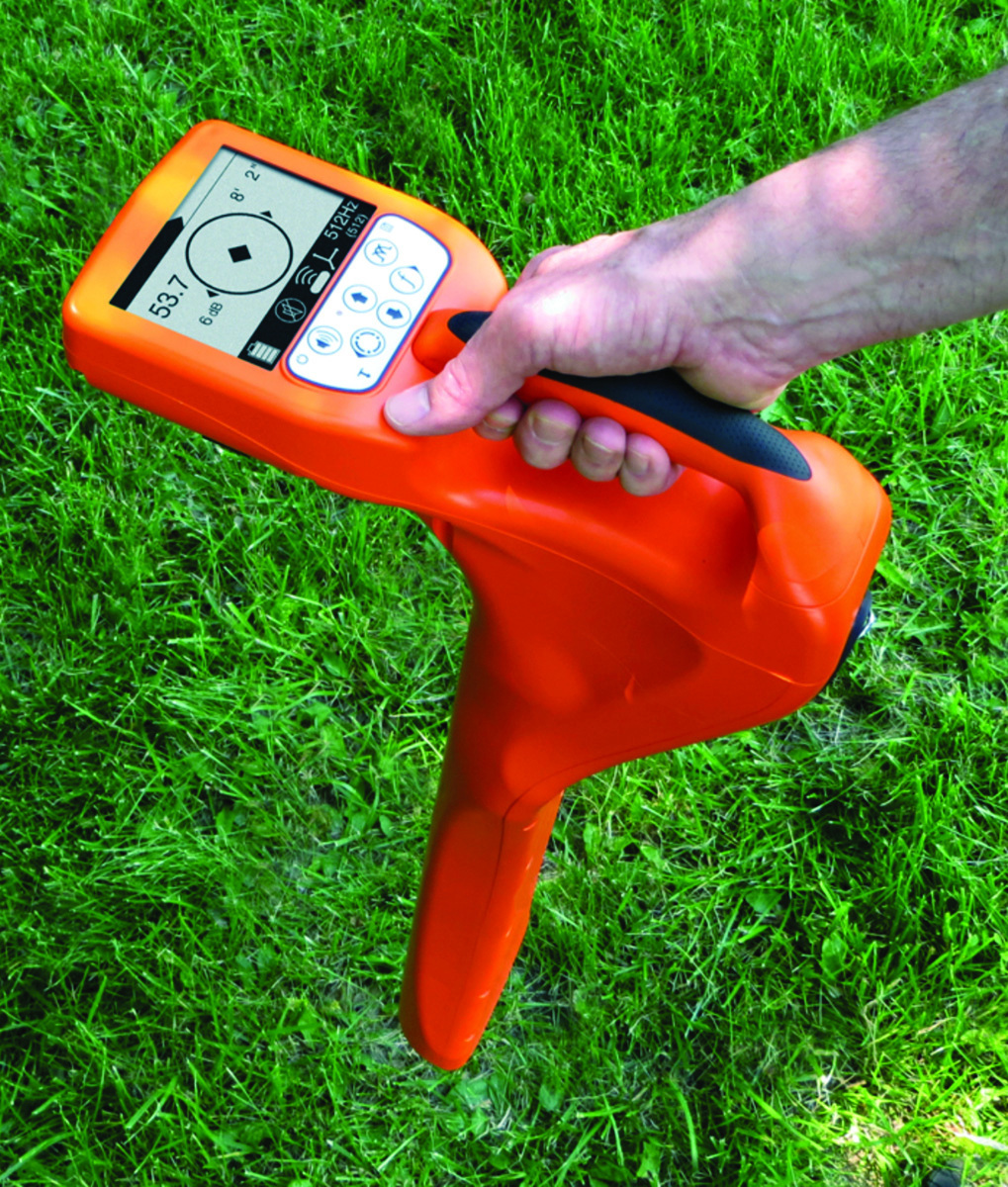

General Pipe Cleaners Gen-Eye Hot Spot

General Pipe Cleaners’ Gen-Eye Hot Spot pipe locator includes a total field antenna array and on-screen icons to lead the user to the target, without the long learning curve. They can quickly locate inspection cameras, sondes, active power lines and utility lines with pinpoint accuracy. The rugged locator is rated at IP65, is dust- and dirtproof, and water-resistant. It passed the one meter drop test and the screen passed the 18-inch steel ball drop test. There is no need to interpret numbers and bar graphs, as the easy-to-see auto backlit LCD shows the way with arrows that point users in the right direction every time. Utility line location and active buried power line locating is just as easy. 800-245-6200; www.drainbrain.com

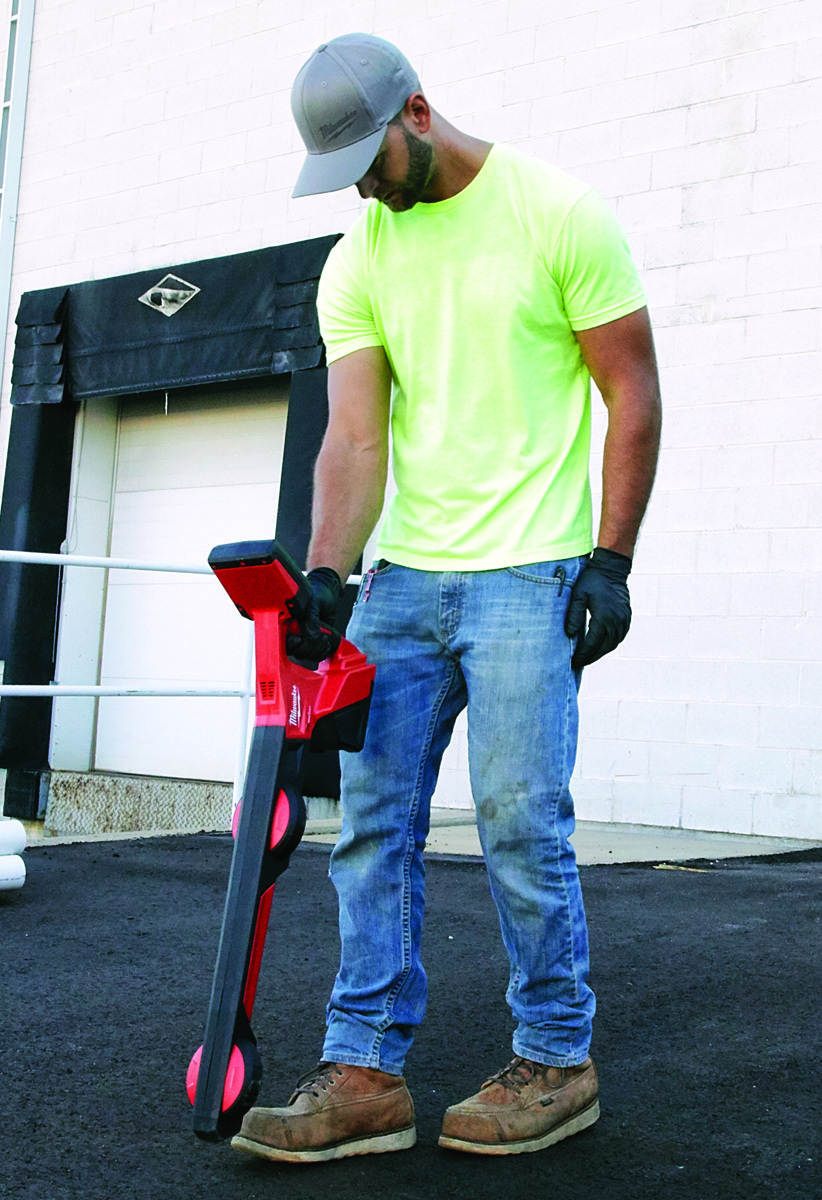

Milwaukee Tool M12 Pipeline Locator

Milwaukee Tool’s M12 Pipeline Locator provides plumbers and drain cleaners with a simple locating experience. A guiding arrow appears on the 4.3-inch daylight-readable screen upon startup, immediately pointing in the direction of the sonde and eliminating the need to guess and check the exact location of the sonde. A sonde icon appears on screen to confirm the exact location once in range. Omnidirectional antennae make it easier to locate than ever before, providing increased sensitivity for precise locating and eliminating false peaks. The locator features a sealed battery door and is IP 65 rated for durability in harsh job site conditions. All of Milwaukee’s inspection reels feature energized push cables, allowing users to quickly locate and map sewer lines. Milwaukee is committed to delivering a comprehensive lineup of pipeline inspection camera solutions to improve the way work gets done. 800-729-3878; www.milwaukeetool.com

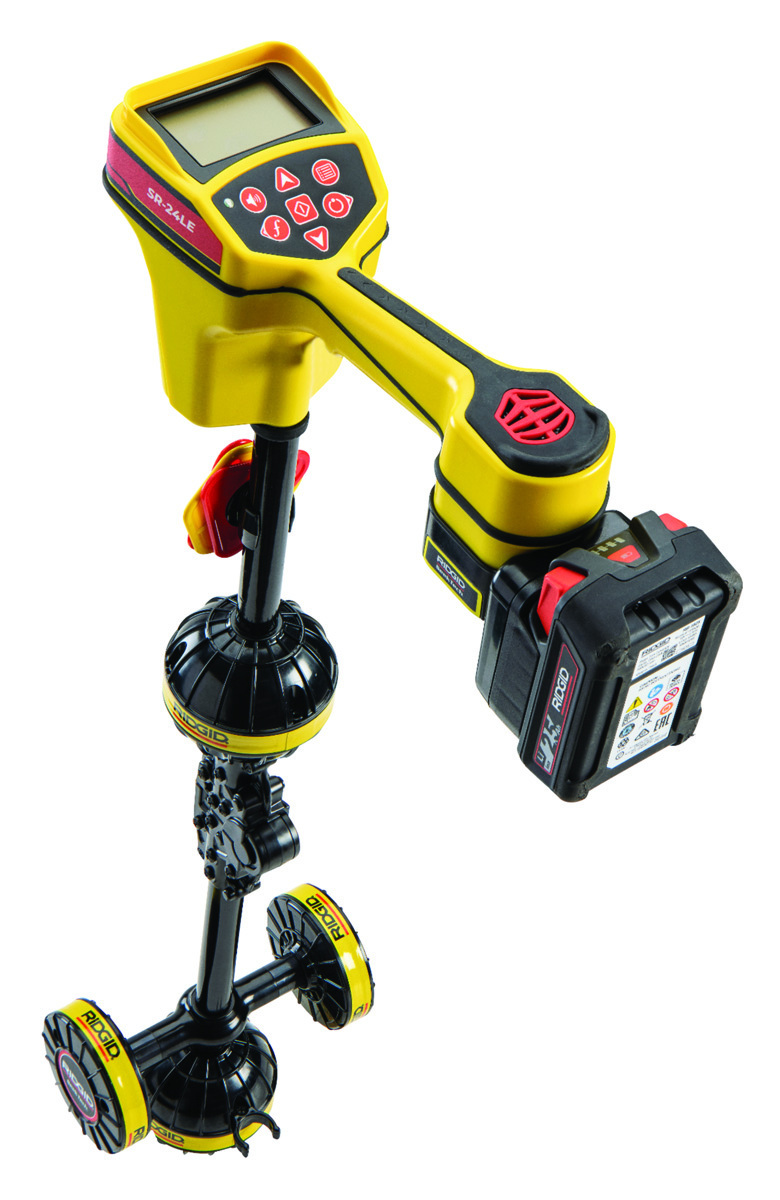

RIDGID SeekTech R-24LE

The RIDGID SeekTech SR-24LE is a precision utility locating receiver with integrated GPS and Bluetooth Low Energy technology for easy integration with smartphones, tablets and high-precision GPS instruments for real-time location coordination via the RIDGIDtrax App. Its omnidirectional antennas capture the complete signal field, making it easy to acquire the signal and trace its path. The receiver maps the utility’s position and direction on its display for an intuitive locating experience. Audio and visual warnings notify the operator if the shape of the signal field is being distorted so action can be taken to avoid mismarking the utility’s position. Equipped with the 18-volt battery adapter, it is ready to be powered with a RIDGID 18-volt battery (not included) for long-lasting power in the field. It also has a foldable mast for easy transport and storage. 800-769-7743; www.ridgid.com

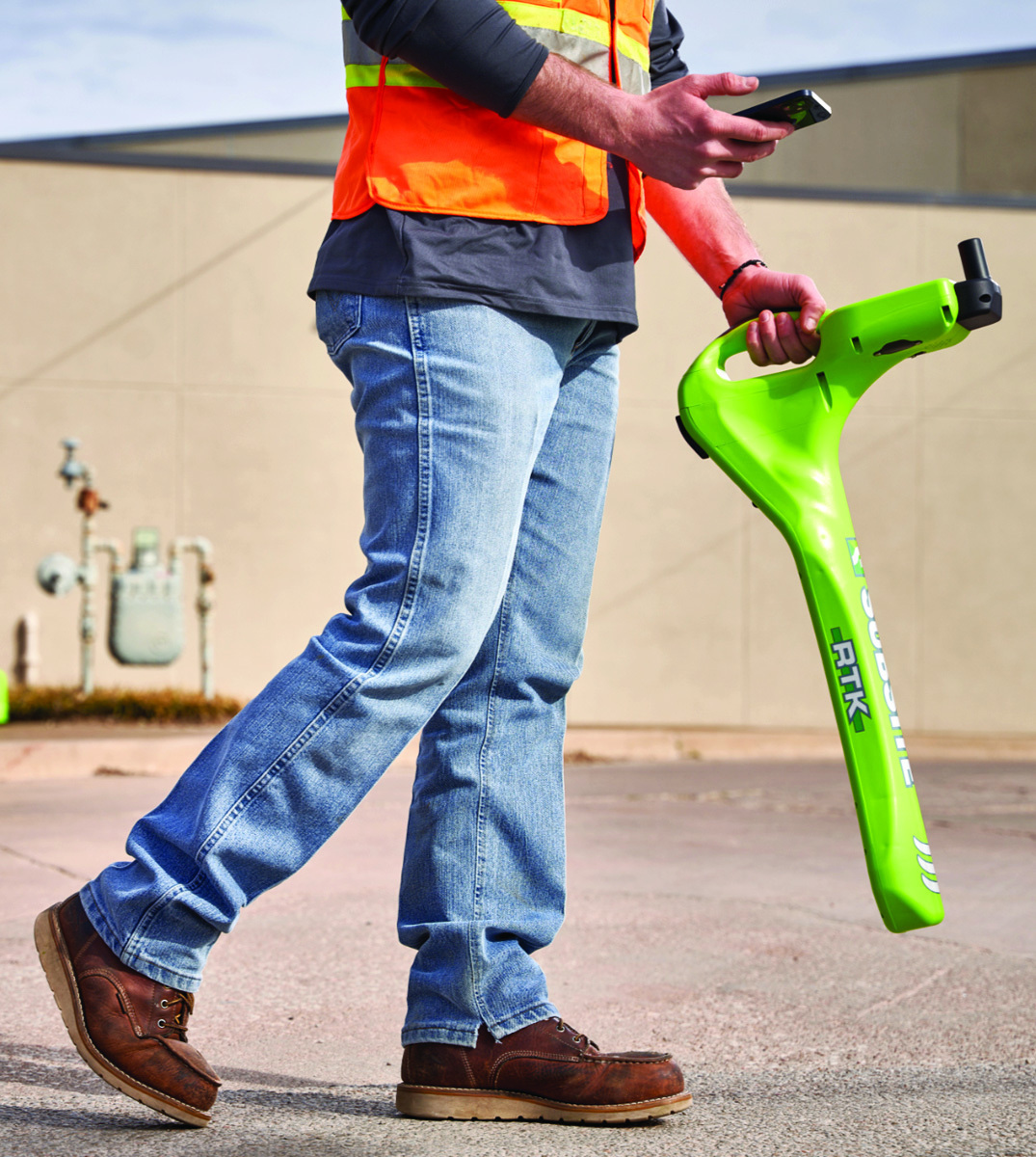

Subsite Electronics UtiliGuard 2 RTK

The UtiliGuard 2 RTK receiver from Subsite Electronics was designed as a simple, easy-to-operate utility locating tool for operators locating, mapping and capturing underground utilities. It utilizes survey-grade technology and features dual-band antennae to provide operators with reliable positioning data with centimeter-grade accuracy. Its precision helps when locating abandoned and untracked utilities that are difficult to pinpoint. By quickly verifying the utilities installed, operators efficiently tailor bids to match a job site needs, as well as gain insight into the underground infrastructure to avoid cross bores during future projects. The receiver provides locate crews with integrated data capture, GPS positioning and an intuitive user interface to improve work quality and maximize locate awareness. By downloading the MyUtiliGuard application, operators simplify and streamline how they capture, map and share data. 800-846-2713; www.subsite.com

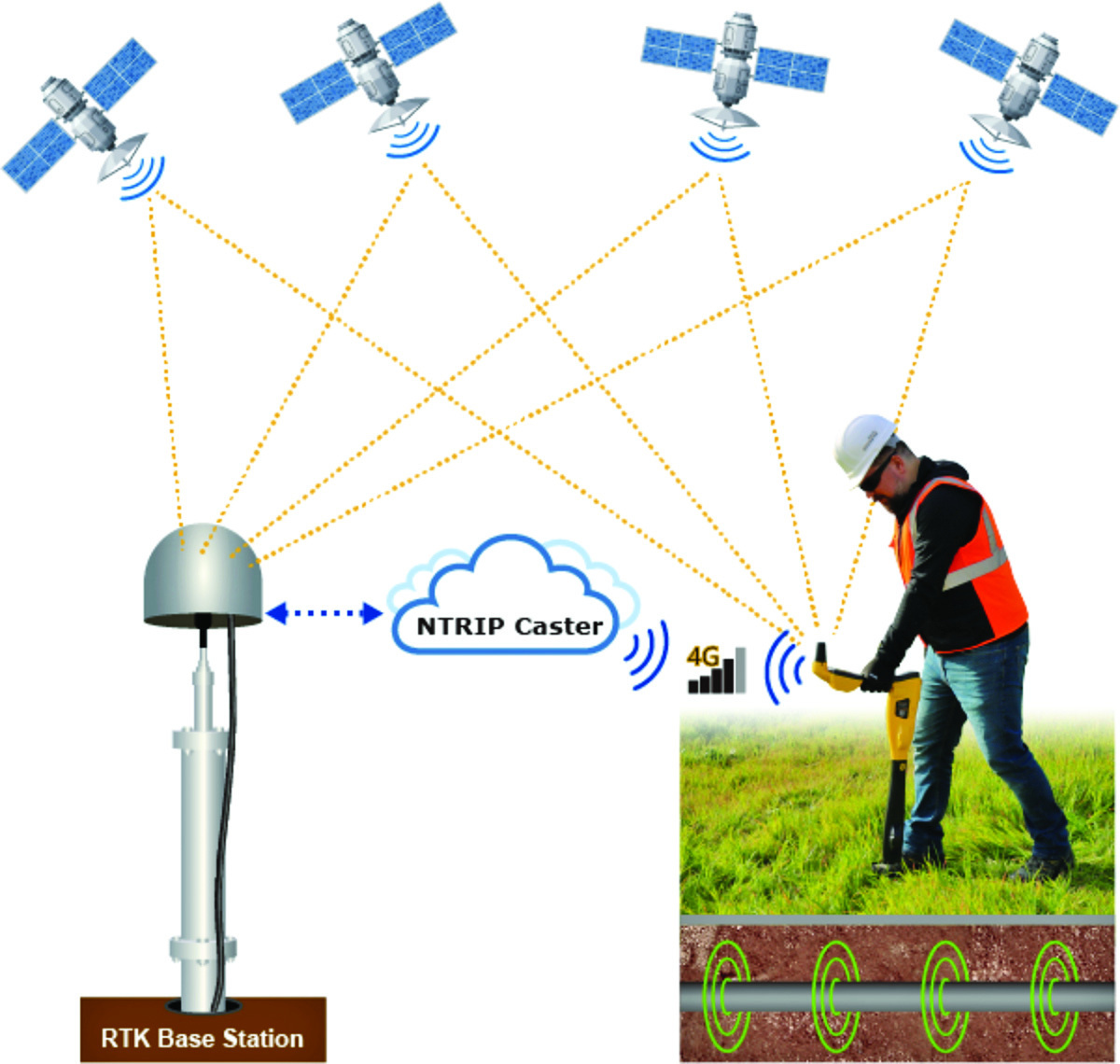

Vivax-Metrotech vLoc3 RTK-Pro

The vLoc3 RTK-Pro utility locator from Vivax-Metrotech adds RTK GNSS accuracy. Using the internal cellular module with 4G LTE capabilities, the operator can connect to an NTRIP RTK (Real-Time Kinematic) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data and the utility’s geographical location with survey-grade accuracy. All field data is sent to the cloud and retained in the receiver’s onboard storage for review and exporting to mapping programs. 800-446-3392; www.vxmt.com

Smoke Locators

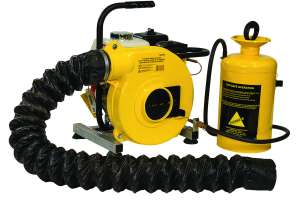

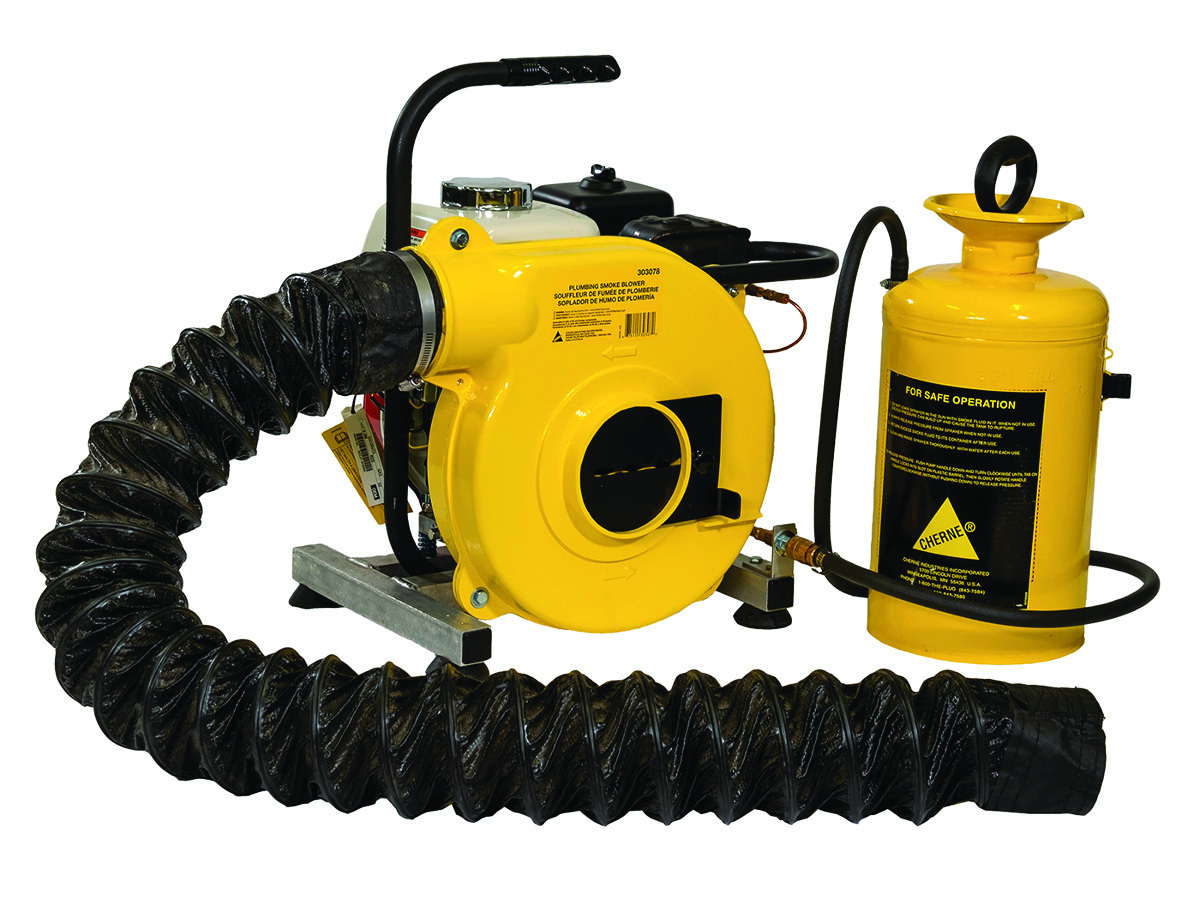

Cherne Residential Plumbing Smoke Blower

The Cherne Residential Plumbing Smoke Blower is a fast and easy leak-detection system. The blower uses long-lasting dense smoke that is pumped into a plumbing system to identify leaks quickly and efficiently. Featuring a 5-foot heavy-duty hose that fits a 4-inch cleanout tee, the blower is lightweight and corrosion-resistant. With exhaust pumped through the plumbing, the blower can be used indoors and easily transported with its top-mounted carrying handle. Its efficient 122-CC, 3.5 hp, 4-stroke Honda engine provides more than 700 cfm, making it fast, easy and safe to determine plumbing problem areas. Vibration damping minimizes excess movement and noise, creating a smoother and more efficient experience. 800-843-7584; www.cherneind.com

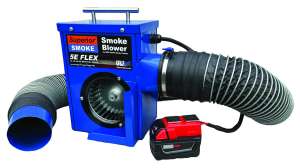

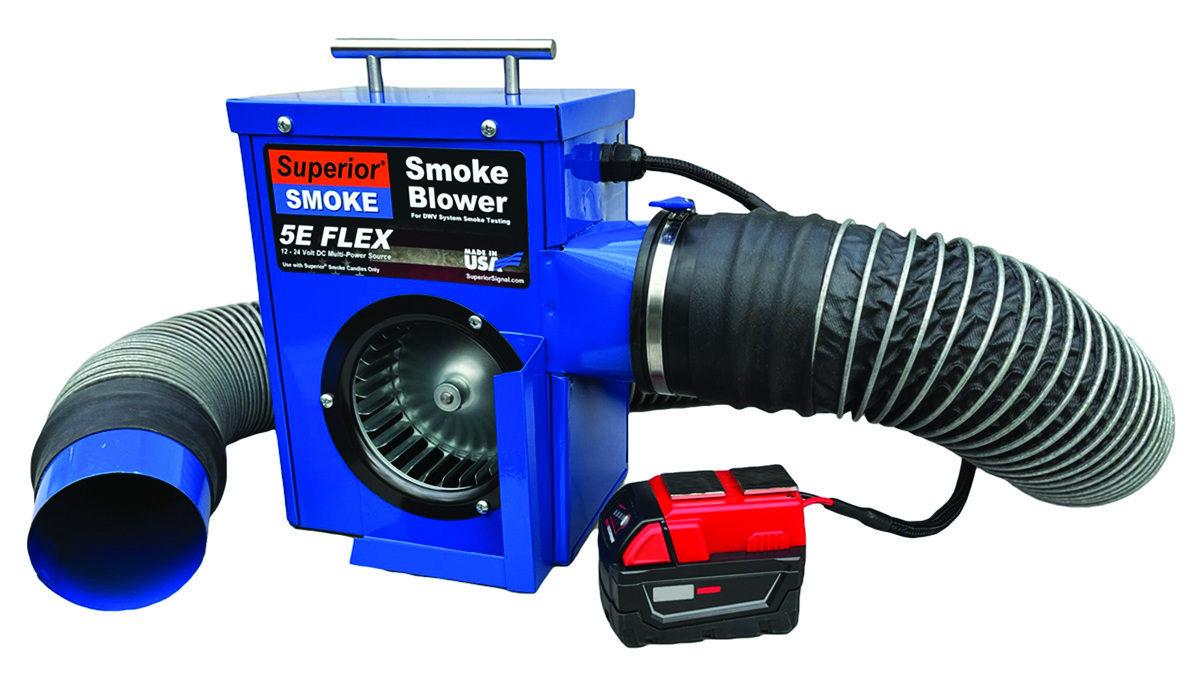

Superior Signal 5E FLEX

Superior Signal’s 5E FLEX battery-powered smoke blower is designed for smoke-testing building plumbing and sewer laterals. It is compatible with leading 18- to 20-volt tool batteries and, utilizing a high-quality power adapter, the blower integrates with an existing electric tool set. Additionally, it can run off any 12- to 24-volt power source — such as a car or truck battery — using the DC clips power adaptor. It gently pushes smoke through the system in just a few minutes and takes only seconds to see results. While it is popular for a variety of plumbing applications, it is also useful in testing sewer laterals, and can clearly illustrate where a fault or leak may occur on private property. It comes with an 8-foot industrial-grade hose. Used with 1A or 2B smoke candles, it creates 4,000 or 8,000 cubic feet of smoke, respectively. The smoke candles are also sold in SealPac cans which extend shelf life. 732-251-0800; www.superiorsignal.com
