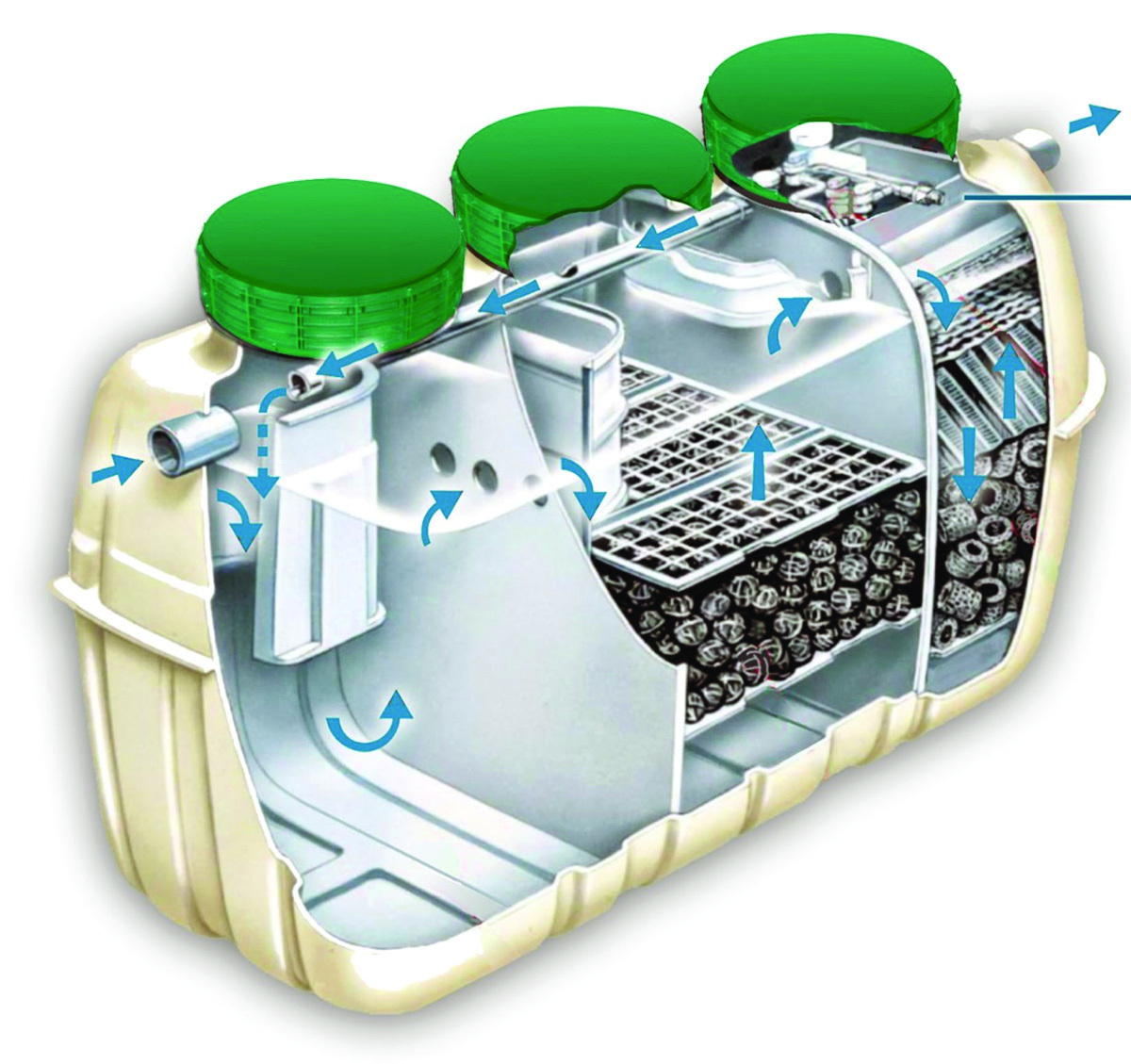

FujiClean USA’s CE model series offers a one-tank configuration, small footprint (7 by 4 feet for the smallest model), low power draw, easy plug-and-play installation, simple and efficient operations and maintenance, and consistent treatment (90-95% BOD and TSS removal). No preceding septic tank is necessary. It is NSF 40 certified, and there are no moving in-tank parts. An external air blower (FujiMAC RII) introduces oxygen to aerobic chambers and powers two internal air lift pumps, which manage sludge return and discharge of clean effluent. CEN technology provides enhanced denitrification into its standard treatment process and produces a consistently high-quality effluent (NSF 40/245 certified: 5 BOD, 6 TSS and 10 TN) from straight septic wastewater. It has all the same easy installation and maintenance features of the CE models and an optional wireless telecommunication package. 207-406-2927; www.fujicleanusa.com
Commercial Treatment Systems

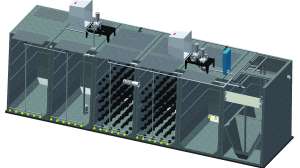

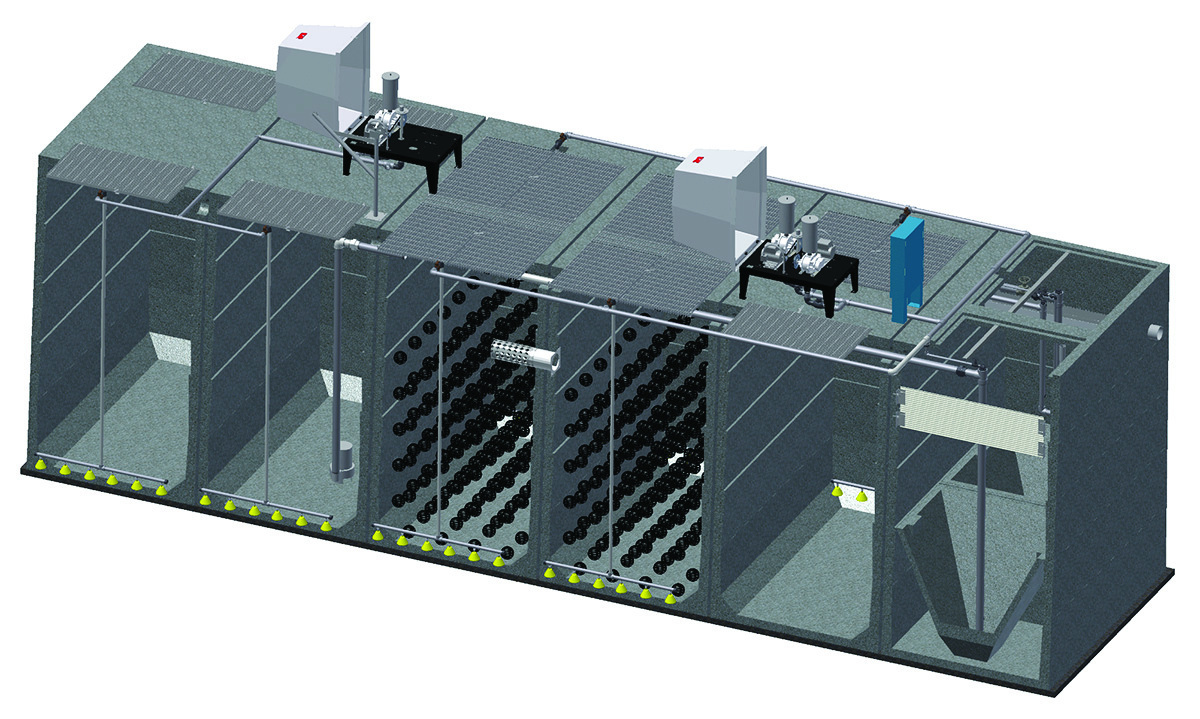

Jet Inc. Commercial Systems
Commercial wastewater treatment extended air plants and newer MBBR plants from Jet Inc. are modular, can treat varying strengths and flows from 1,500 to 300,000 gpd and allow for phase build-out. This makes it possible for convenience stores, motels, shopping centers, service stations, factories and subdivisions to be constructed far from municipal treatment options. These systems may also be used for pretreatment before discharging into central systems to reduce overall system load. The time-tested plants utilize a variety of controls and treat wastewater through an aerobic digestion process that enables microscopic living organisms to transform wastewater into a clear, odorless liquid. 800-321-6960; www.jetincorp.com

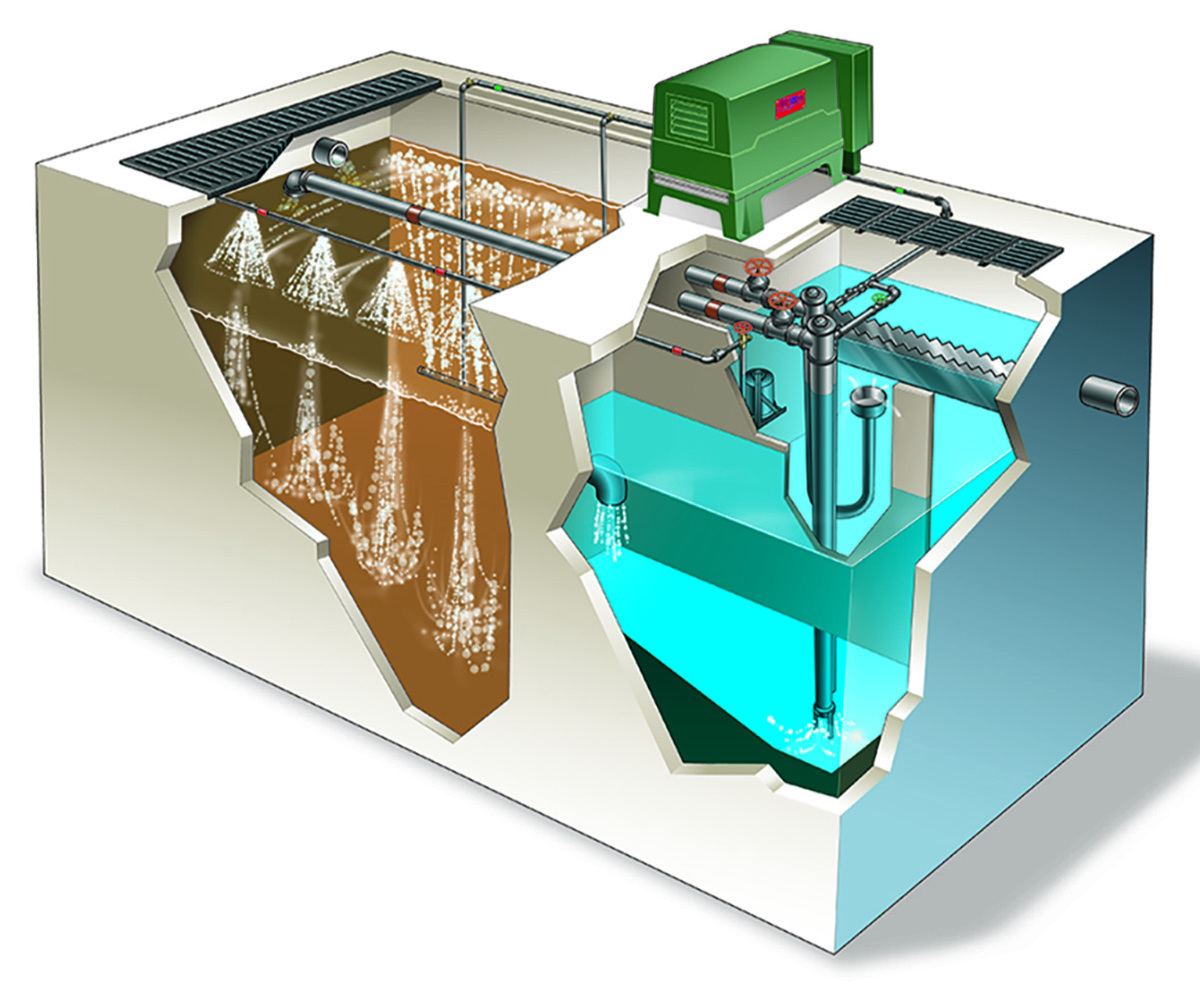

Norweco Modulair
The Modulair package wastewater treatment system from Norweco is a reliable, maintenance-free method of wastewater treatment available for commercial, industrial or small municipal applications. With system capacities ranging from 1,500 to 500,000 gpd, plants are pre-engineered to accommodate current and future treatment needs. They employ the extended aeration treatment process to quickly and efficiently oxidize organic compounds in the most cost-effective manner. Systems can be easily enlarged or modified and have the flexibility for any treatment requirement, including pretreatment, AFE, ASH, tertiary, disinfection, denitrification and phosphorus removal. Nonclog Evenair diffusers reduce plant maintenance and the Air-lift surface skimmer simplifies maintenance. Heavy-duty reinforced precast concrete tanks provide durability and long life to each plant. Systems are installed and serviced by local, licensed, factory-trained distributors. They are sold complete, including delivery, tank setting, equipment installation, startup and service. 800-667-9326; www.norweco.com
Excavation Equipment

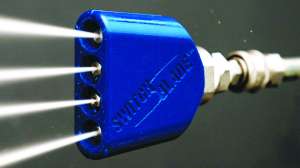

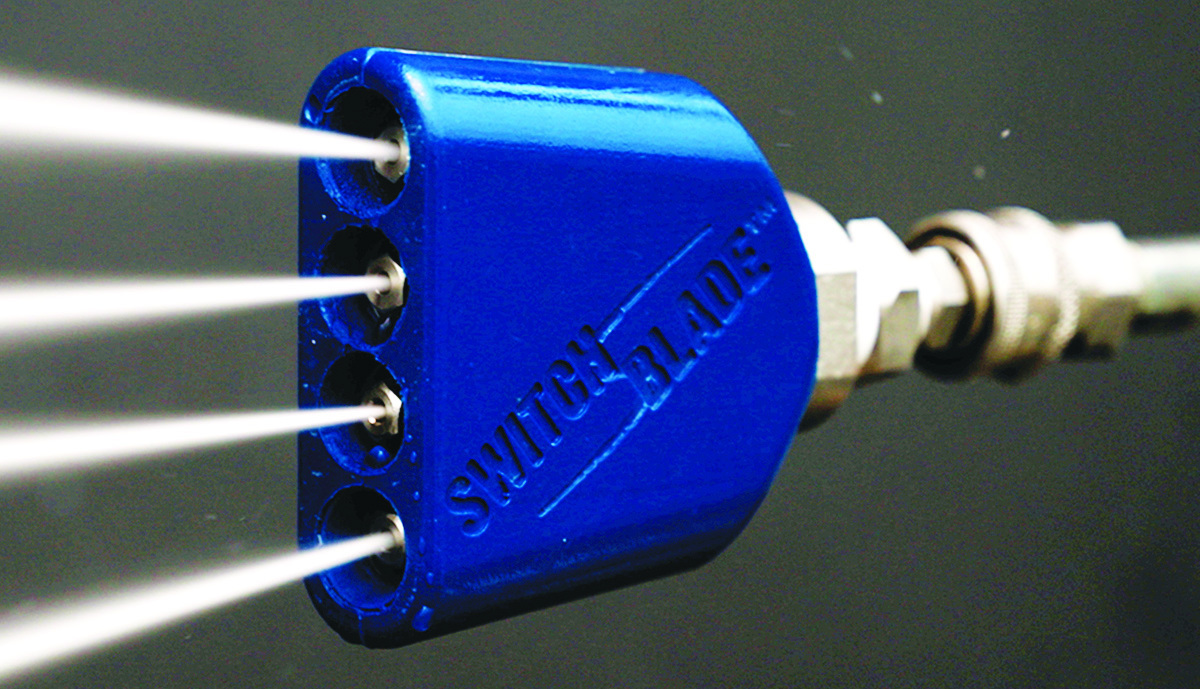

Hydra-Flex Switchblade
The Switchblade from Hydra-Flex was designed for trenching and precision digging applications with its long, linear flow pattern. Choose from one, two or four solid (0-degree) streams that provide greater impingement and allow the user to cut through soil faster — at different widths — while using dramatically less water. Use the single stream for extremely accurate and precise digging and the four-stream option to optimize efficiency. Each nozzle can be customized with individual and replaceable pills to change the flow rate on the fly. These heavy-duty, high-impact nozzles are constructed with stainless steel housings and tungsten carbide wear surfaces to withstand harsh environments and last longer. The nonconductive Hytrel coating on the nozzle body protects both the operator and sensitive underground utilities. 952-808-3640; www.hydraflexinc.com
Grease Bacteria/Chemicals

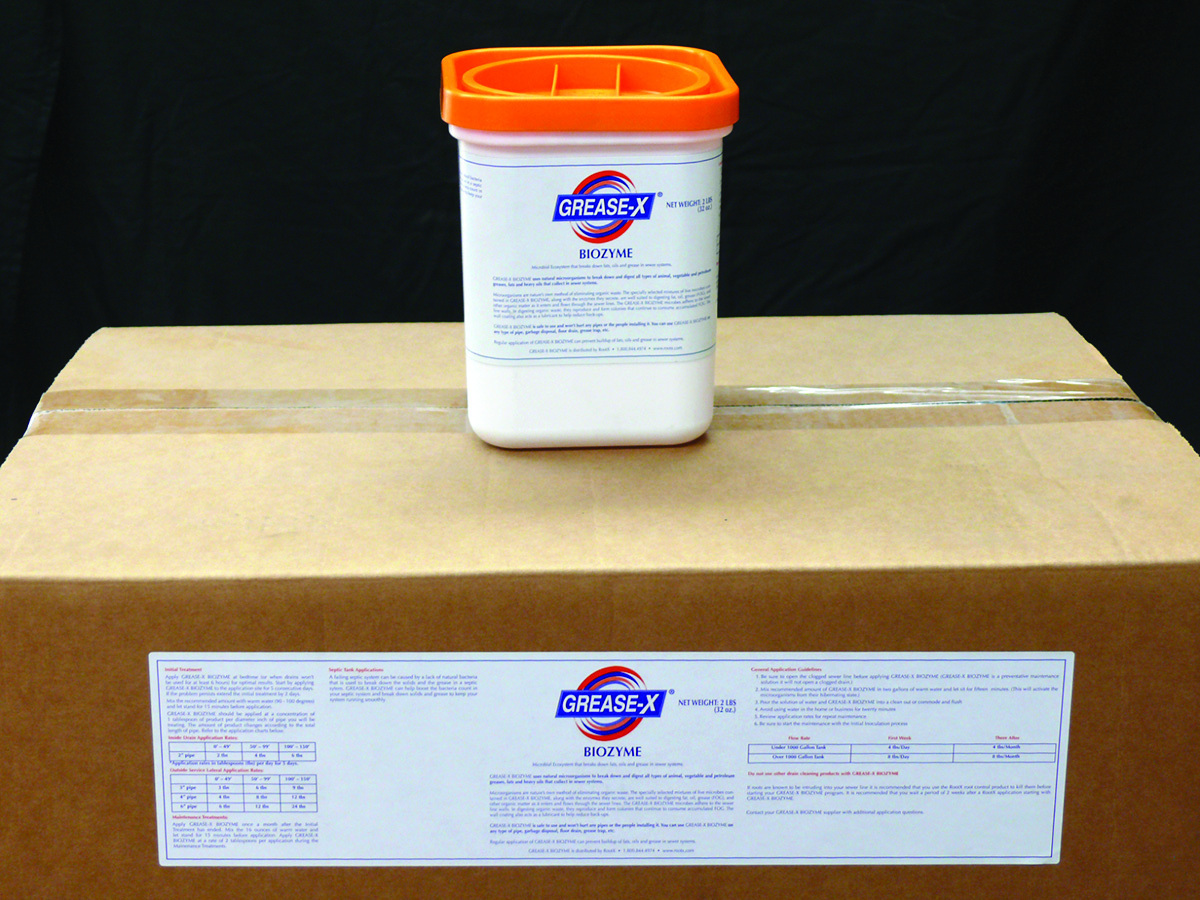

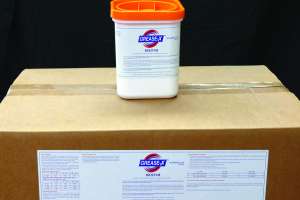

RootX Grease-X
Grease-X bioenzyme from RootX uses natural microorganisms designed to break down and digest all types of FOG that collect in sewer and septic systems. The mixtures of live microbes, along with the enzymes they secrete, are suited to digesting FOG and other organic matter as it enters and flows through the sewer lines, according to the maker. The microbes adhere to the sewer line walls. In digesting organic waste, they reproduce and form colonies that continue to consume accumulated FOG. It is safe to use and won’t hurt any type of pipes or the people installing them, and it can be used on garbage disposals, floor drain or grease traps. Regular application can help prevent the buildup of FOG. 800-844-4974; www.rootx.com
Pumps

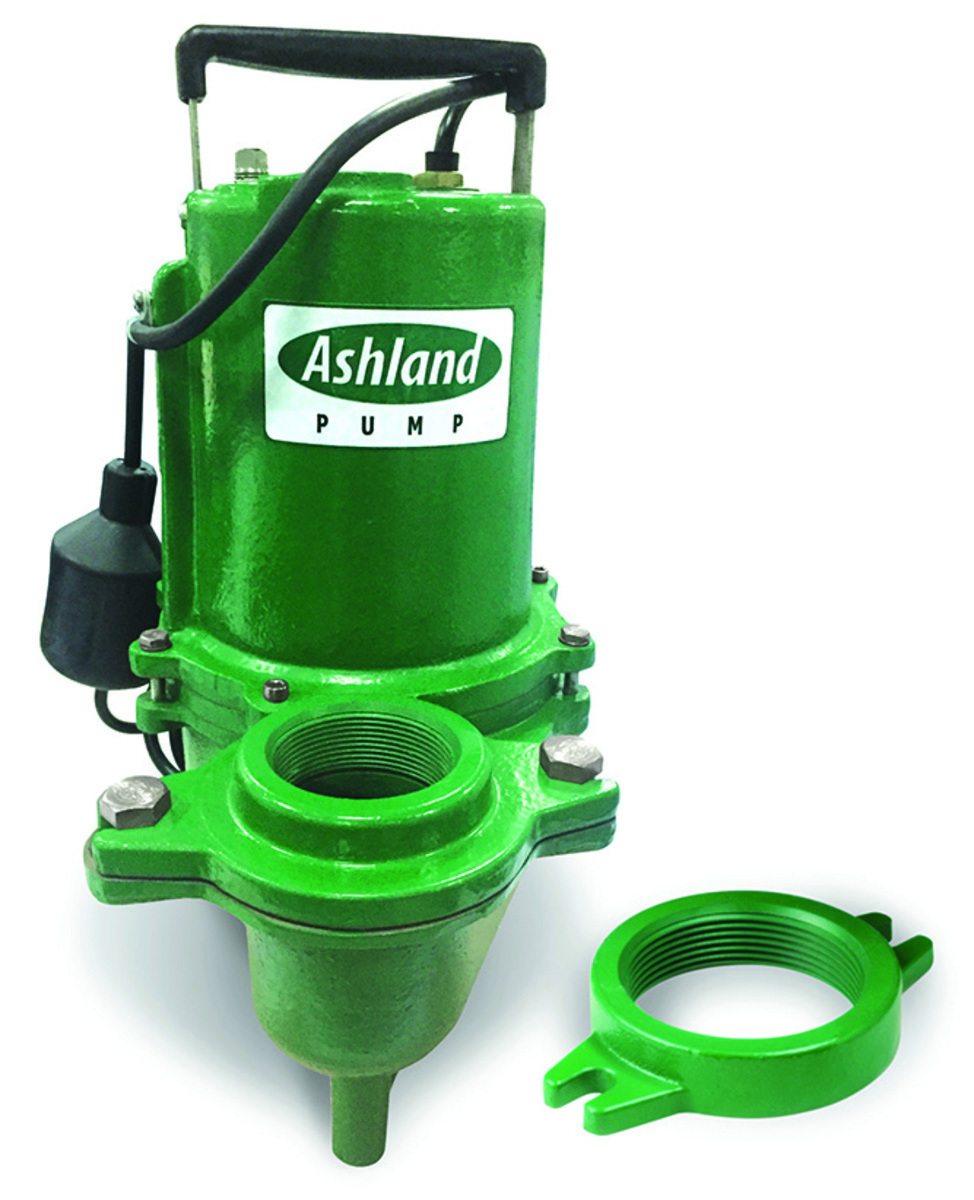

Ashland Pump SW Series
Ashland Pump’s SW40, SW50 and SW75 Series come with cast iron vortex impellers. These impellers have a nonclogging vortex design that enables better passage of materials such as wipes and rags, without compromising performance. The vortex impellers are ideal for handling modern waste streams due to their low profile and resistance to clogging. Additionally, the pumps have been upgraded to a speed of 3,450 rpm, ensuring the same level of performance as the previous two-vane design model. 855-281-6830; www.ashlandpump.com

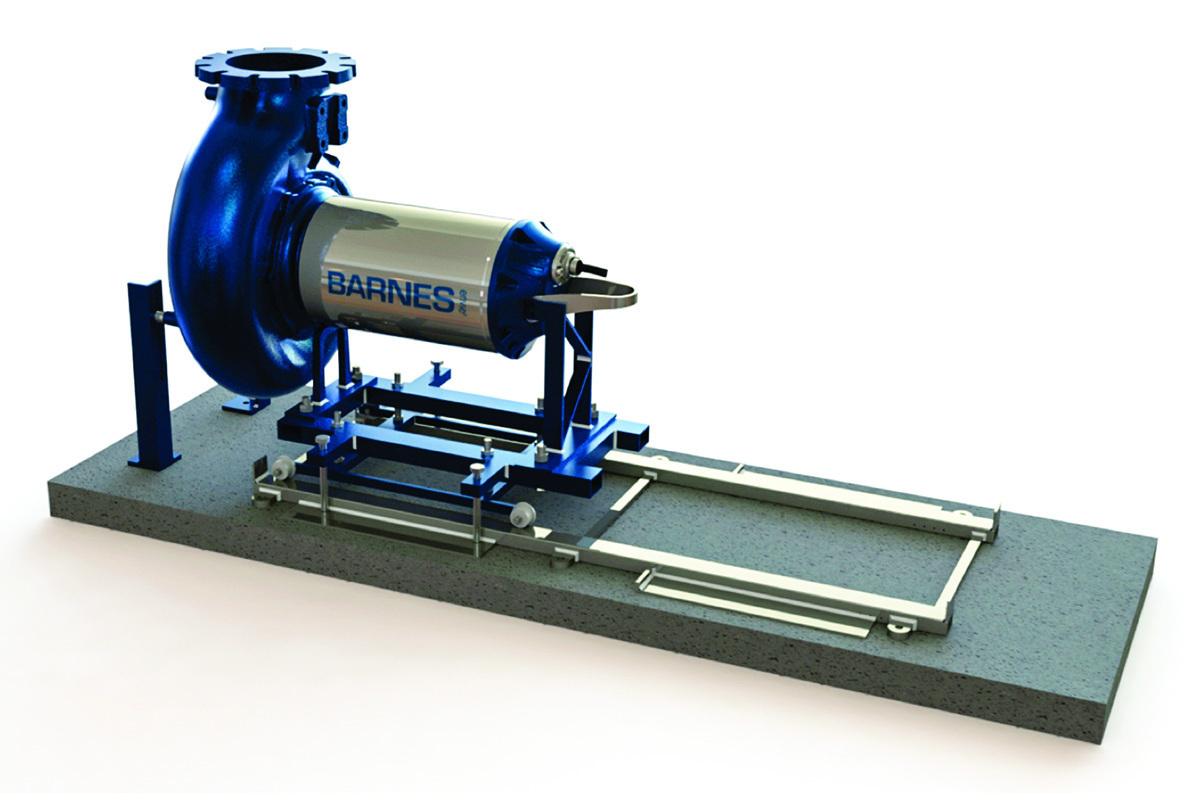

Crane Pumps &Systems envie3
The envie3 air-filled motor series dry pit submersible pump from Crane Pumps & Systems can run in wet applications and in dry pits. These pumps outfit Barnes’ and Deming’s nonclog and chopper wet ends with a premium efficient/IE3 motor that can run in both vertical and horizontal configurations. The closed-loop glycol cooling system allows for easy maintenance and installation in demanding applications. For easy serviceability, the horizontal installation options include a cart system, which creates a back pullout option as well as a fixed bracket configuration. Install horizontally for a smaller footprint. Vertical installation configurations include a metal and concrete stand that allow for 360-degree rotation for conveniently adapting to existing piping, including tangential discharge pumps. 937-214-9008; www.cranepumps.com

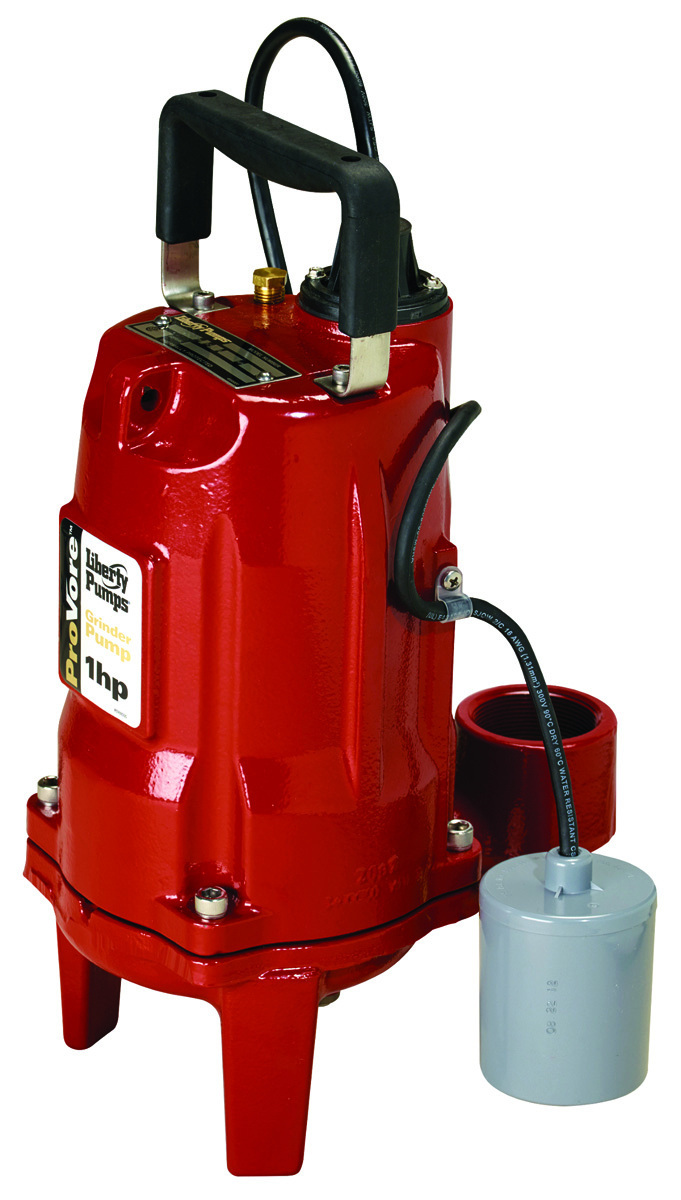

Liberty Pumps ProVore
The ProVore grinder from Liberty Pumps is designed for use in applications where addition of a bathroom or other fixtures below sewer lines requires pumping. It has the same V-Slice cutter technology used in the Omnivore Series. Powered by a 1 hp motor, this smaller grinder is designed to operate on a standard 115- or 230-volt circuit, requiring only a 20-amp breaker. No special wiring is needed. The pump comes with a 2-inch vertical-style discharge and a standard leg pattern matching the LE Series. This allows for easy retrofit into existing systems. Compact factory-assembled systems are available in simplex and duplex versions: the ProVore 380 and ProVore 680. 800-543-2550; www.libertypumps.com

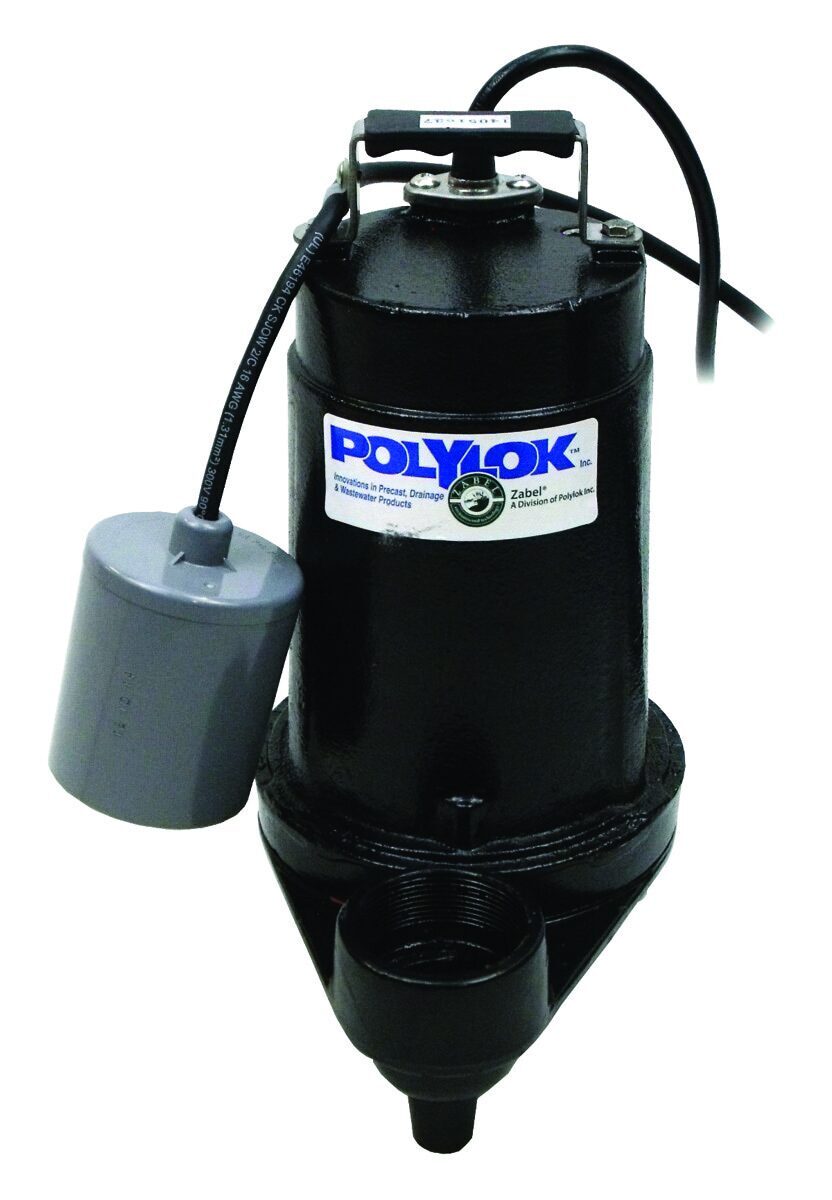

Polylok PL-CPE4A
The Polylok PL-CPE4A is a submersible, 4/10 hp, 115-volt, single-phase effluent pump with a 2-inch NPT vertical discharge. It has a maximum head of 38 feet and a maximum flow of 56 gpm. The pump is designed with a 3,450 rpm oil-filled permanent split-capacitor motor and has an amp rating of 6.6 for 115 volts, a cast iron housing and volute with a cast iron vortex impeller capable of passing 3/4-inch-diameter solids. The stainless steel shaft is supported by two single-row, oil-lubricated ball bearings. The shaft seal is an inboard design with a secondary Exclusion V seal. It has a 20-foot UL/CSA-listed power cable suitable for submersible service and fitted with a three-prong plug. The unit is supplied with an integrated clip for the included piggyback mechanical float switch and used for automatic operation. 888-765-9565; www.polylok.com

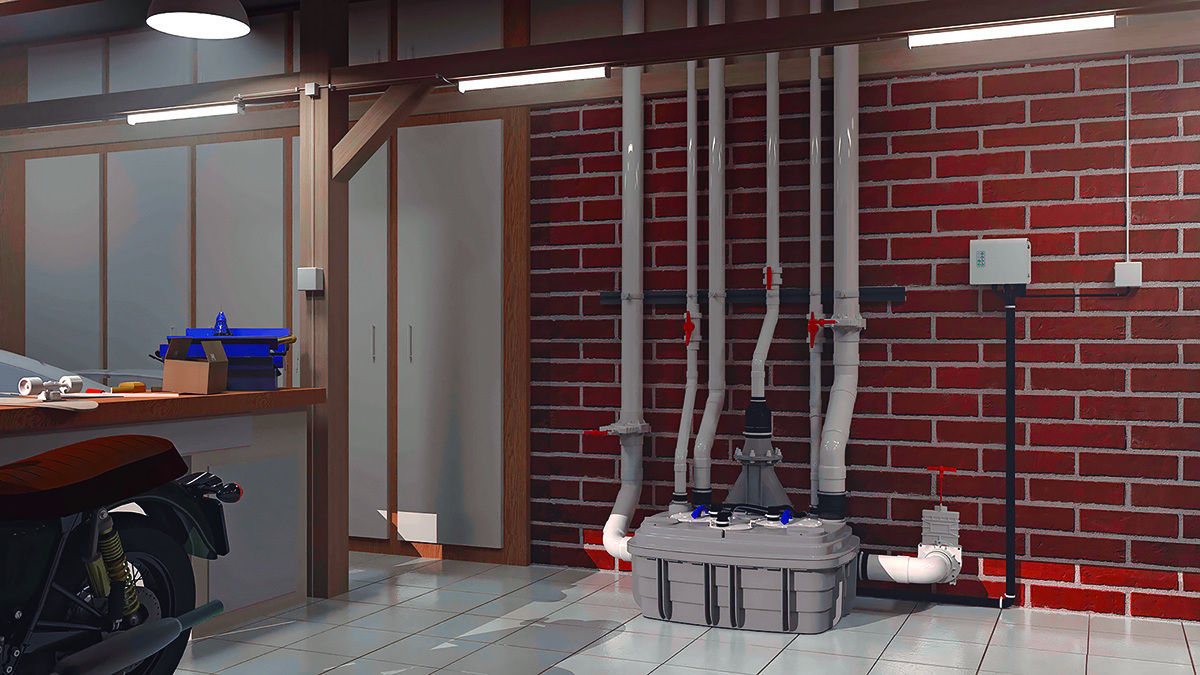

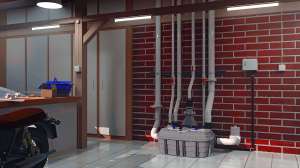

Saniflo Sanicubic 2VX
The Sanicubic 2VX lift station from Saniflo provides above-floor drainage for multiple plumbing fixtures for a commercial structure, eliminating the need for costlier and less convenient pit installations. It is an ideal solution for projects where conventional, below-floor drainage is impossible or too costly to install. Equipped with two 1.5 hp motors, the lift station is capable of discharging effluent through either 2- or 4-inch rigid pipe and offers a shut-off head of 43 feet. It employs an internal air pressure switch for automatically cycling the unit on and off. The unit also comes equipped with a wired control panel, as well as an external audible and visual LED indicator alarm in the event that a pump experiences overload or ceases to operate. Featuring easily removable circular panels on top, the IP68 enclosure permits ready access to every major component inside. 800-363-5874; www.saniflo.com

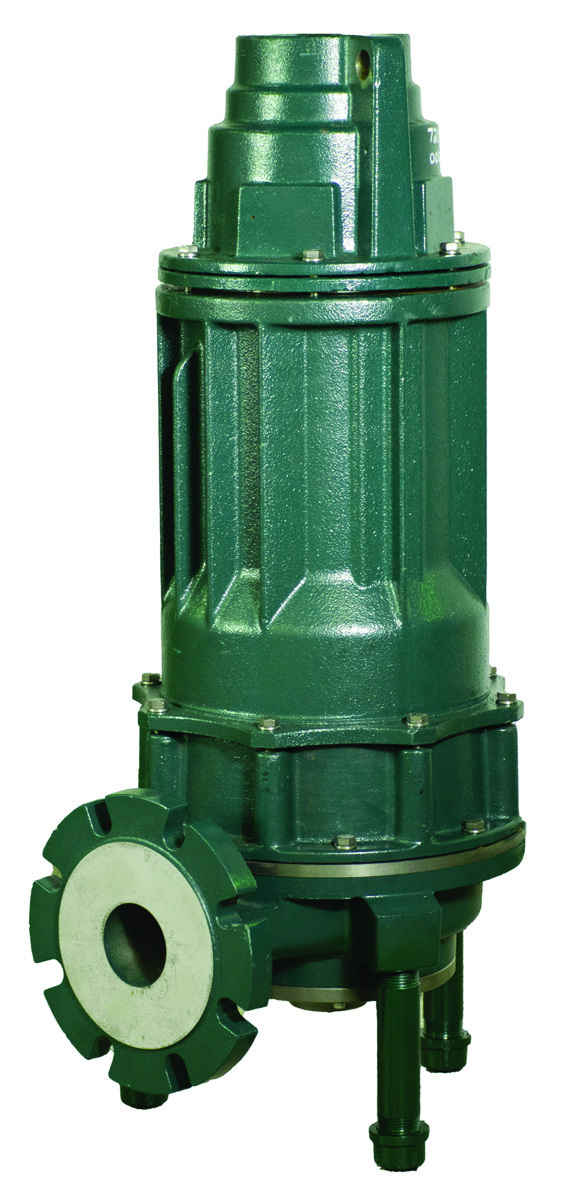

Zoeller Pump 72 HD Series
Zoeller Pump’s 10 and 15 hp 72 HD Series is an expansion to its existing grinder product offering now ranging from 1 to 15 hp. The units include a dual carbon ceramic shaft seal, moisture and thermal sensor, a Buna-N gasket to protect the 3,450 rpm motor, and Class F windings. Pumps are available in 208, 230, 460 or 575 volt three phase. The 3- or 4-inch ANSI flanged horizontal discharge allows for easy adaption to competitor grinder or solids handling rail systems. Pumping performance ranges from 250 feet at shut off and a max flow at 150 gpm at 50 feet TDH. Removable legs clear the bottom of the pump to allow debris to flow easier into the cutter assembly when used with a guide rail assembly. This assembly uses a 440 stainless steel with a Rockwell C hardness of 55-60 cutter and cutter plate in a scissor-like cutting motion that reduces solids down to 1/8 inch. 800-928-7867; www.zoellerengineered.com
Pump Controls

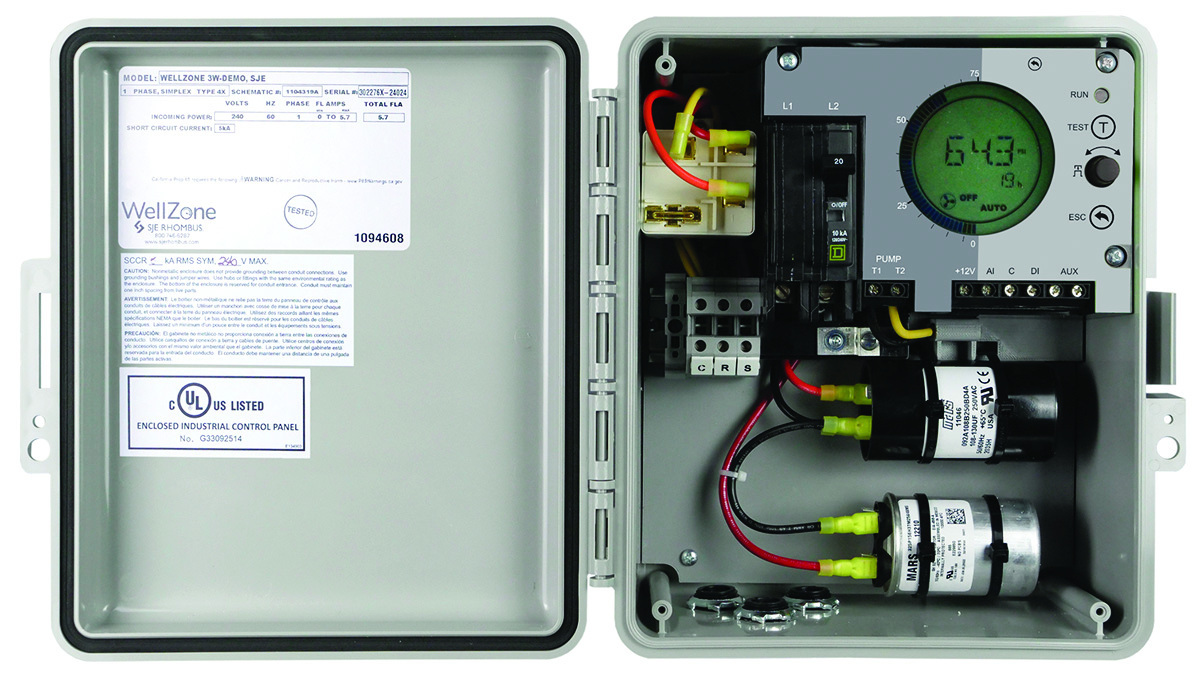

SJE Rhombus WellZone
The WellZone digital controller from SJE Rhombus provides pressure control for single-phase two-wire submersible well pump applications. It uses a 0 to 150 psi pressure transducer to monitor the discharge pressure and turns the pump on and off according to the start and stop setpoints. The LCD display is visible through the clear cover of the NEMA 4X enclosure to allow for quick view of the system pressure, run status, hours run and pump cycles. It provides pump protection against rapid cycling, low pressure, run dry, overpressure, overcurrent and undercurrent. It is longer lasting than a standard pressure switch, easy to set up and has a wide range of pressures and pumping differentials. The digital controller is UL/cUL-listed. A three-wire model is coming soon. 888-342-5753; www.sjerhombus.com
Septic System Bacteria/Chemicals

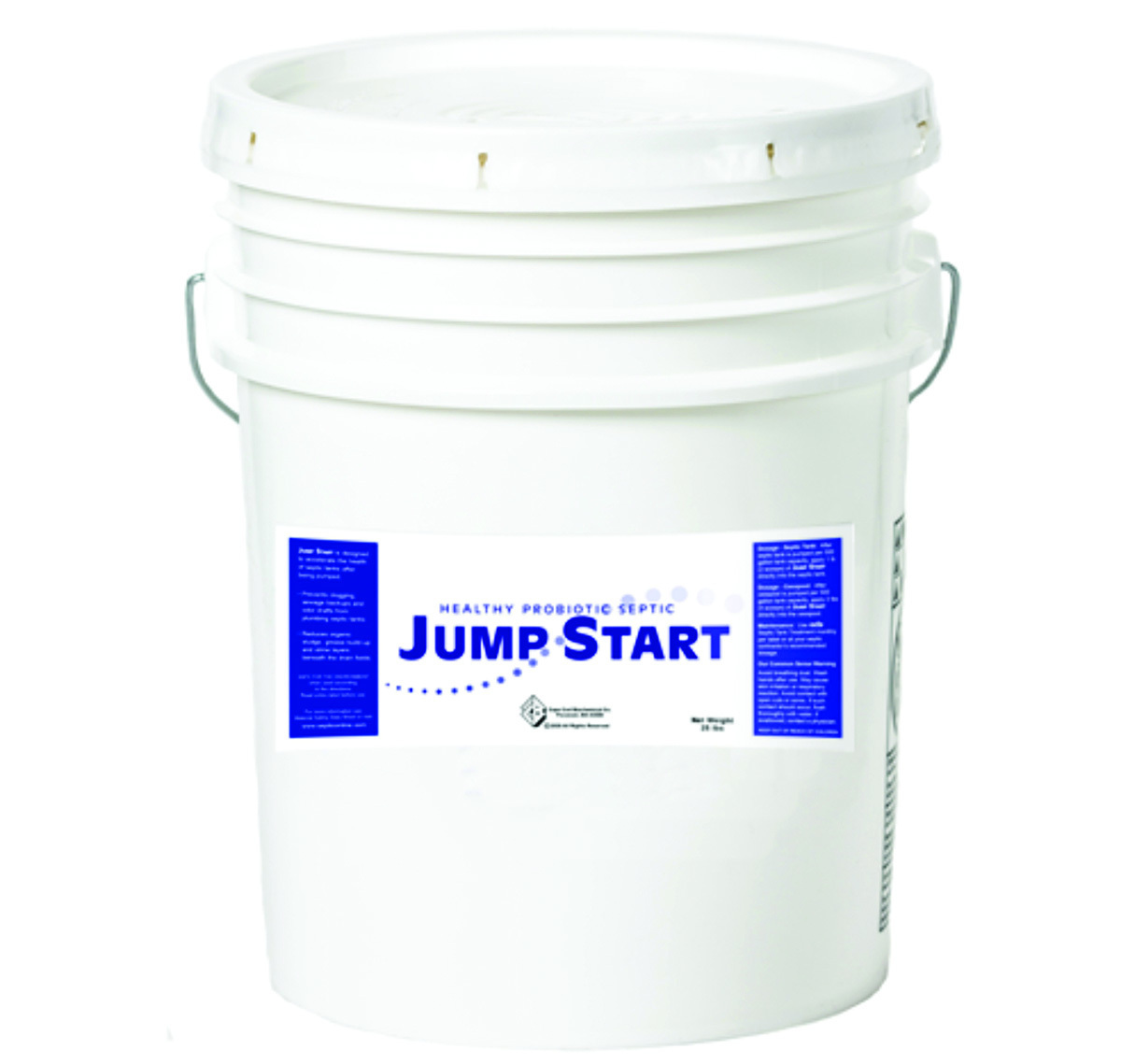

Cape Cod Biochemical Jump Start
Jump Start healthy probiotic septic starter from Cape Cod Biochemical is designed to accelerate the health of septic tanks after pumping or new installation. It prevents clogging, sewage backups and odor drafts from septic tanks, reducing organic sludge, grease buildup and slime layers beneath the drainfield, according to the maker. After the septic tank is pumped, add 1 pound to a 500-gallon tank or add 2 pounds to a 500-gallon cesspool. CCLS septic tank treatment should be used monthly per label or at the septic contractor’s recommended dosage. It is safe for the environment when used according to specifications. 800-343-8007; www.septiconline.com

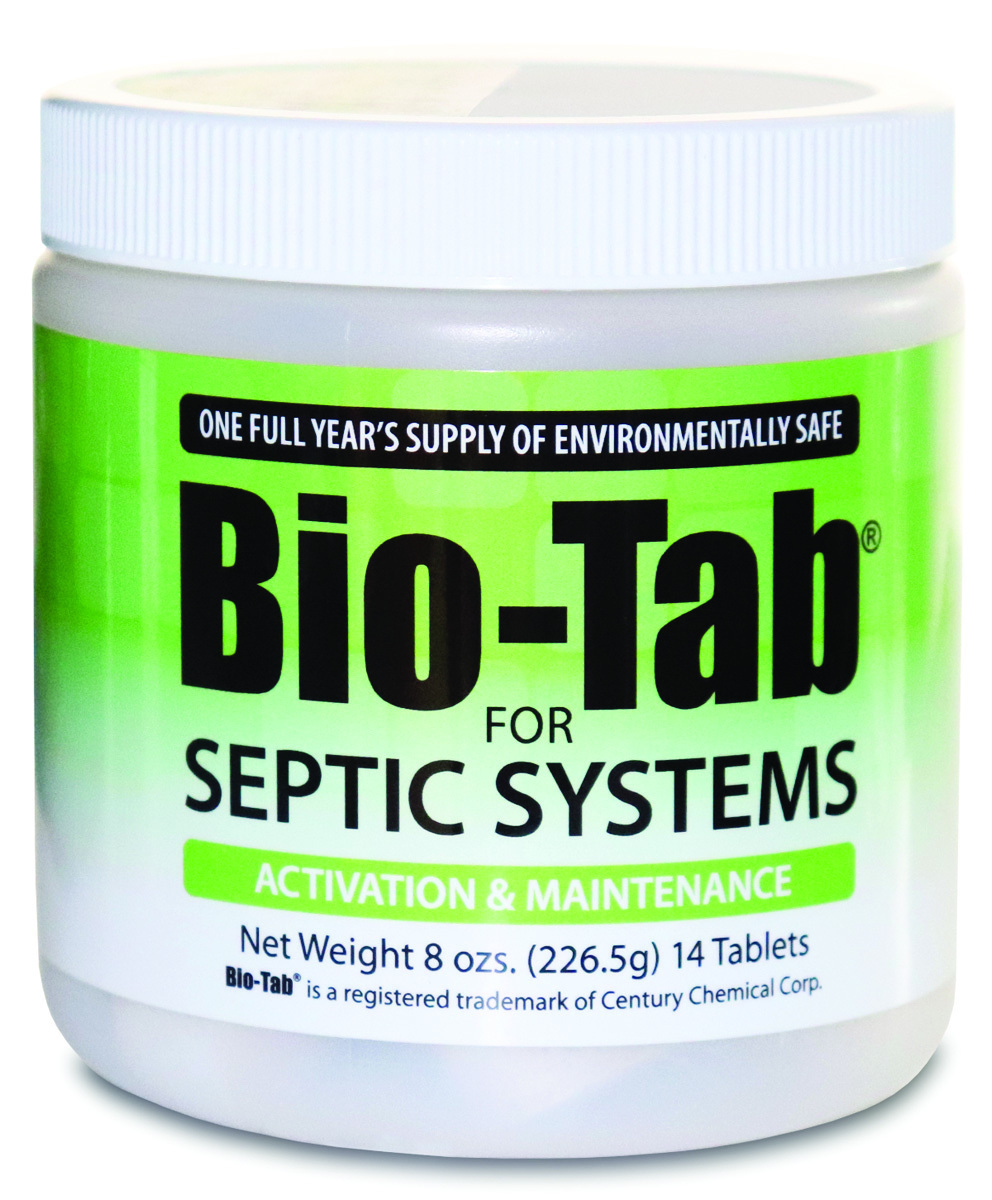

Century Chemical Bio-Tab
Bio-Tab from Century Chemical is a tablet that sinks to the bottom of septic tanks where build-up problems begin. There, self-reproducing bacteria and enzymes gradually dissolve to create a growing area of activity, digesting and liquefying organic waste — treating the entire system, including the drainfield, according to the maker. Common household chemicals such as anti-bacterial products, bleaches, detergents or a heavy presence of antibiotics can kill already-low levels of bacteria in the septic system. When this happens, waste is no longer being digested, resulting in buildups of solids that plug the system and give off offensive odors. Bio-Tab establishes itself by working from the inside out, and regular usage — combined with routine pumping — can aid and support the natural digestion of waste, helping septic systems maintain good working condition. 800-348-3505; www.bio-tab.com

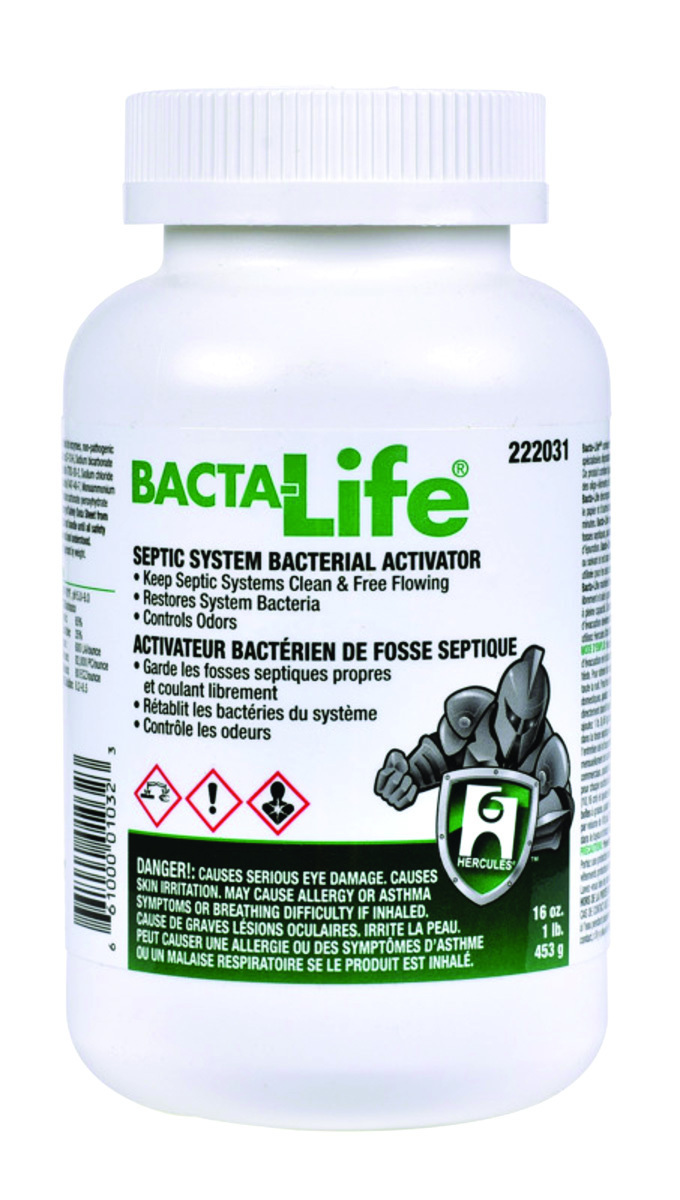

Oatey Hercules Bacta-Life
Hercules Bacta-Life from Oatey is a concentrated powdered product formulated to bacterially repopulate recently pumped septic systems. It is a blend of specialized microbes, potent enzymes, micronutrients and growth accelerators to digest grease, soap scum, starch, proteins, carbohydrates and cellulose/paper. The product disperses quickly on contact with water, and begins to break down deposits and neutralize odors. It contains no acids, caustics or solvents and is safe for use in all areas of wastewater plumbing. It is designed to enhance the natural biology of cesspools, septic tanks and drainage areas, removing heavy buildup in traps, drains, sewers and sump/lift stations when used on a regular basis, according to the maker. Regular use maintains free-flowing drains and sewers and helps keep septic systems at full activity, the company states. It can also be used in commercial grease traps, for sewer and drainline maintenance, and backyard composting. 800-321-9532; www.oatey.com
Septic Tanks

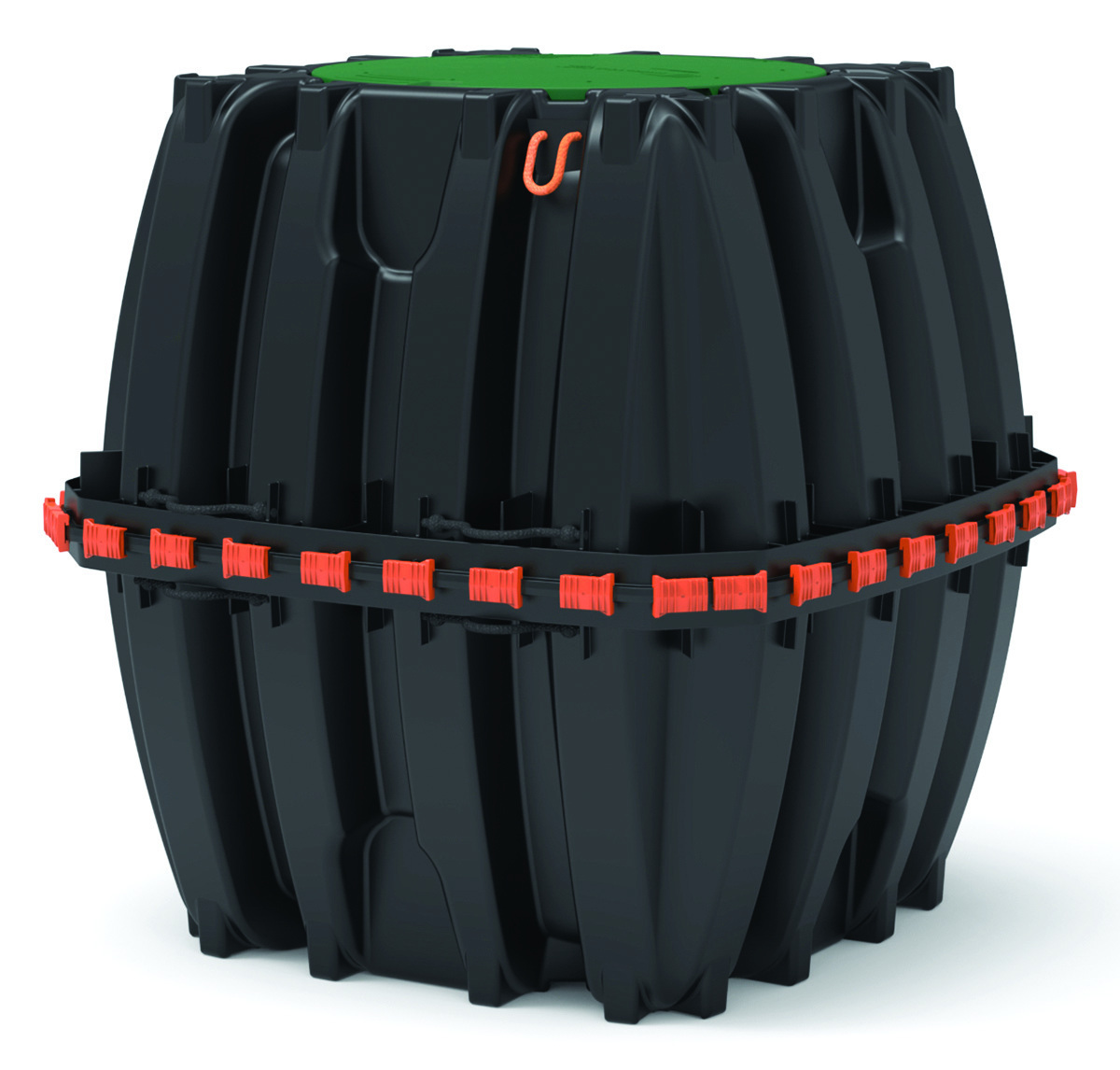

Infiltrator Water Technologies IM-300
The Infiltrator Water Technologies IM-300 lightweight and durable pump tank offers long-term strength and watertightness and is ideal for use as a pump tank or nonpotable rainwater tank. Plastic construction and inboard lifting lugs allow for easy delivery and handling, and structurally reinforced access ports eliminate distortion during installation and pumpouts. It has a full-size 24-inch manhole opening, not common on smaller pump tanks, allowing the tank to accommodate the Infiltrator Safety Star secondary safety lid system which interconnects with custom-fit EZsnap risers. It can be installed with 6 to 52 inches of cover and backfilled with suitable native soil, has no special water filling requirements, and can be pumped dry during pumpouts. Its EPDM gasket design utilizes sanitary sewer pipe industry technology to deliver a reliable watertight seal. 800-221-4436; www.infiltratorwater.com
Septic Tank Components

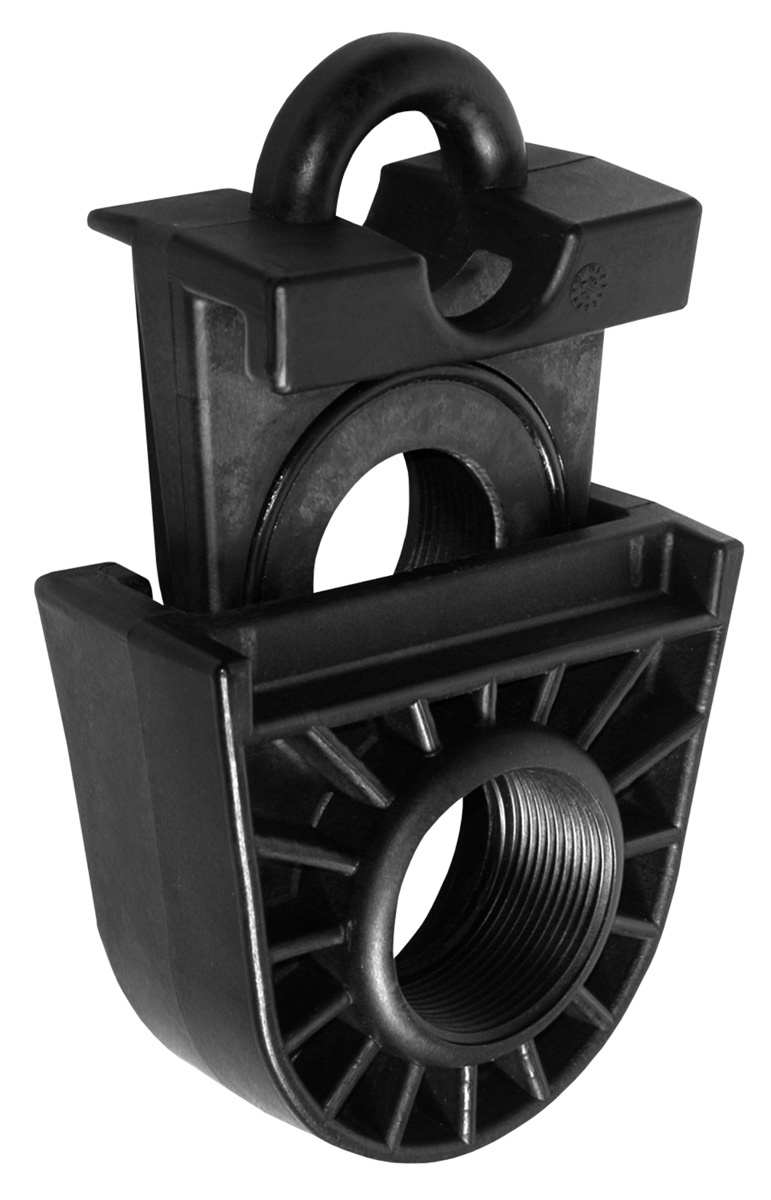

Webtrol Pumps EZ-PullQuick Disconnect
The EZ-Pull Quick Disconnect from Webtrol Pumps takes the aggravation out of disconnecting wastewater unions in septic tanks. It allows for quick removal or installation of a pump and/or floats, without having to lie on the ground and stick your head into a septic tank. It has a two-piece tapered male and female connection that seals itself into place when you slide the two pieces together. It is injection molded, glass filled thermoplastic with an O-ring that provides a watertight seal even under high head conditions. It is available in 1.25-, 1.5- and 2-inch FPT. 800-769-7867; www.webtrol.com
