Bursting
Power Mole Trenchless Solutions PD-33M
The PD-33M pipe bursting machine from Power Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations. 800-344-6653; www.powrmole.com

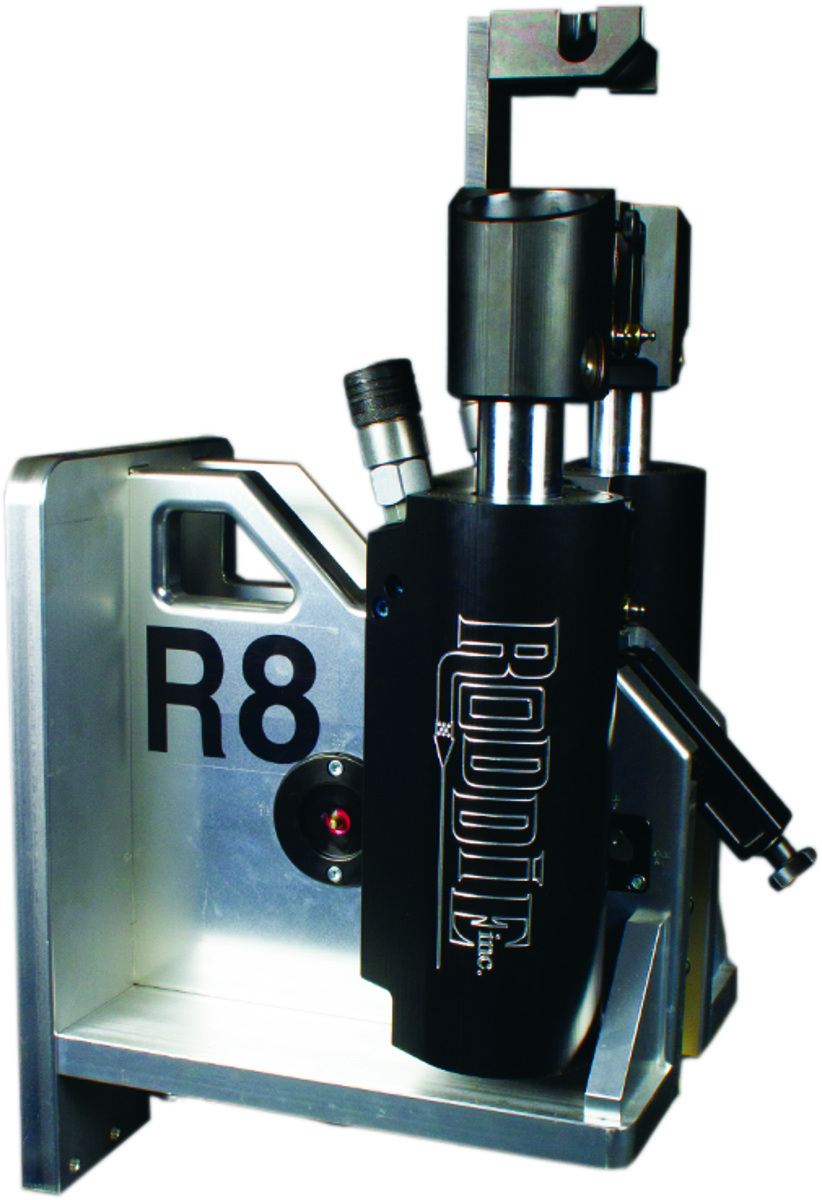

RODDIE R8
The R8 pipe bursting system from RODDIE is easy to use and lightweight, can be set up vertically or horizontally and can also be adjusted to use three different size cables. This unit can replace 1-, 2-, 3-, 4-, 6- and 8-inch pipes with ease and speed. Inexpensive cable grabbing inserts last 70 to 120 jobs, which reduces costs. High-quality tool steels on articulating bursting heads promote rare resistance for long-lasting service. The pulling rate is 8 feet per minute and is hydraulically powered from your tractor, providing a pulling force of 30 tons. The wireless remote system is reliable and has a signal strength that moves through any cellar wall. Maintaining the system is simple as the user only needs to rinse off and regrease six Zerk fittings. 888-406-3821; www.roddieunderground.com

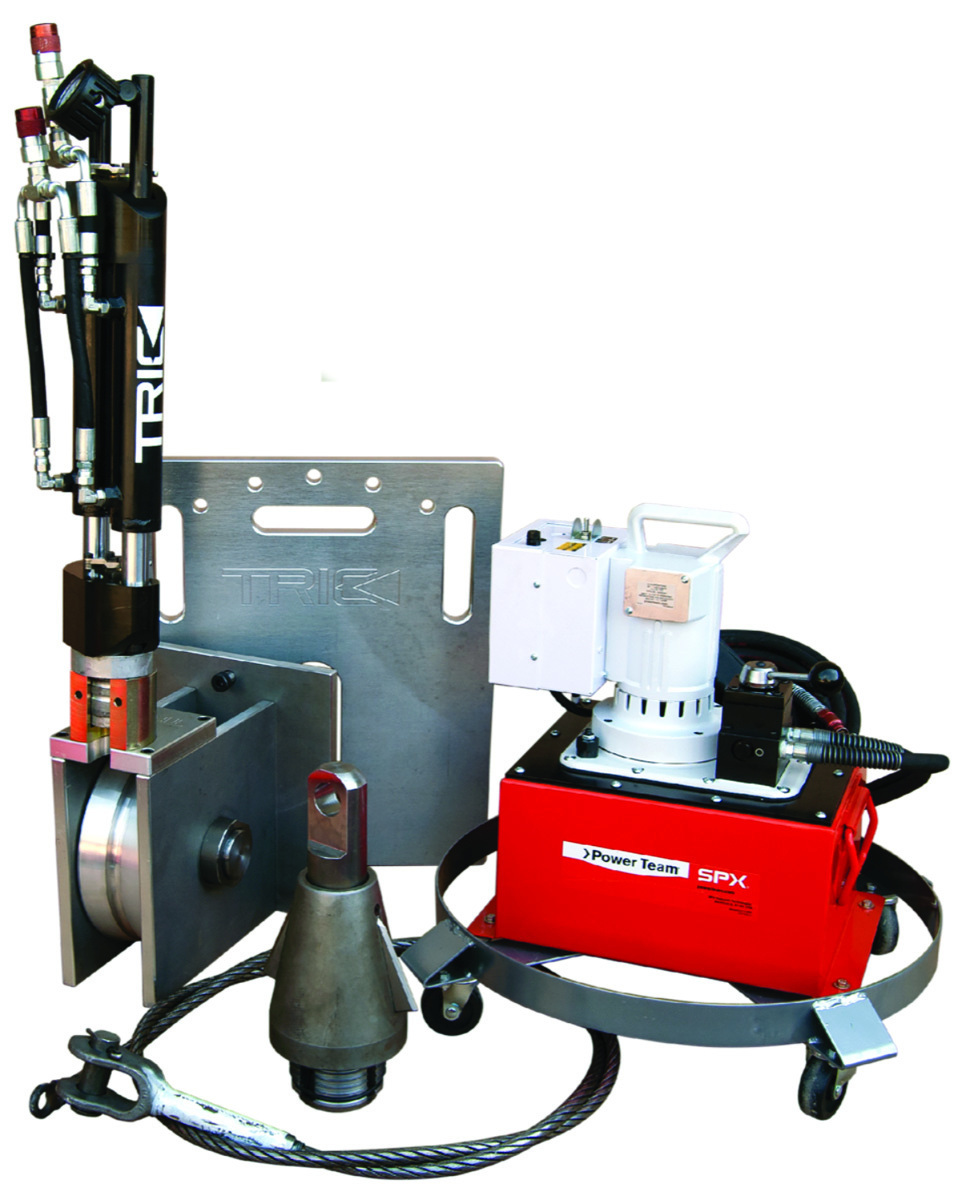

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily toward residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements and very tight spaces with limited access. 888-883-8742; www.trictools.com
CIPP Equipment
EMAGINEERED SOLUTIONS THE SHOOTER
THE SHOOTER from EMAGINEERED SOLUTIONS is a continuous air-inverter for CIPP. THE SHOOTER 12 has a range of 4 to 12 inches and up to 15 inches with the conversion kit as well as a knife gate for after the liner tail passes. It comes with either the self-lubricating hand truck or basic non-oiler cart. THE SHOOTER 24 for 15 to 24 inches is trailer-mounted and comes with a knife gate and remote operating station on the fender. An optional conversion kit expands its range from 6 to 24 inches. Additional equipment offered includes full steam packages with portable dry steam generators, steam hose, A and B stations, water cure flanges and LED UV Y adapters. 541-504-0416; www.theshootercipp.com
Flow-Liner CIPP Liners and Resins
Flow-Liner CIPP Liners and Resins provide high-performance solutions for trenchless pipe rehabilitation, offering durability and cost efficiency. The liners, available in sizes 2- to 12-inch sizes, ensure precise quality control. Custom lengths and sizes can be produced with a quick turnaround to meet unique project needs. Resins are designed to pair seamlessly with the liners, with high-strength 100% epoxy for lasting adhesion. Together, they create a durable, joint-free barrier that is ideal for sewer and drainage systems. Contractors benefit from reliable, cost-effective materials that minimize downtime while delivering proven results. They make pipe repair efficient and dependable, offering a trusted solution to extend pipeline life without excavation. 800-348-0020; www.flow-liner.com

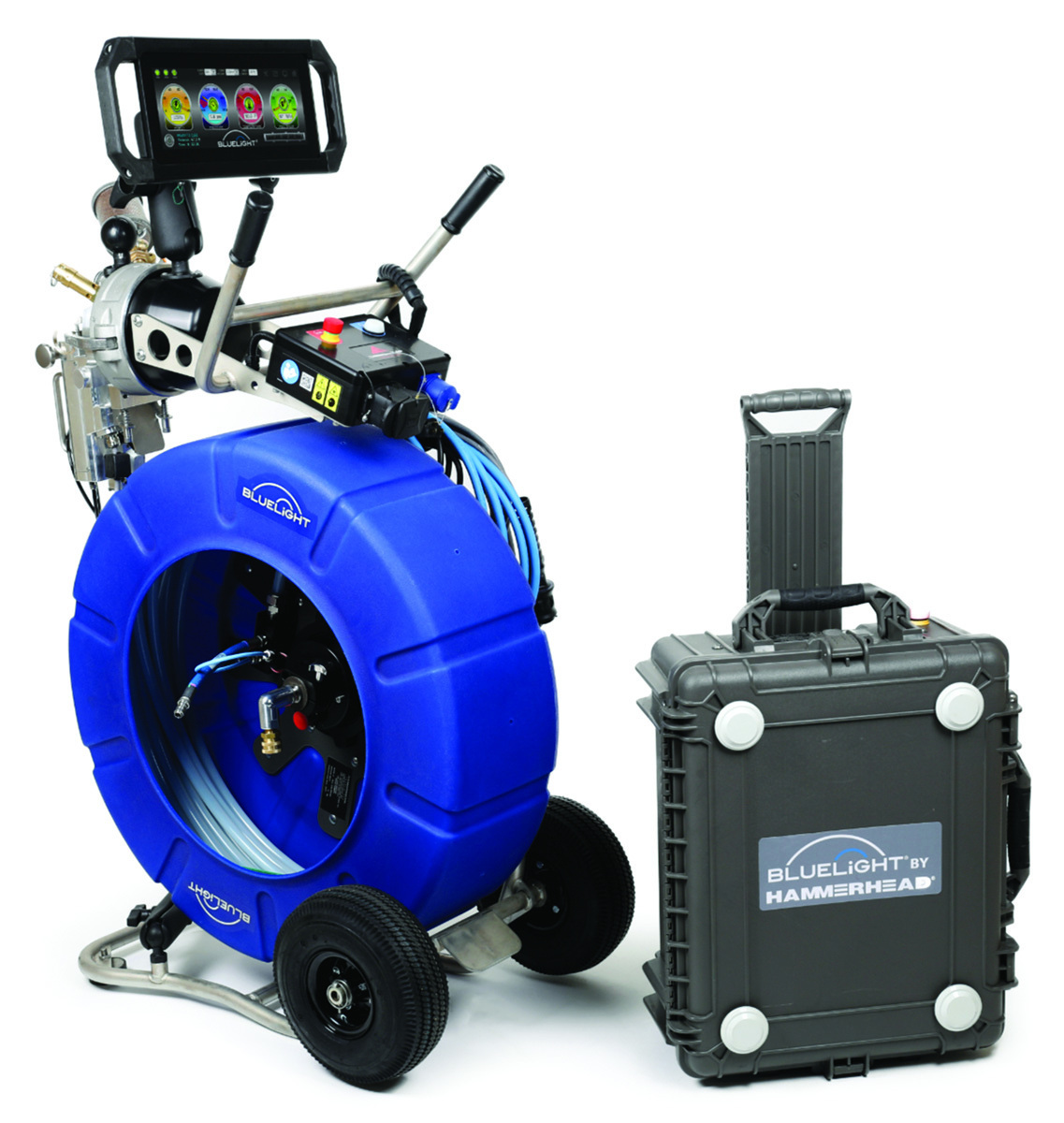

HammerHead Trenchless Bluelight LED
The Bluelight LED CIPP lining system for laterals and small drainpipes from HammerHead Trenchless uses a specially formulated resin that only cures under light in the blue wavelength, giving installers a significantly longer working time between liner wet-out and curing. Once installed, the automated curing system pulls the LED light head through the liner, curing the resin almost instantly — up to five times faster than other methods. Instead of waiting hours for the liner to cure, a 50-foot sewer line could be fully cured in under 10 minutes. 800-331-6653; www.hammerheadtrenchless.com

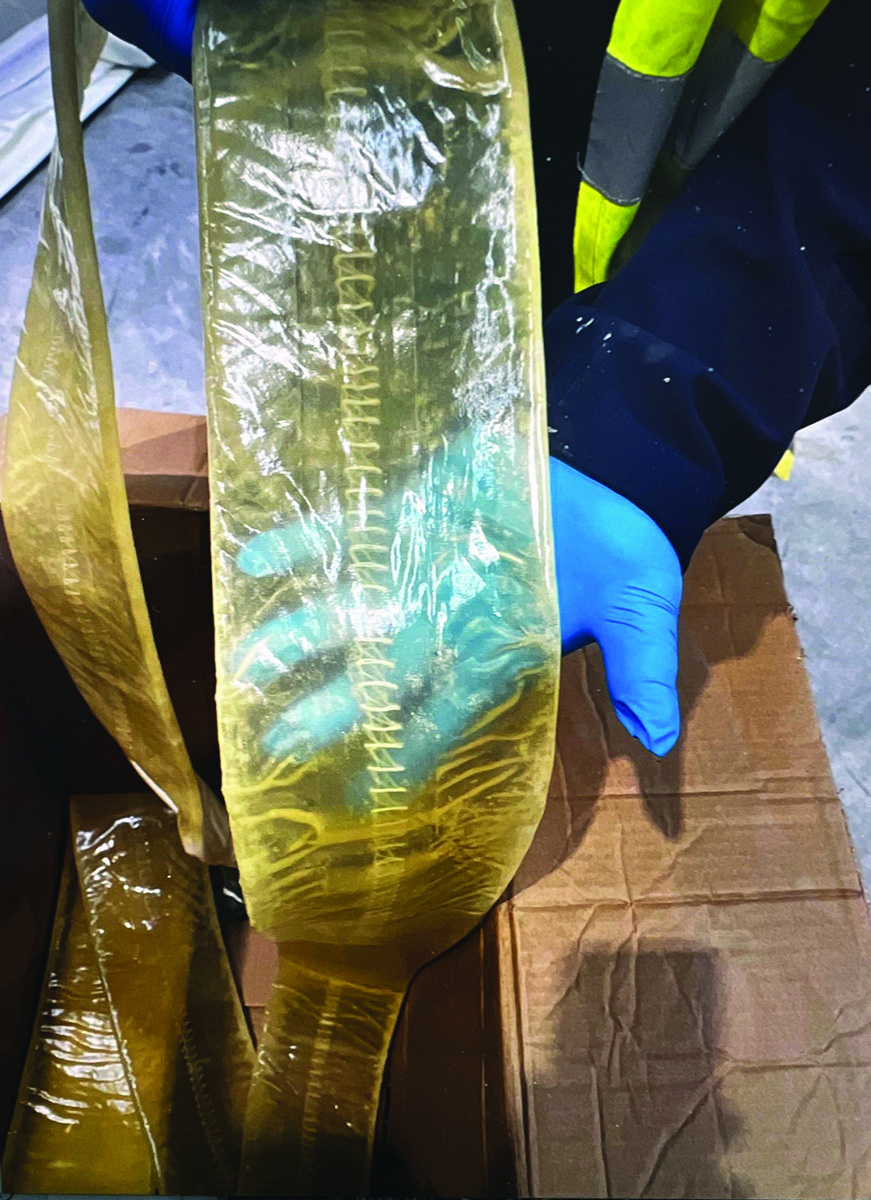

MaxLiner GhostLiner
GhostLiner CIPP liner from MaxLiner becomes transparent during wet-out and reduces LED light-cure times without sacrificing strength. It offers a faster and higher quality cure due to transparency once saturated and negotiates pipe bends up to 45 degrees. It is a uniquely manufactured synthetic fiber felt with a TPU coating designed to maximize LED light-cure capabilities. Tube forming and seam bonding are achieved by an overlocking chain stitched seam with an extruded taped joint, creating a high-performance impermeable liner designed for sweeping bends up to 45 degrees and very minimal stretch. 877-426-5948; www.maxlinerusa.com

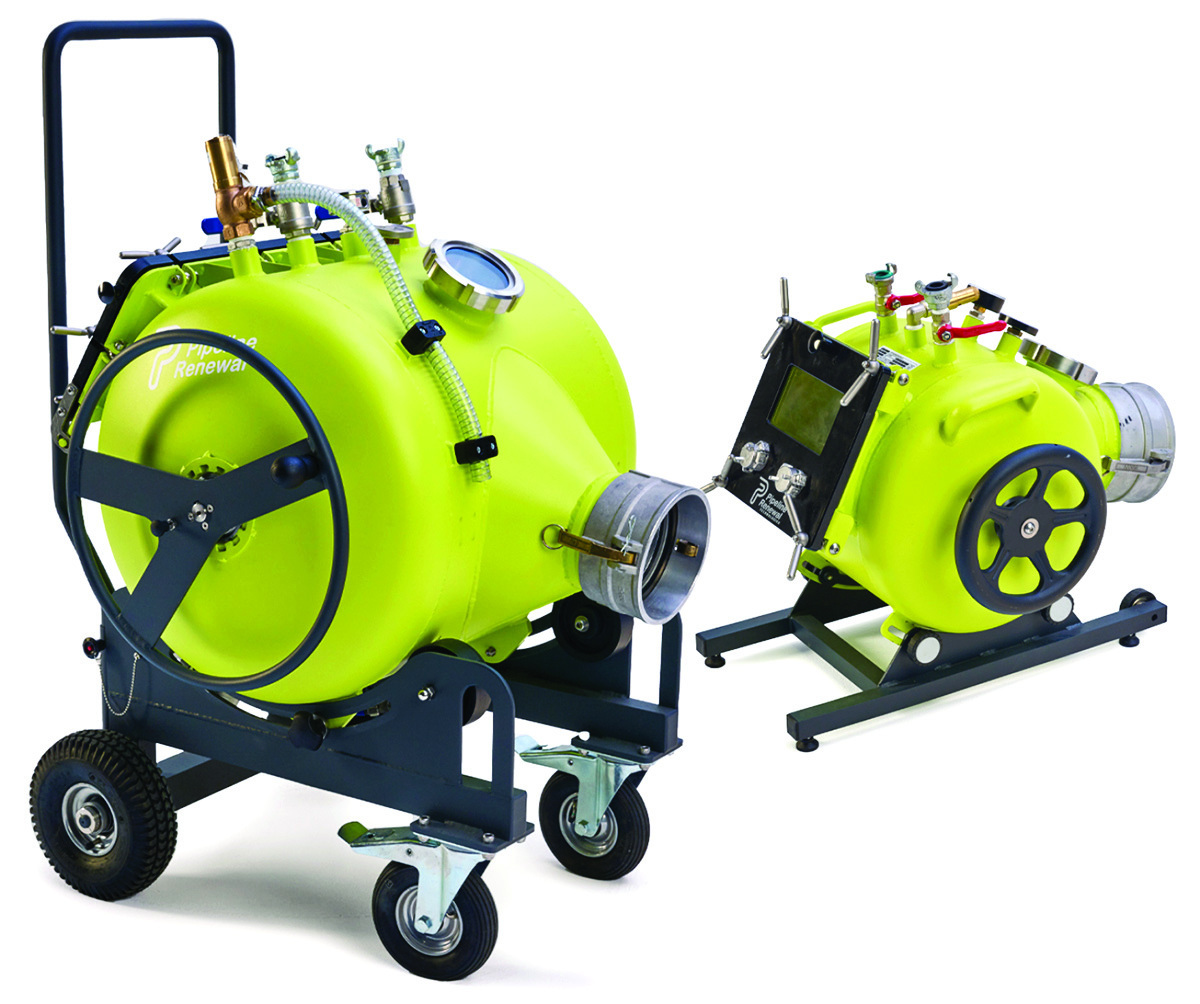

Pipeline Renewal Technologies CIPP Inversion Drums
CIPP Inversion Drums from Pipeline Renewal Technologies are designed to be versatile, highly portable and user-friendly. Multiple sizes offer compatibility with many sizes of liner. The large drum can easily handle up to a 12-inch liner on its own and can shoot larger sizes and unlimited lengths with an attachment. All drums may be used for UV cure, steam, hot-water or ambient cure methods, and have a camlock coupling for easy nozzle exchange. Other features include wide access doors, corrosion-resistant aluminum construction, built-in wheels and tool-free tilt adjustment. 866-936-8476; www.pipelinert.com
Excavating
Ditch Witch MT164
Built to help contractors easily create a clean, narrow trench in one pass, the Ditch Witch MT164 microtrencher attachment offers maximum compact cable installation performance. Equipped with a standard hydraulic plunge and option to offset the frame, the MT164 provides variable depth control and allows contractors to cut right up next to a curb. It can trench up to 2 inches wide by 16 inches deep to cut deep enough to get through a standard-sized curb. It can also be set up for a push or pull application depending on the job site. The microtrencher’s compact footprint provides increased flexibility with minimal disruption to surrounding infrastructure in urban areas. 580-336-4402; www.ditchwitch.com
Hydra-Flex Ripsaw HD
The Ripsaw HD from Hydra-Flex is designed for the hydroexcavation industry. It is built to handle any digging application and offers a safe, efficient solution for locating underground utilities. Its front stream continuously rotates to create an 18-degree cone of coverage, which allows for daylighting without the risk of damage to utilities. Flow-straightening technology ensures all water particles follow a smooth, streamlined path. This delivers a powerful impact force that completes tasks faster and uses less water. Built with a heavy-duty coating, stainless steel housing and tungsten carbide wear surfaces, the nozzle’s durable components withstand harsh conditions, including frost, shale and rocky soil. It is repairable in the field in about 10 minutes to extend its life span. 952-808-3640; www.hydraflexinc.com
Fittings

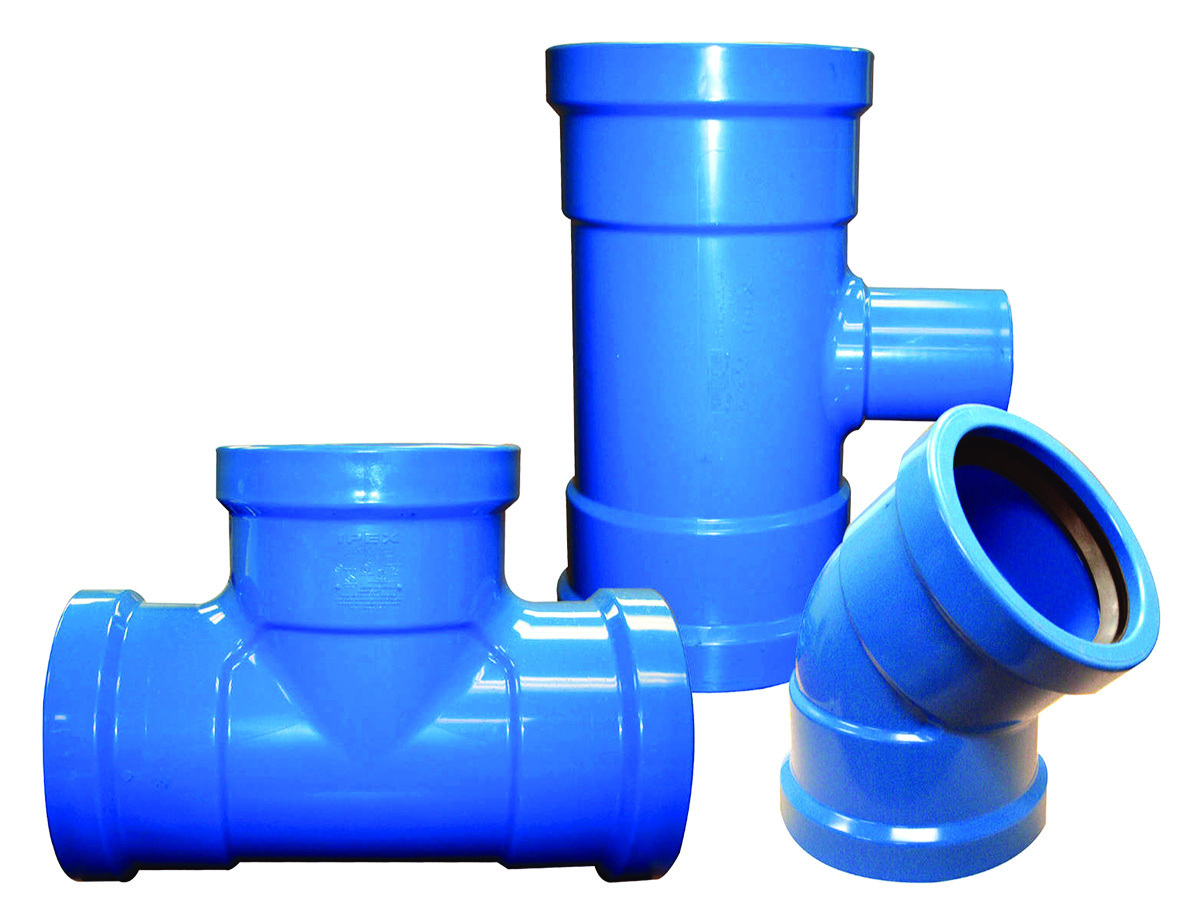

IPEX Blue Brute PVC Fittings
Blue Brute PVC Fittings from IPEX are designed for durability in pressure applications, featuring a thicker bell and injection-molded walls up to 125% thicker than DR18 for exceptional strength. Available in sizes up to 12 inches, larger fittings are custom-fabricated with an added fiberglass reinforcement layer for extra durability. Engineered to create tight joints, the fittings withstand pressures three times higher than the pipe’s pressure class. The smooth interior surface prevents buildup, promoting superior water quality and optimal flow. Made from noncorroding PVC, these fittings resist rust and corrosion in aggressive soils, eliminating the need for expensive protective measures. Tested to exceed industry standards, they come with standard gaskets for cast-iron-sized PVC pipe and optional transition gaskets for IPS-sized pipe. 289-881-0120; www.ipexna.com

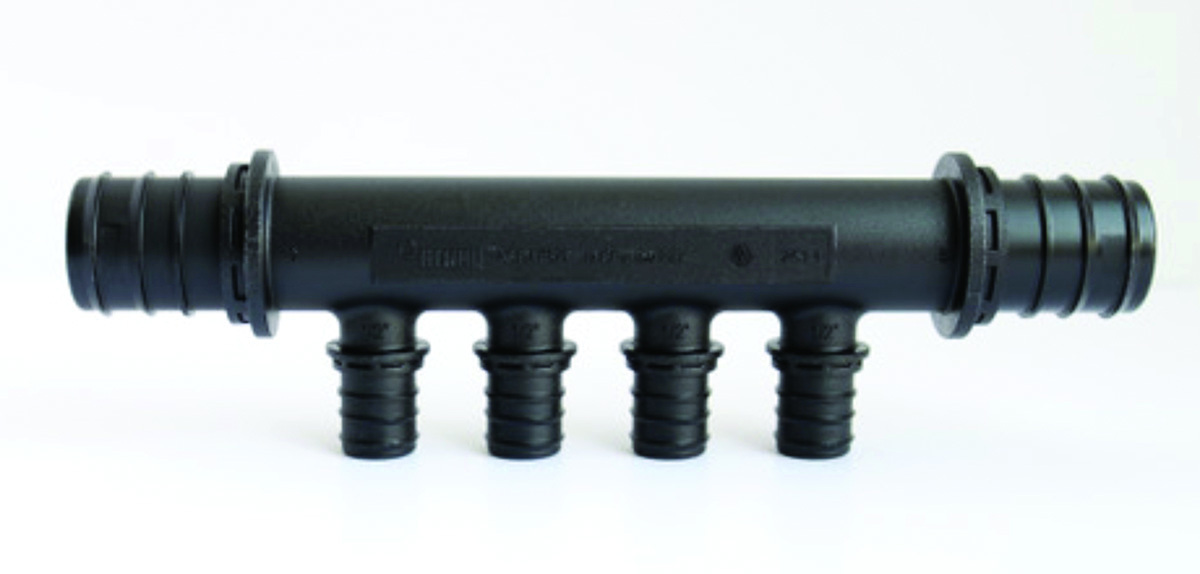

REHAU EVERLOC+
The REHAU EVERLOC+ compression-sleeve fitting line has been growing to help plumbers stay on schedule, ace tricky installations and avoid rework in even more projects. The system now includes seven EVERLOC+ copper press adapters, 12 EVERLOC+ CPVC adapters, nine EVERLOC+ polymer multiport tees and 22 EVERLOC+ polymer tees and couplings. 800-247-9445; www.na.rehau.com

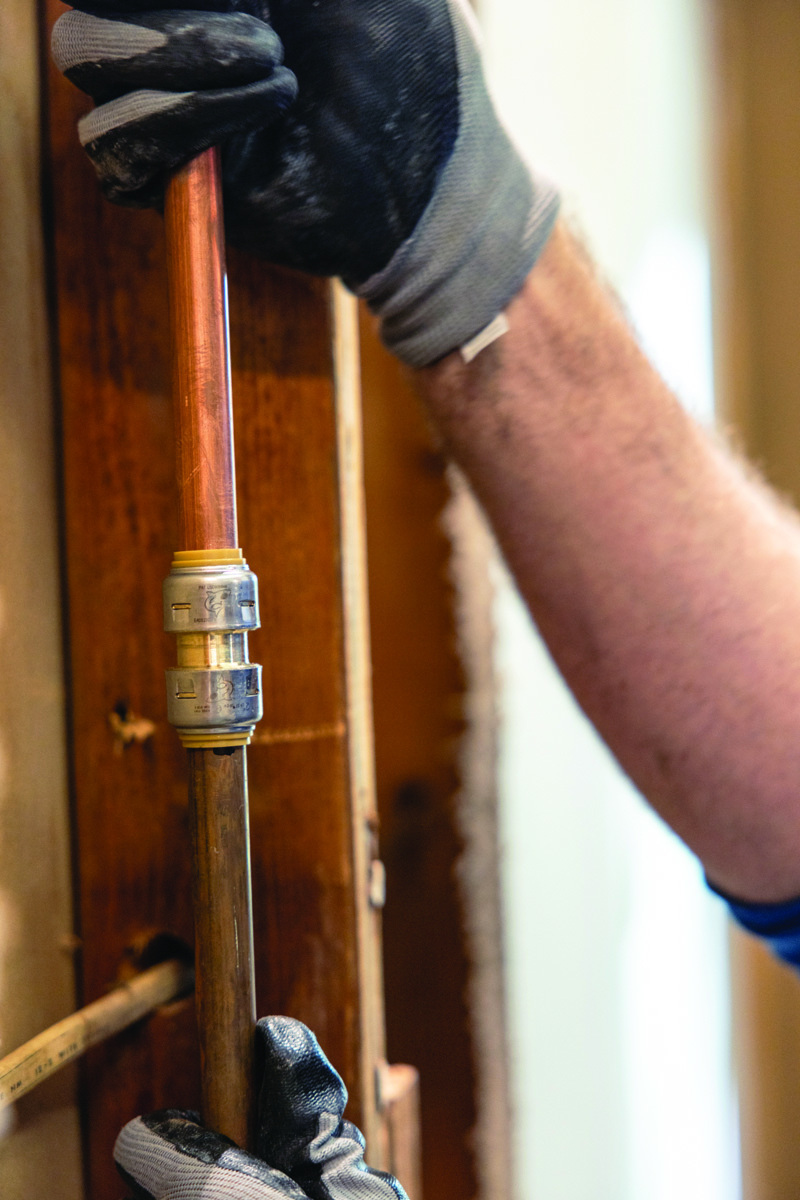

SharkBite (RWC) Max
Max push-to-connect fittings from SharkBite (RWC) can help quickly fix burst pipes, making emergency pipe repairs faster and stronger than ever. Re-engineered and enhanced, the fittings build on the brand’s push-to-connect technology while adding a higher pressure threshold to withstand double the burst pressure. The re-engineered fitting body lets you insert piping using half the insertion effort. A stainless steel collar adds double the strength and durability. Ideal for leak repairs, the slip and transition fittings are compatible with PEX, copper, CPVC, polybutylene, PVC and HDPE pipe, and can be installed in wet lines. 877-700-4242; www.sharkbite.com
Pipe Relining Equipment

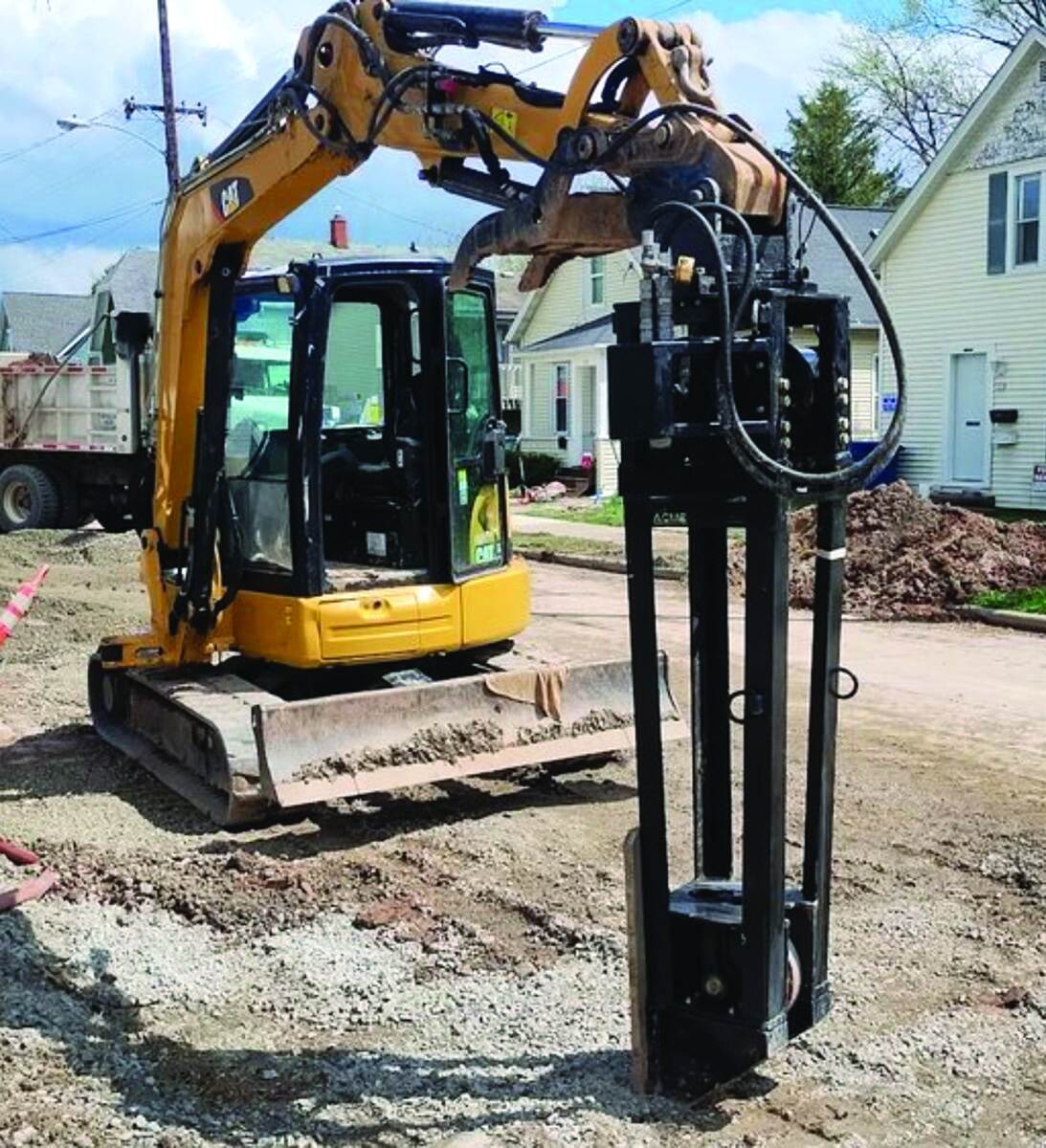

ACME Trenchless Pipe Winch
The ACME Trenchless Pipe Winch makes trenchless pipe pulling quick, and routinely easy. It delivers the pulling power needed — 20,000 pounds breakout force — applied to MAX 7/16 pulling cables which have a minimum rated breakpoint of 24,000 pounds. The pulling cables are reusable, and tensioned pulling cable remains inside the confines of the winch frame. It attaches to a compact excavator or backhoe via a quick coupler and will dispatch to the access pit at any approach angle, allowing for the preservation of the original bury depth of the existing waterline. It works with lead, galvanized, copper and plastic piping. 920-376-4222; www.acmetrenchless.com

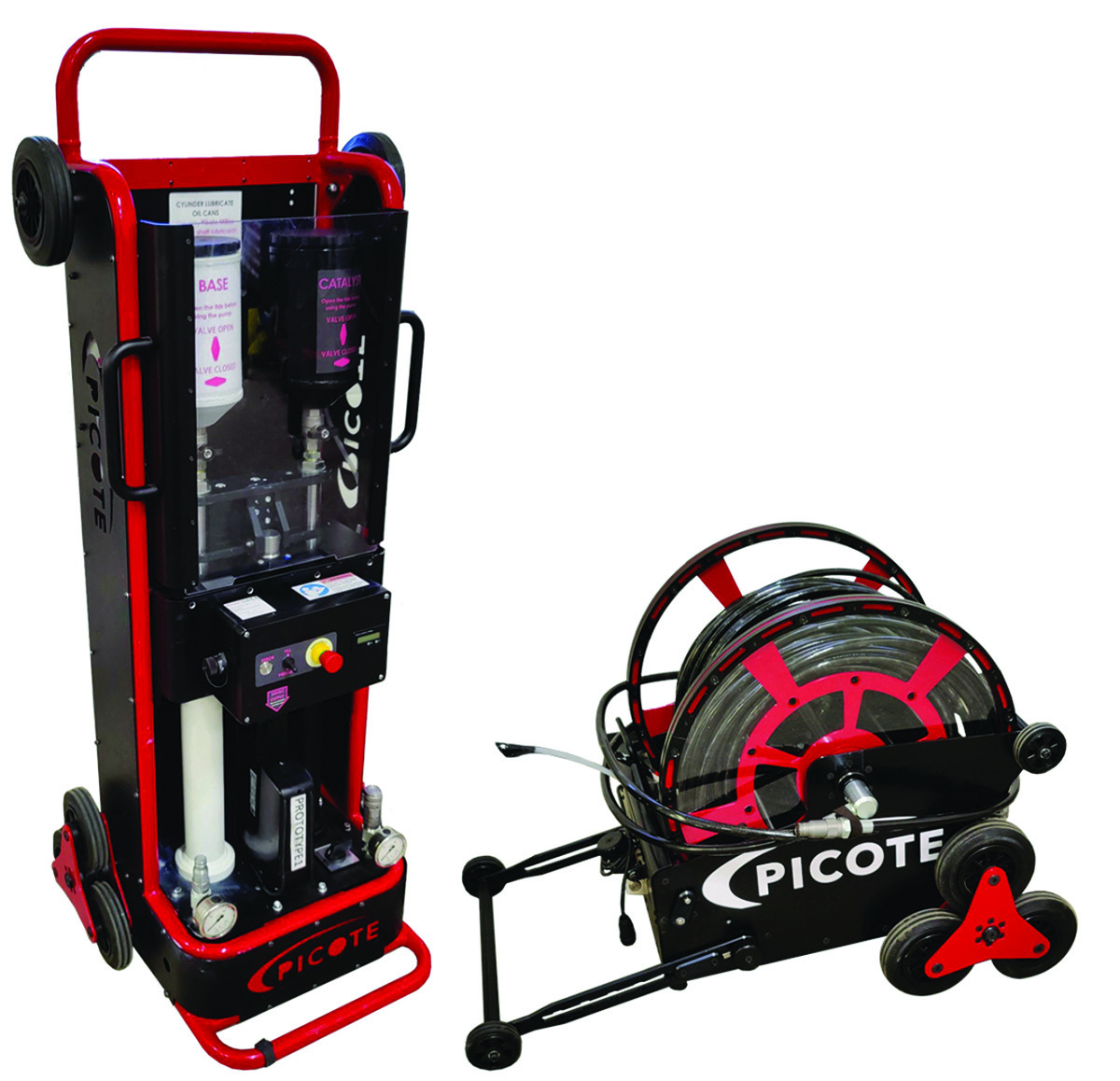

Picote Xpress Brush Coating System
The Picote Xpress Brush Coating System provides a solution for refurbishing pipes ranging from 1 1/4 to 12 inches in diameter, boasting rapid curing times, zero waste and quick setup providing savings in both cost and time. Used in conjunction with Picote Millers, the heart of the system is the Xpress Coating Pump featuring dual hydraulic resin cylinders for the new 1-1, single color epoxy. It has a built-in extended life battery and internal resin heater providing several hours of working time. The system also includes a motorized delivery hose reel with 131 feet of delivery hose, allowing for easier setup, movement and storage. The Xpress Epoxy is applied at approximately 1 mm thickness per layer, and curing time is as low as an hour between coats, resulting in a minimal number of coats needed, little time between coats and a quick return to service. 864-940-0088; www.picotegroup.com
Warrior Trenchless Solutions Thermoform
Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest quality work possible. 716-601-7760; www.thermoformliner.com
Reinstatement Cutter
CUES Currahee Cutters 2.0
Currahee Cutters 2.0 from CUES provide a number of solutions for pipe inspection and rehabilitation — from clearing blockages, debris, protruding laterals and roots to reinstating laterals in a CIPP liner. The cutters function in a range of 5.25- through 12-inch pipe, are equally effective in CIPP or fold-and-form liners and can be installed on a K2 truck-mounted cutter system. The system performs optimally using 1,000 to 1,500 feet of cable and is operated with the CUES gamepad controller. 800-327-7791; www.cuesinc.com
Trenchless Point/Spot Repair

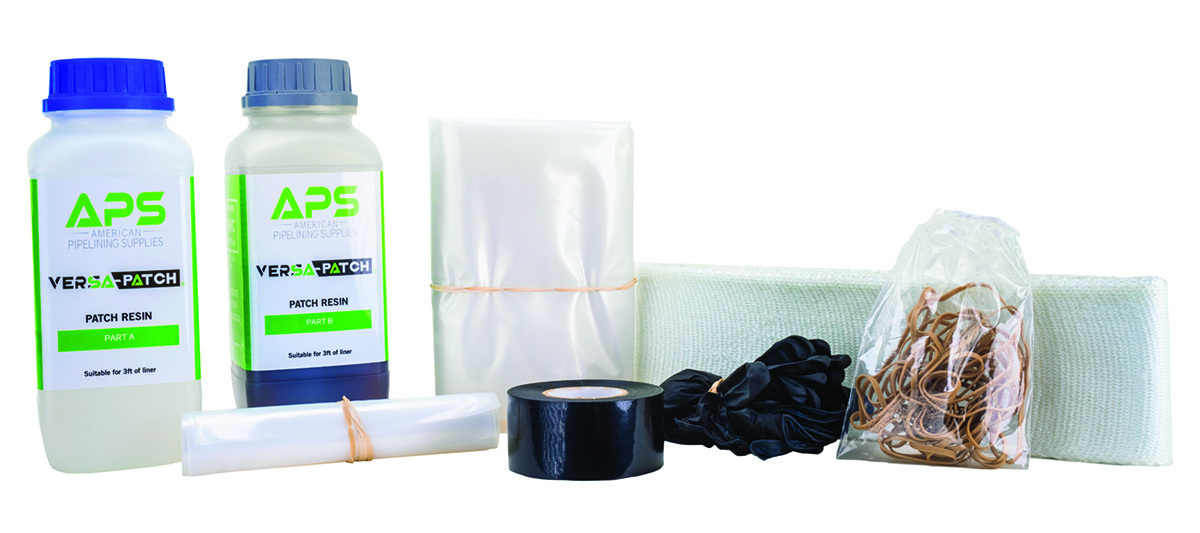

American Pipelining Supplies Versa-Patch
The Versa-Patch point repair patching system from American Pipelining Supplies features locking pushrods and reusable packers that expand from the center outward, eliminating wrinkles and ensuring a seamless finish every time. Elastic bands allow for repositioning after inflation, reducing waste and enhancing efficiency. Available in 3- and 6-foot lengths, it easily handles bends, transitions, P-traps and damaged pipes, making it the go-to solution for diverse pipe conditions. With a low cost of entry and a fast return on investment — often from a single job — it offers a profitable pathway to CIPP repairs without the complexity or expense of full-length lining systems. 888-258-9359; www.americanpipeliningsupplies.com
