Experience fast, reliable and, above all, smart light curing with BRAWO Magnavity SX and BRAWO Pico SX. The innovative and unique LED heads allow simultaneous insertion with inversion of the liner. Curing is thus carried out immediately after installation of the liner, without the need for additional insertion of the eel.
Guaranteed with the usual installation safety and high quality from BRAWO Tech, and the technology fulfills all OSHA work safety requirements.

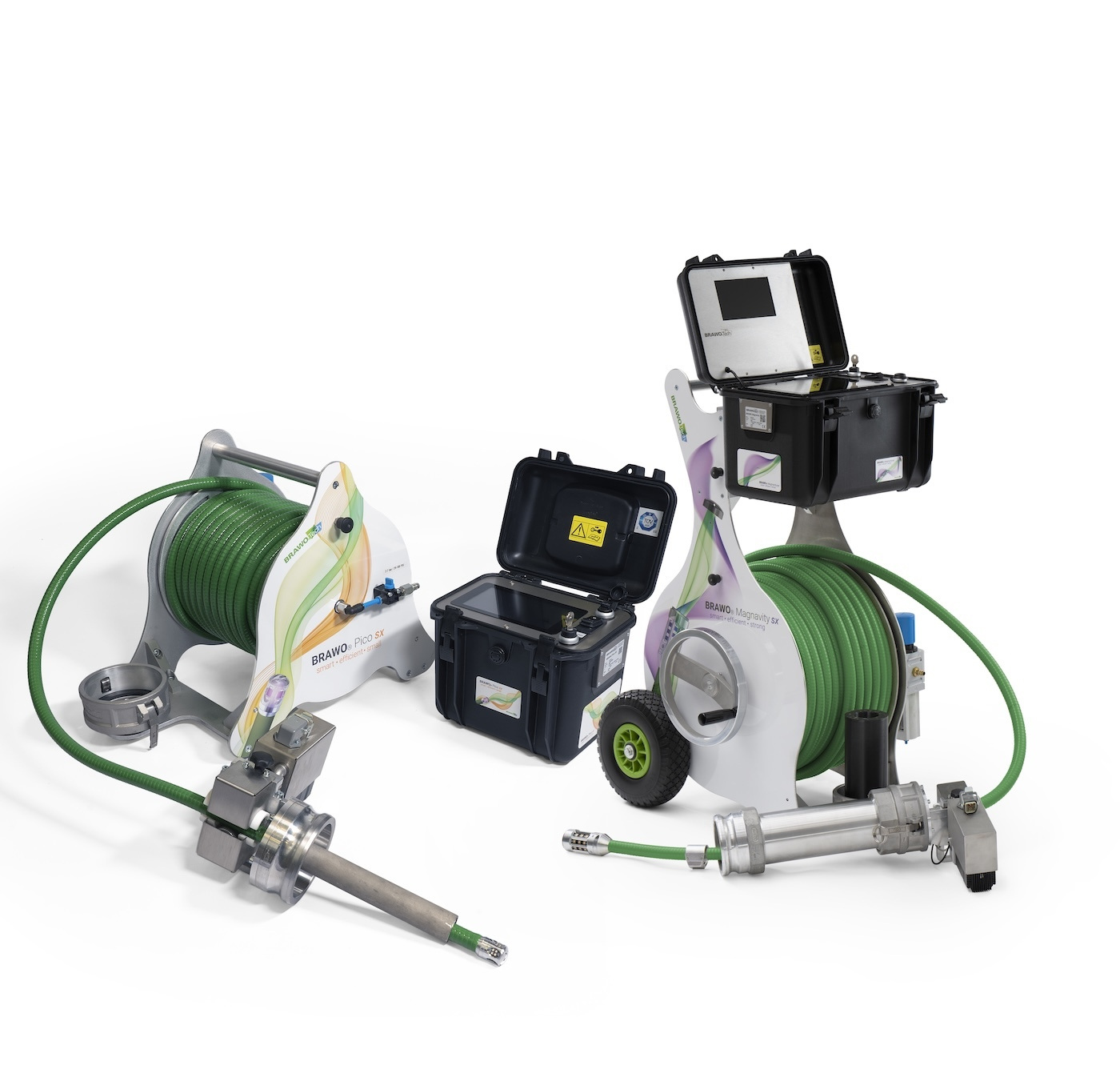

BRAWO Magnavity SX
The light curing system consists of an intelligent LED head with 96/192 high-performance UV LEDs, a 196-feet-long combination hose with integrated power and compressed air supply, a retraction unit and a control box. Operation is made even more convenient by the larger 10-inch touchscreen panel.
Technical data:
- Weight: approx. 70 kg (approx. 155 pounds)
- Dimensions (l x w x h): 735 x 490 x 975 mm
- Connected load: 1.25 kW
- Max. range (or hose length): 60 m (196 feet)
- Retraction speed: 0.1 – 2.0 m/min
- Head diameter Nano: 45 mm (pipe range 3 to 8 inches)
- Head diameter Mega: 80 mm (pipe range 6 to 12 inches)
BRAWO Pico SX – perfect for in-house rehabilitation
BRAWO Pico SX is the first system specifically for use in very small-diameter wastewater pipes. It ensures fast, reliable and smart light curing for small nominal diameters from 2 inches (DN 50).
Technical data:
- Weight: approx. 25 kg (55 pounds)
- Dimensions (l x w x h): 440 x 425 x 595 mm
- Connected load: 700 W
- Max. range: 25 m (82 feet) (hose length)
- Retraction speed: from 0.1 to 2.0 m/min
- Head diameter: 24 mm
