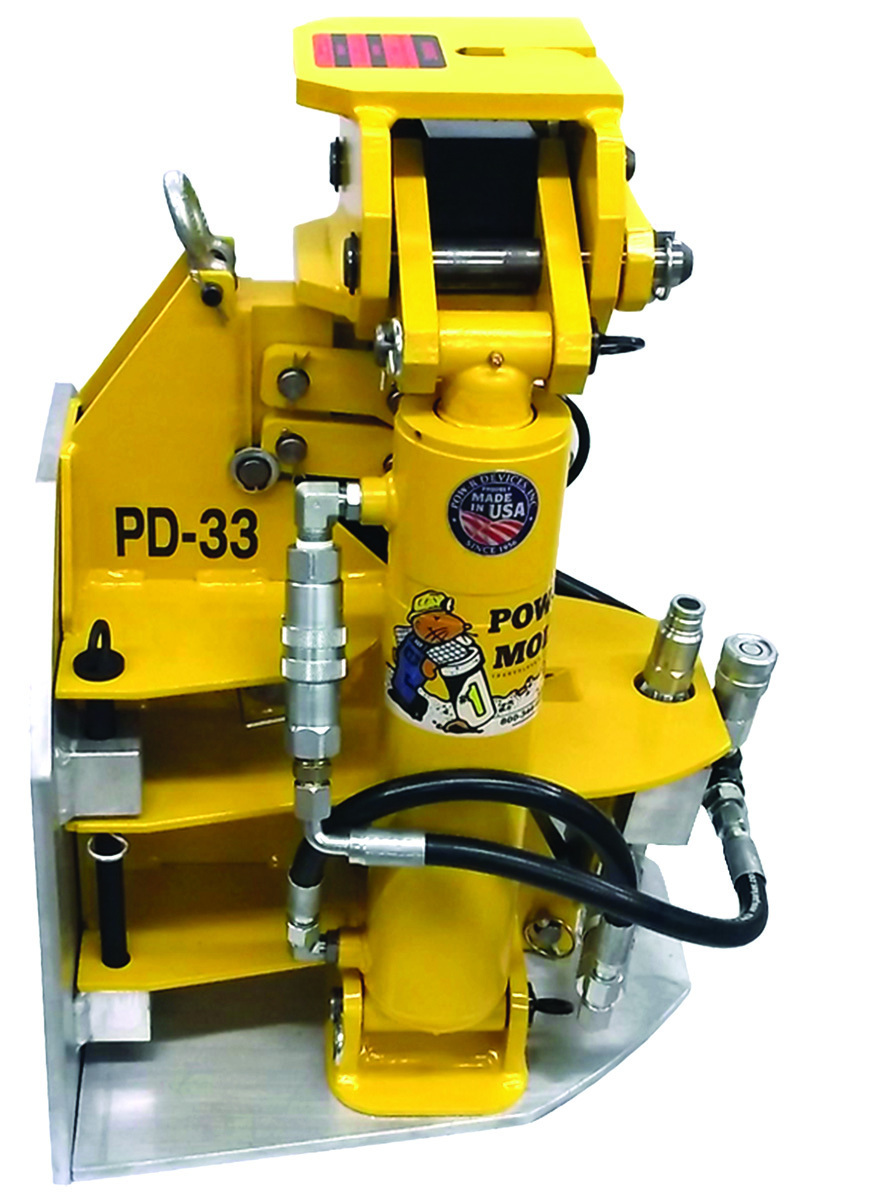

Pow-R Mole Trenchless Solutions PD-33M
The PD-33M pipe bursting machine from Pow-R Mole Trenchless Solutions is designed to replace existing underground pipes 2 to 6 inches in diameter. Its nonslip, cylinder-activated jaws prevent cable damage while providing 60,000 pounds of pulling force. It offers a cost-effective alternative to opencut excavation, reducing customer disruption and increasing company profits. The process replaces the existing pipe with a fused HDPE pipe, which eliminates all joints and allows the operator to pull through bends such as 45-degree fittings. This system is modular and can be easily disassembled and reassembled for manhole and basement applications. With a compact design and very small footprint of only 20 by 20 inches, this unit can be used in tight locations. 800-344-6653; www.powrmole.com

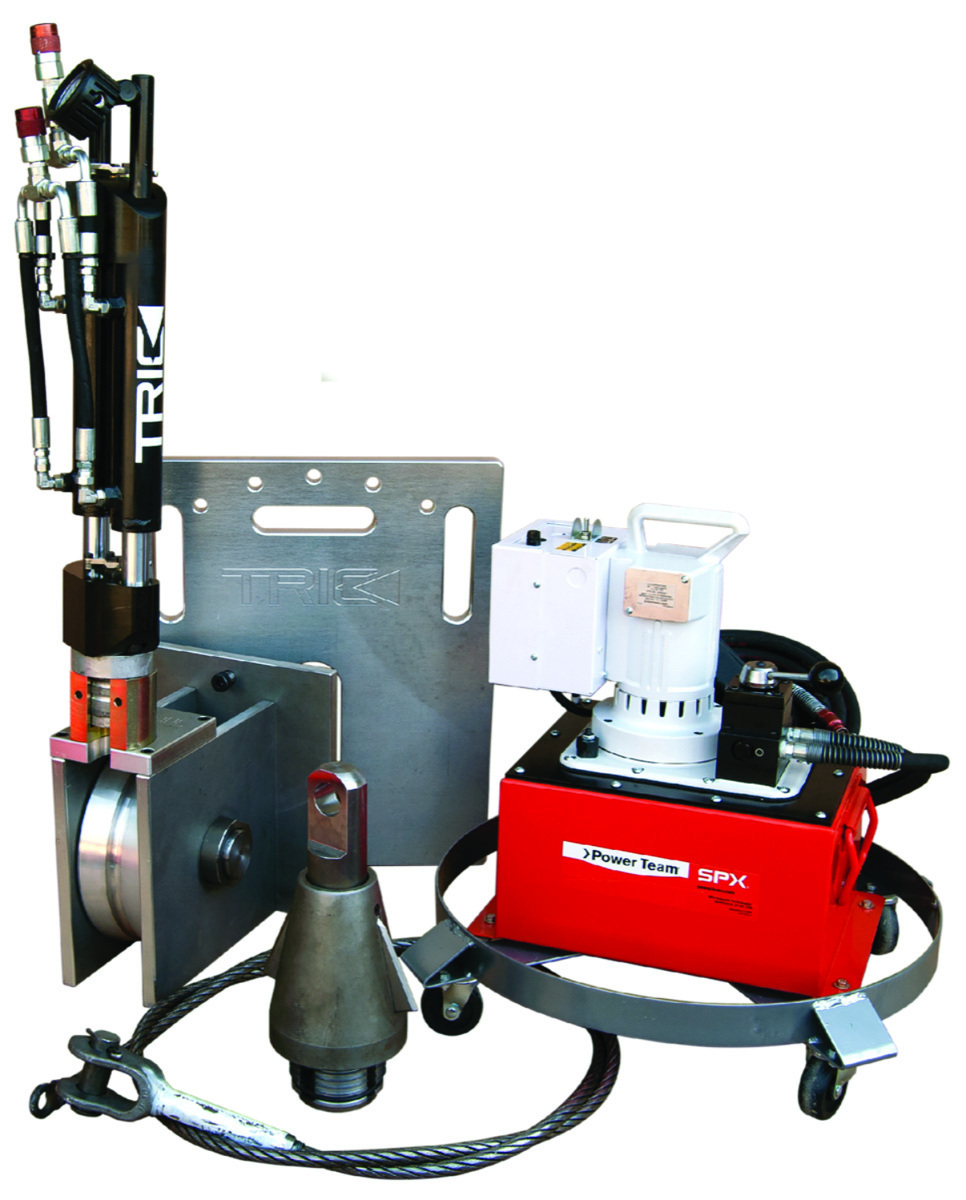

TRIC Tools E24
The E24 revisits the essential TRIC Tools 4-inch lateral bursting package that created the industry of trenchless home sewer replacement decades ago. Redesigned with economy and practicality in mind, it is geared primarily towards residential bursting jobs up to 4 inches in diameter. The standard system includes a portable and reliable 10,000 psi electric pump, plus lightweight 5/8-inch compact swaged cable. It is suitable for indoor use, difficult backyard easements, and very tight spaces with limited access. 888-883-8742; www.trictools.com
CIPP Equipment

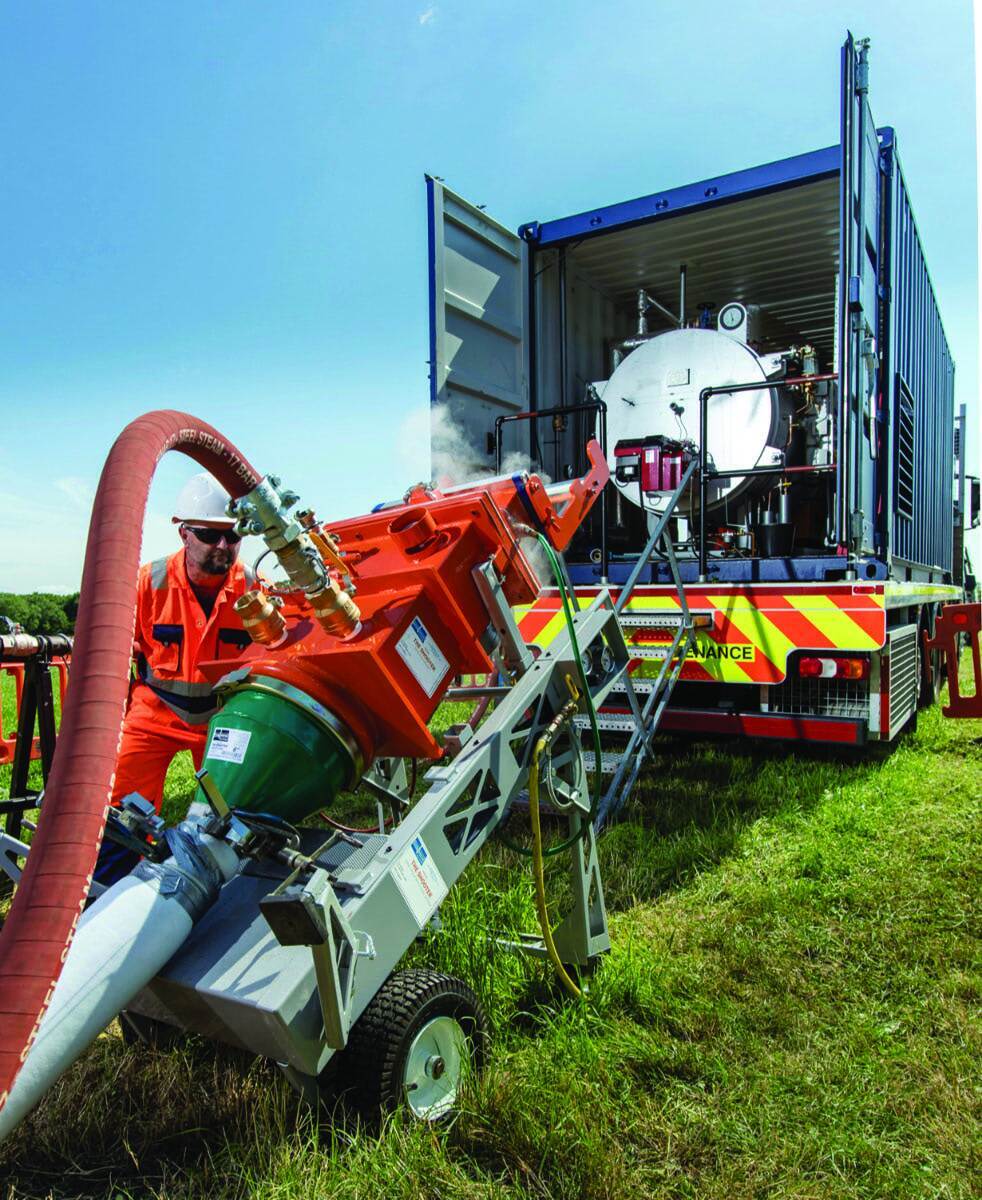

Emagineered Solutions THE SHOOTER 12
THE SHOOTER 12 from Emagineered Solutions is a continuous air-inverter for CIPP. It has a range of 4 to 12 inches (up to 15 inches with a conversion kit), a knife gate for after the liner tail passes, and comes with either a self-lubricating hand truck or a basic non-oiler cart. THE SHOOTER 24 is for 15 to 24 inches, is trailer-mounted and comes with a knife gate and remote operating station on the fender. An optional conversion kit expands its range from 6 to 24 inches. Additional equipment offered include full steam packages with portable dry steam generators, steam hose, A and B Stations, water cure flanges and LED UV Y adapters. 541-504-0416; www.theshootercipp.com

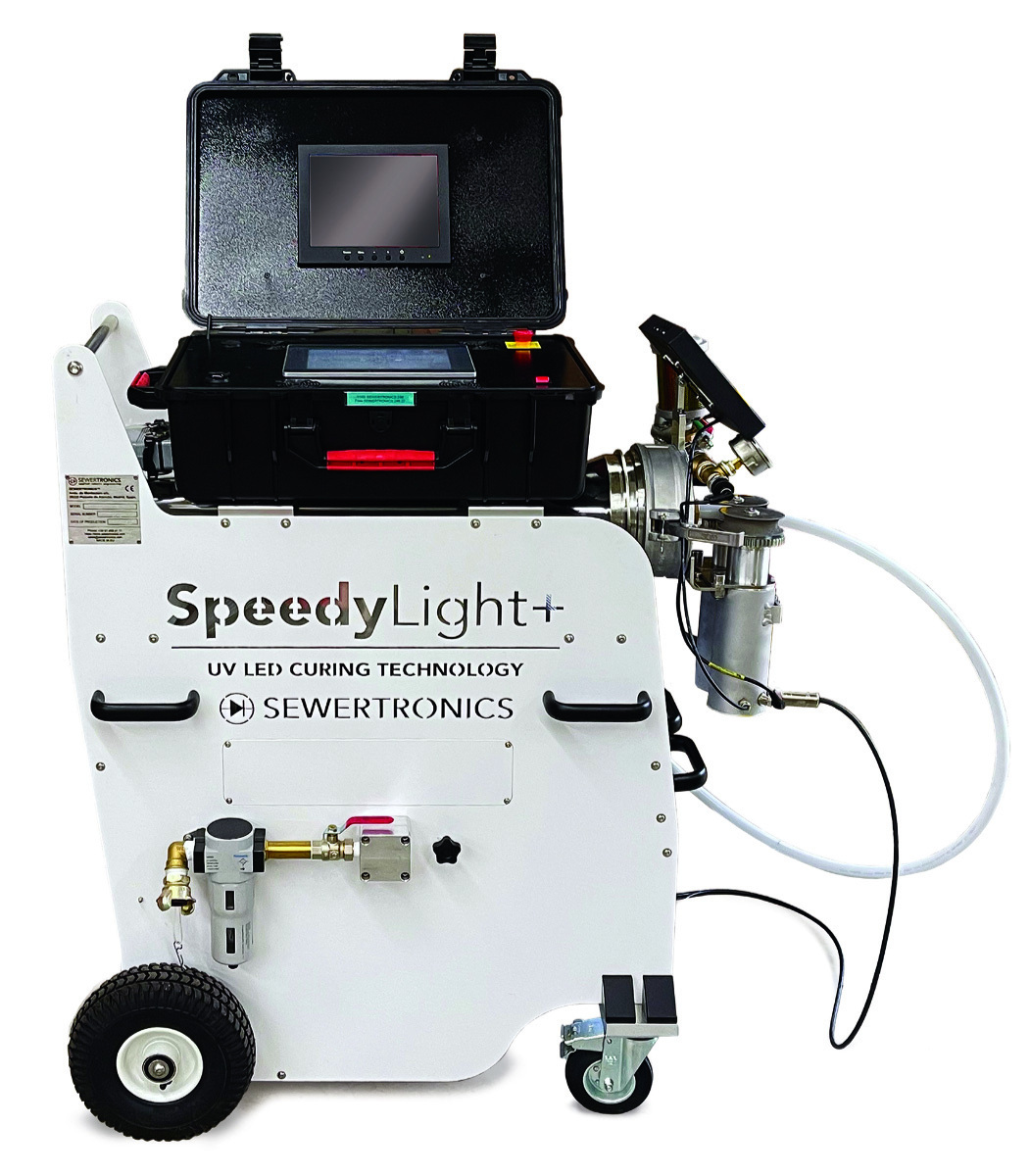

Pipeline Renewal Technologies SpeedyLight+
SpeedyLight+ from Pipeline Renewal Technologies is an LED-based solution for CIPP that safely and efficiently cures small-diameter liners. Compatible with both felt and invertible glass fiber, it can cure transitions, verticals and even 90-degree bends in lines as small as 4 inches in diameter. The integrated camera lets operators monitor the curing process in real time, allowing for ultimate precision and quality control. The highly portable design allows for access from even the most remote sites, curing up to 328 feet of liner in pipe 4 to 12 inches in diameter. Free of styrene and amines (and the associated odor), light-based cure technologies are less disruptive than their ambient counterparts are. 866-936-8476; www.pipelinert.com

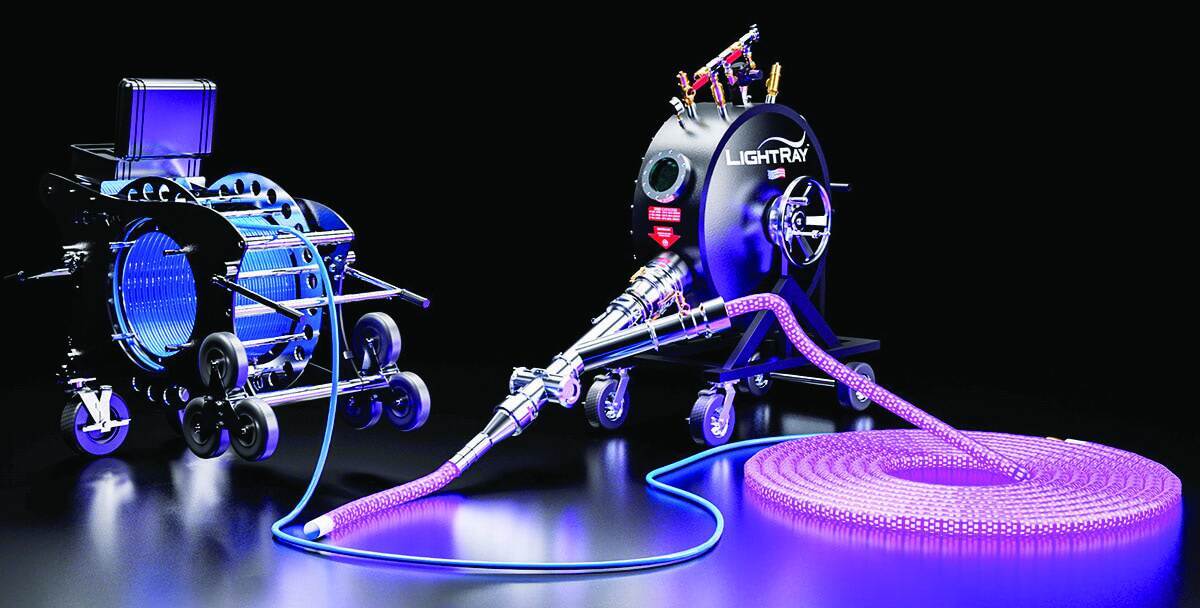

Waterline Renewal Technologies LightRay LRI System
The LightRay LRI System from Waterline Renewal Technologies allows complete operator control and closely resembles traditional ambient-cure inversion methods. It can accomplish throughput up to 6.3 feet per minute of casting with the light train, which incorporates cold LED lights that require no heat to cast the liner. The light train comes in a standard casting length of 50 feet, operates on a low-voltage DC platform and is internally protected to accommodate bends in pipes up to 90 degrees. Liners arrive ready to install without any need for refrigeration, which dramatically reduces the variability from mixing and preparing liners and eliminates the requirement for extra equipment in the field. The system uses nonthermal UV casting resin that is temperature-stable and only activated by UV light coupled with high-strength flexible fiberglass-coated liners. 866-336-2568; www.lightrayinversion.com
Excavating

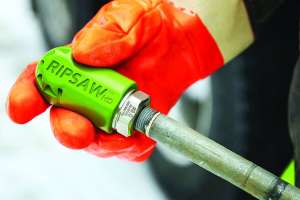

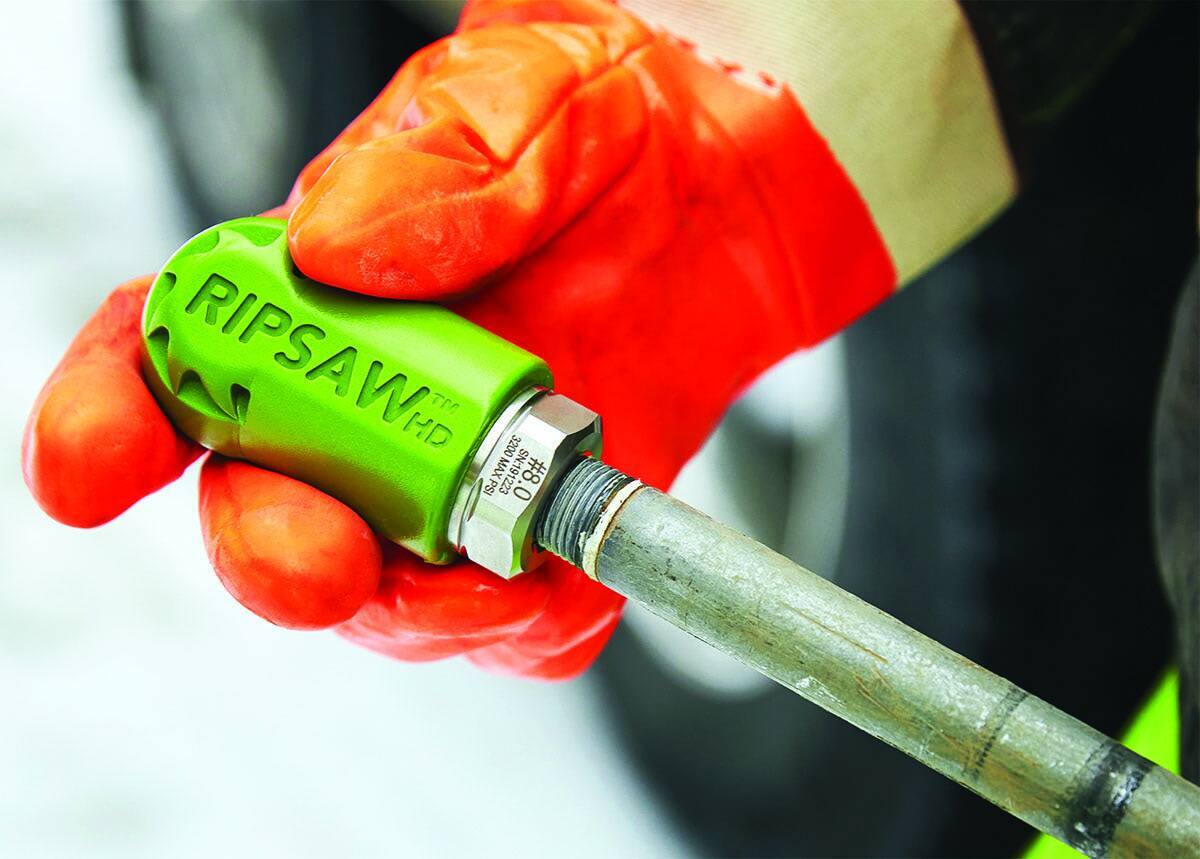

Hydra-Flex Ripsaw
The Ripsaw rotating hydroexcavation nozzle from Hydra-Flex has a 0-degree stream that rotates at an 18-degree cone of coverage, which increases impingement to dig faster and use less water. A slower stream rotation increases digging power, improves control, and reduces the nozzle’s wear and tear to lengthen its life. Built with heavy-duty coating, stainless steel housing, and tungsten carbide wear surfaces, its long-lasting, premium components are effective against frost, shale, and rocky soil. Its coating is non-conductive, which provides extra safety for both users and utilities. It was designed to be repairable — not replaceable — and repair kits extend the nozzle’s life, allowing users to be back up and running in just 10 minutes. 952-808-3640; www.hydraflexinc.com

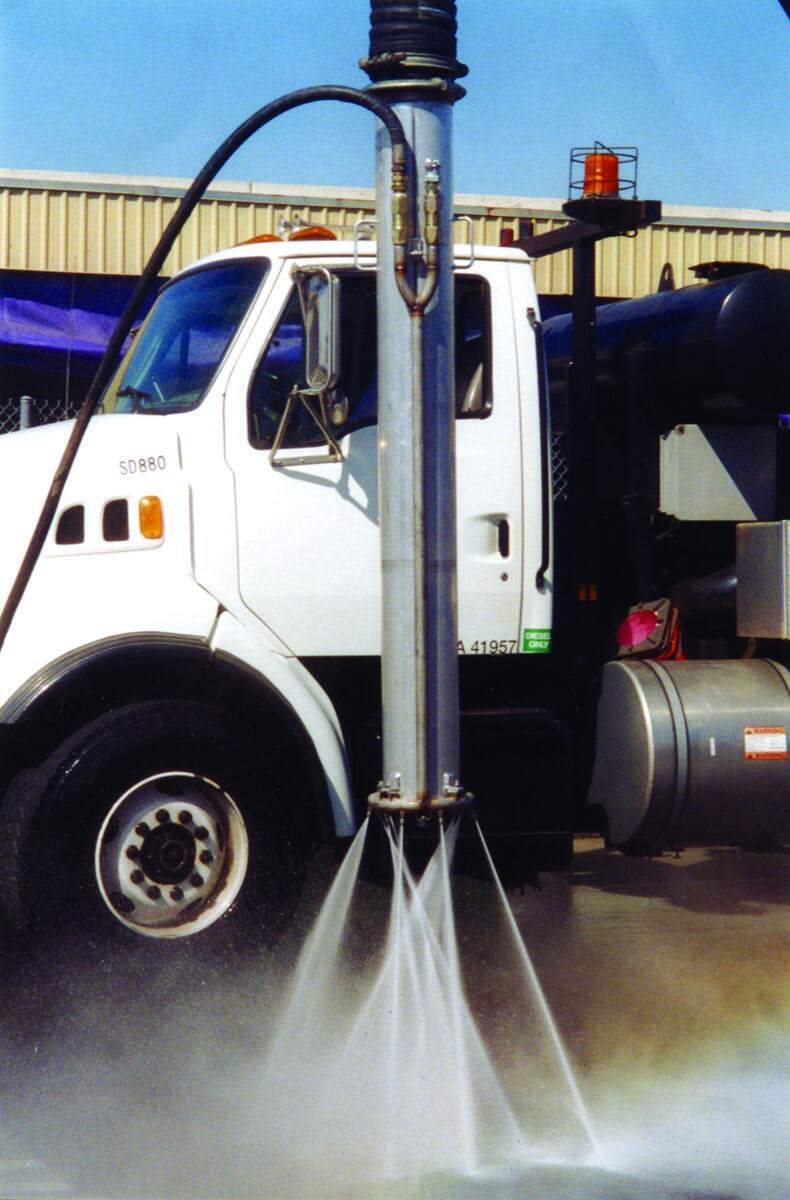

Soil Surgeon hydroexcavating tool
The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff-Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil while six boring outward bring the tube down. 949-363-1401; www.soilsurgeoninc.com
Fittings

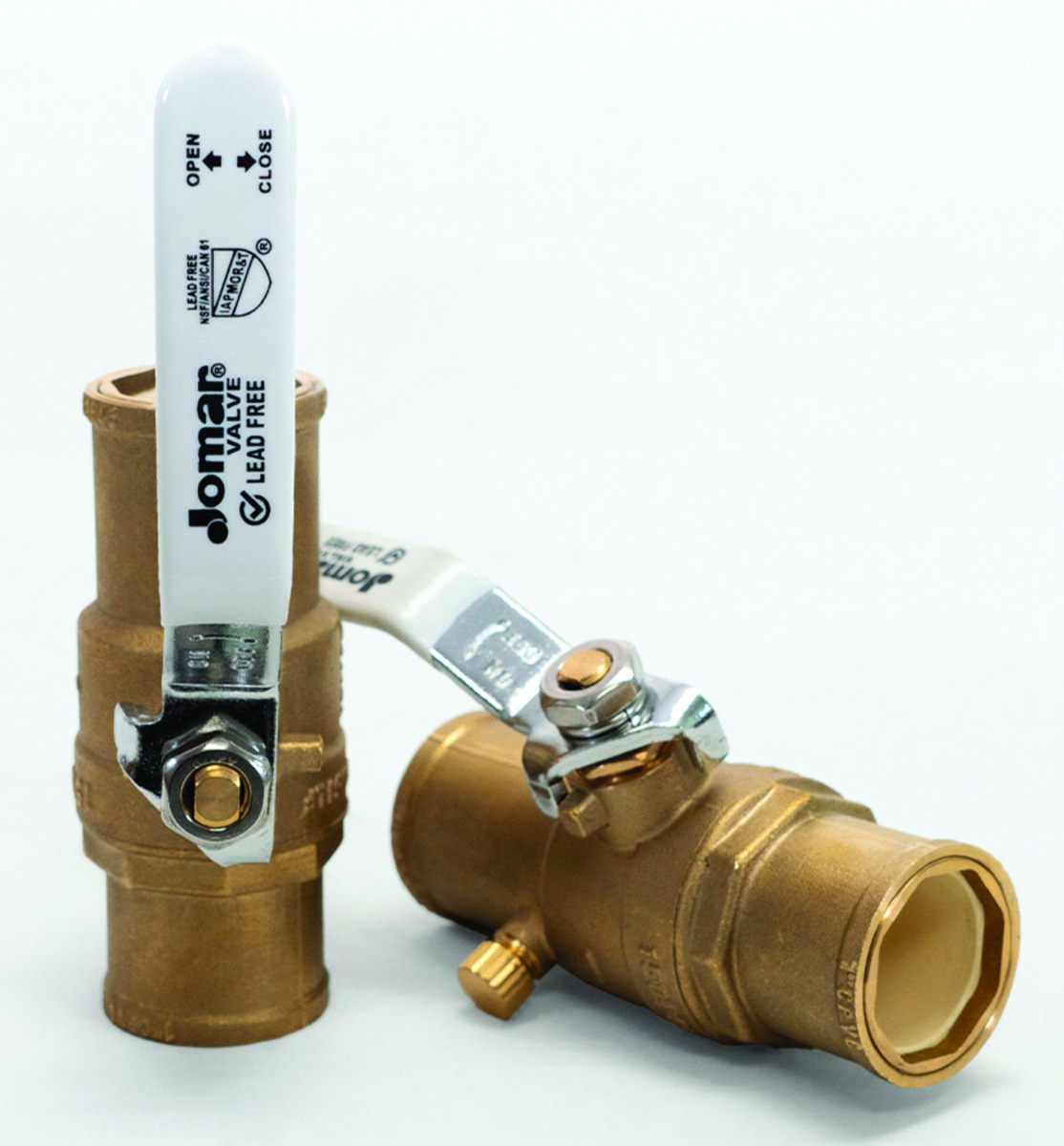

Jomar Valve Lead Free Brass CPVC Insert Ball Valve
Lead Free Brass CPVC Insert Ball Valves from Jomar Valve have a standard CTS connection, and are full port, two-piece, 150 WOG valves featuring a durable brass body, quarter-turn operation, CPVC end connection inserts and an optional drain tap 1/8-inch orifice. Made for hot and cold water systems, the valves are 100% leak tested and available in 1/2- to 1-inch sizes. 586-268-1220; www.jomarvalve.com

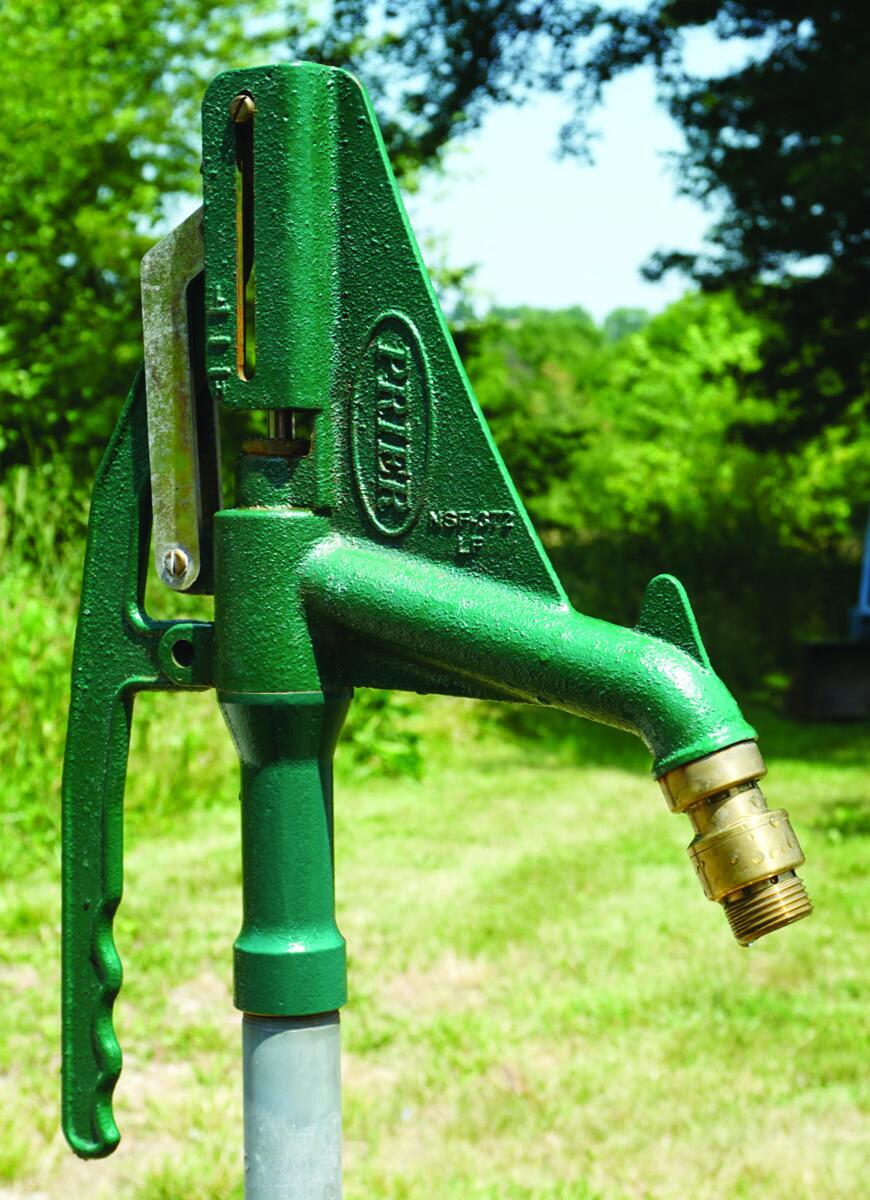

PRIER Products P-360 Sanitary Bury Hydrant
As municipal codes move to protect people from ecological harms, PRIER Products offers the P-360 Sanitary Bury Hydrant to meet these changing codes. It stores water in a canister, eliminating the exposed weep hole underground so there is no chance of water intrusion through to the drain hole. It uses a piston system, rather than venturi, so it does not require winterization and is serviceable above surface. There is a bucket catch for easy hands-free bucket fills and a high flow rate of 10 gpm at 25 psi differential. All PRIER sanitary hydrants are tested and approved to the ASSE 1057 Standard. The outlet is where all the safety features are housed, including a vacuum breaker and backflow preventer. This sanitary hydrant is also tested and approved to NSF-372, certifying it as lead free. 800-362-9055; www.prier.com

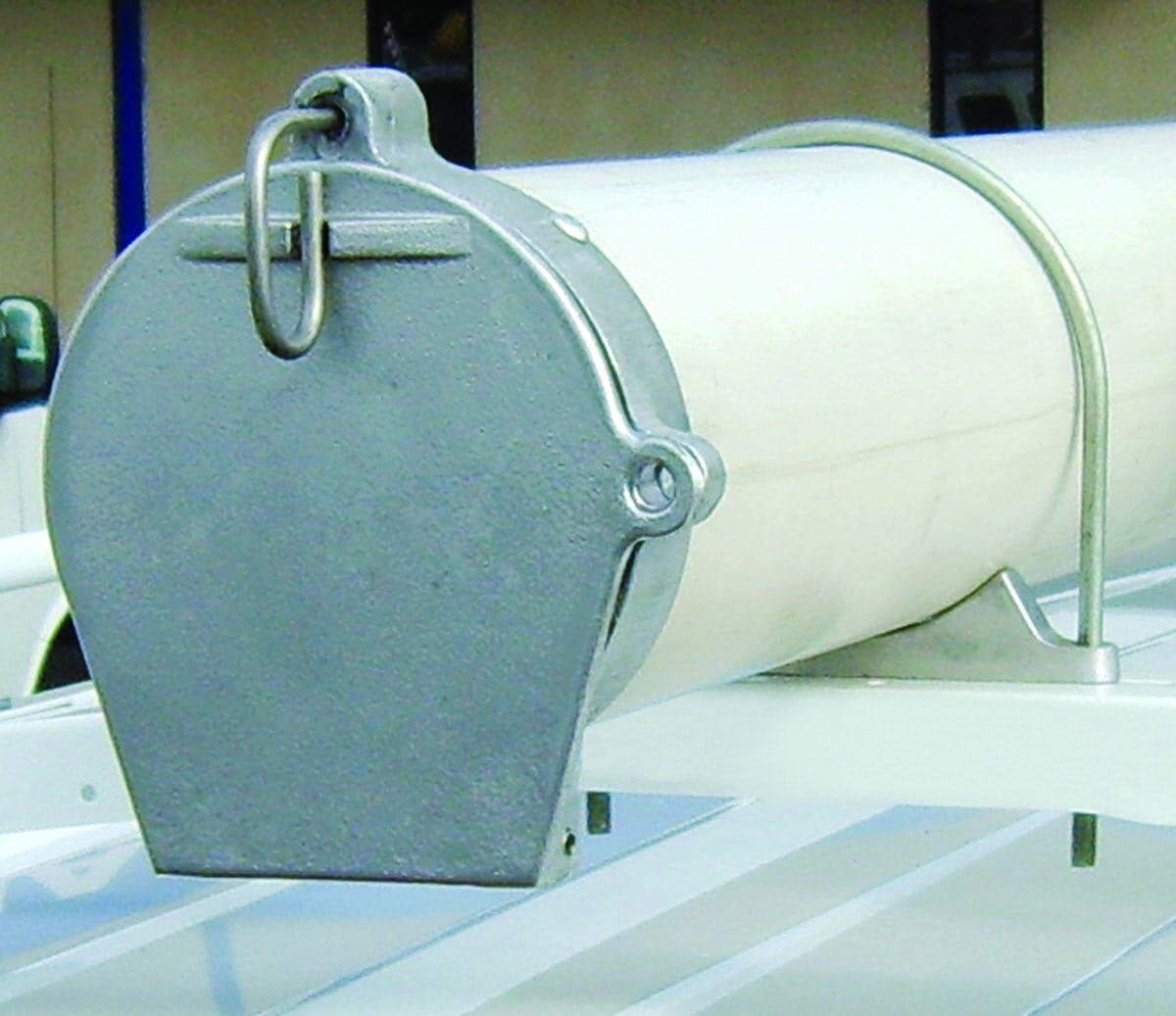

US Tube Doors
US Tube Doors offer easy and efficient alternatives to threaded plumber PVC plugs for roof-top storage tubes. These utility tube doors feature die-cast aluminum doors with easy-to-install zinc “U” saddle brackets. These doors eliminate cumbersome plugs, stripped threads and lost plugs. Doors have rib reinforcement for added strength, large padlock tab for added security and an attached gasket for a tight seal. These doors are available in three sizes to fit 4-, 6- and 8-inch Schedule 40 PVC pipe. 866-880-4880; www.ustubedoors.com

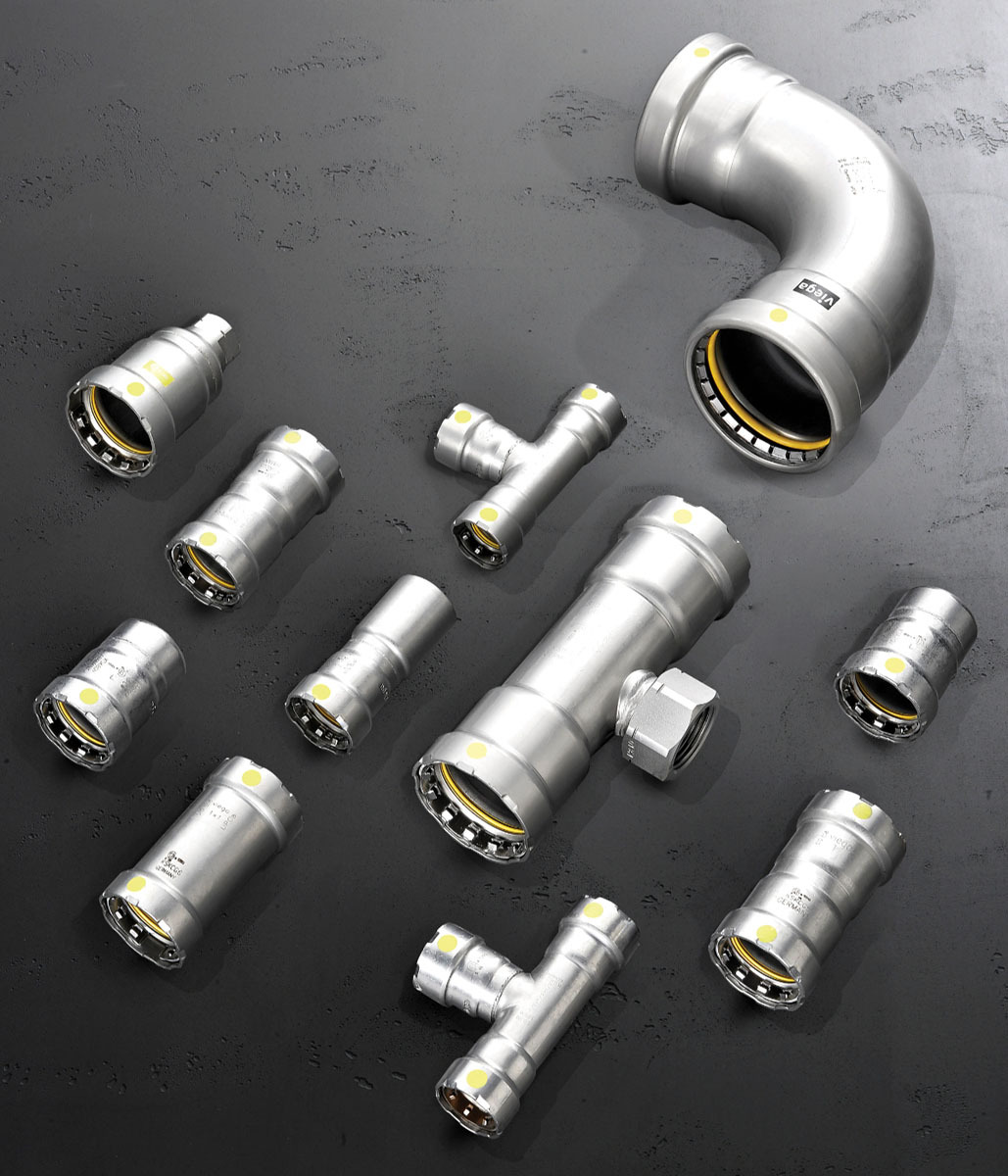

Viega MegaPressG
MegaPressG from Viega is a safe, fast and clean way to connect gas pipe. Made from carbon steel alloy with corrosion-resistant zinc nickel coating, it is available in sizes and configurations from 1/2 to 4 inches. It is approved for more applications than any other carbon steel press fitting system, including underground use, and has an HNBR sealing element for fuels and gasses. The graphite separator ring is engineered to withstand high temperatures. Available configurations include elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, reducing adapters, unions, caps and flanges. It helps keep job sites cleaner with no threading oils or other products. Connections can be made in 16 seconds or less, saving up to 90% on labor costs. The flameless connection eliminates the need for hot work permits or a fire watch, meaning other trades can work simultaneously and safely. 800-976-9819; www.viega.us
Pipe Relining Equipment

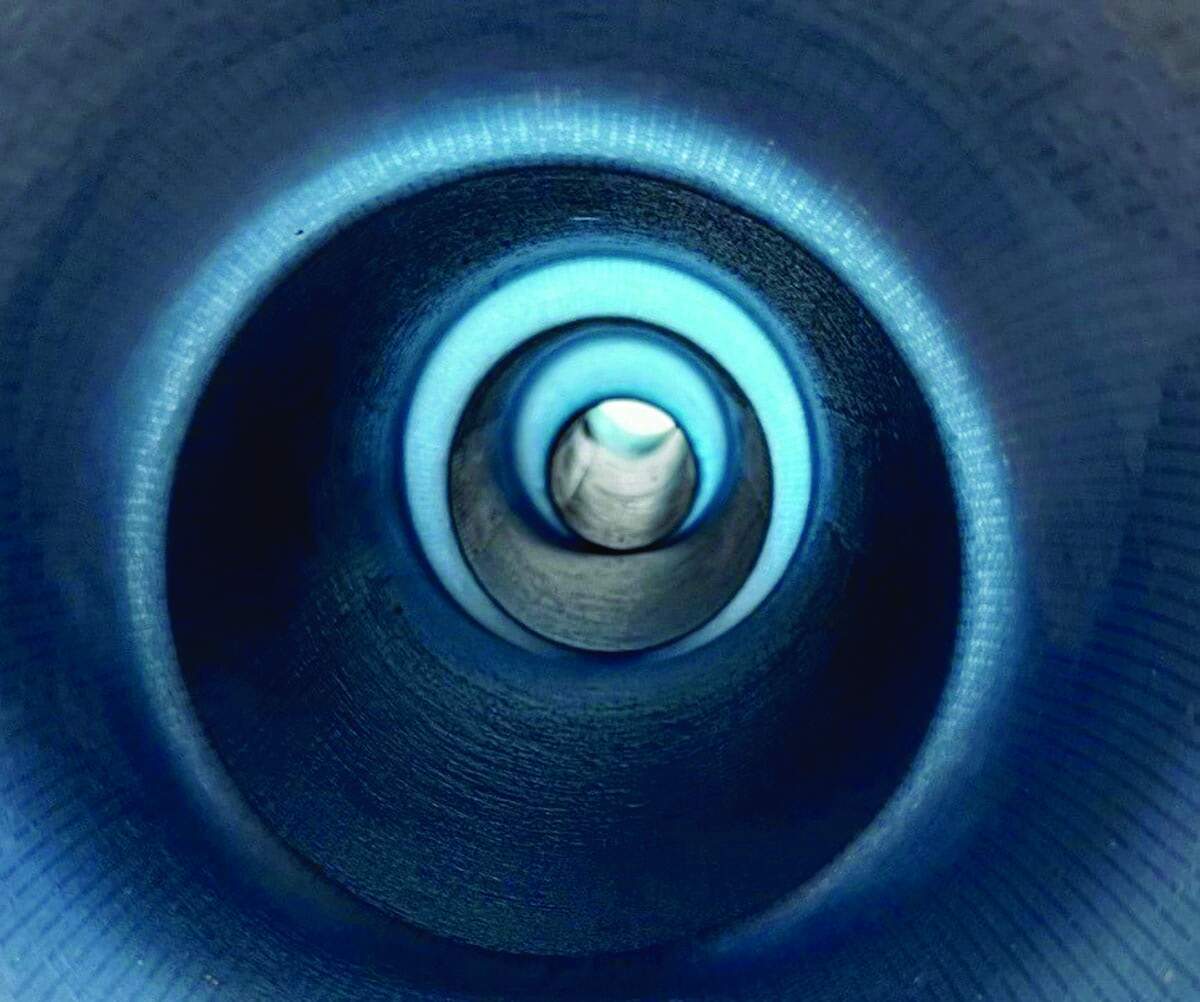

MaxLiner WovoX
WovoX from MaxLiner offers improved upsize capabilities, multiple bends up to 90 degrees, and increased consistency for calculating stretch and drawback. Up to two existing pipe diameter changes are possible with one liner, with no wrinkles, no folds, and without sacrificing finished thickness. The system helps installers looking to add in-building lining to their repertoire with a product capable of lining around multiple bends easily and with spectacular finished qualities. 877-426-5948; www.maxlinerusa.com

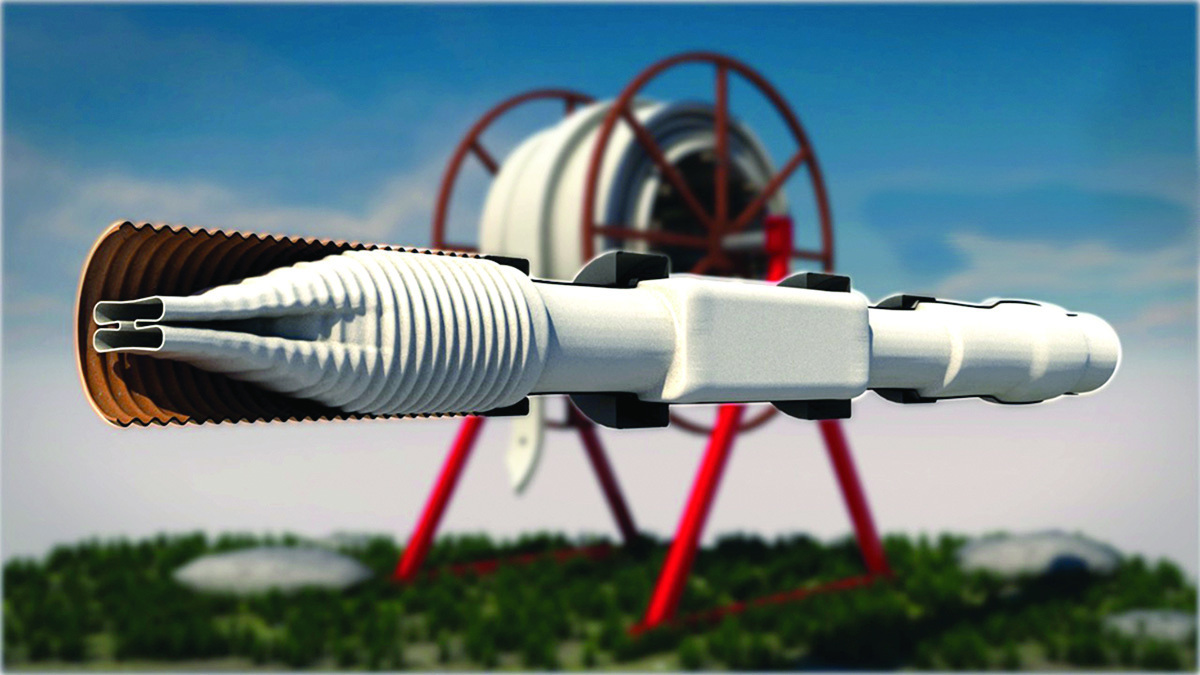

Warrior Trenchless Solutions Thermoform
Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest quality work possible. 716-601-7760; www.thermoformliner.com
Rehabilitation

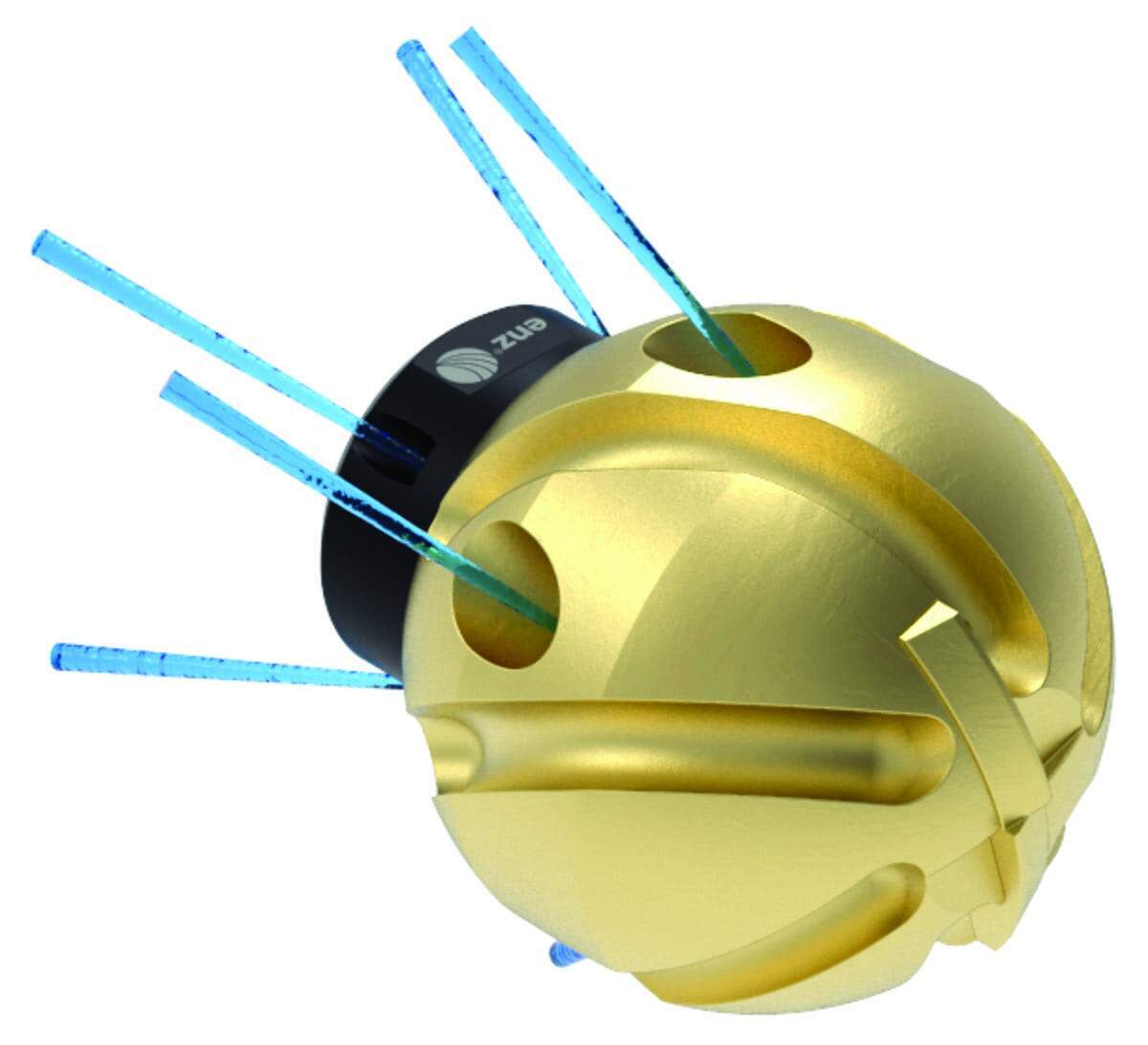

Enz USA CB Range
The CB (Cutting Ball) Range from Enz USA is equipped with a carbide root knife or penetrator blade for pipes that are clogged by more than 50%. The CB90, CB70 and CB50 work without impact, but are equipped with a plug that can be removed, that creates a vibration in the tool when rotating (except the CB50). The cutters on the side are self-sharpening and maintain their sharpness over their entire service life. The area of application of the cutting ball is diverse. Due to their spherical shape they can easily navigate bends without damaging the pipe. Moreover, the proven braking system ensures for a lower rotation speed. The CB90, CB70 and CB50 are leakage-free and can be operated with recycling water. They are particularly suitable for roots in seepage pipes, mineral deposits and lime scale. All are supplied in a case. 877-369-8721; www.enz.com

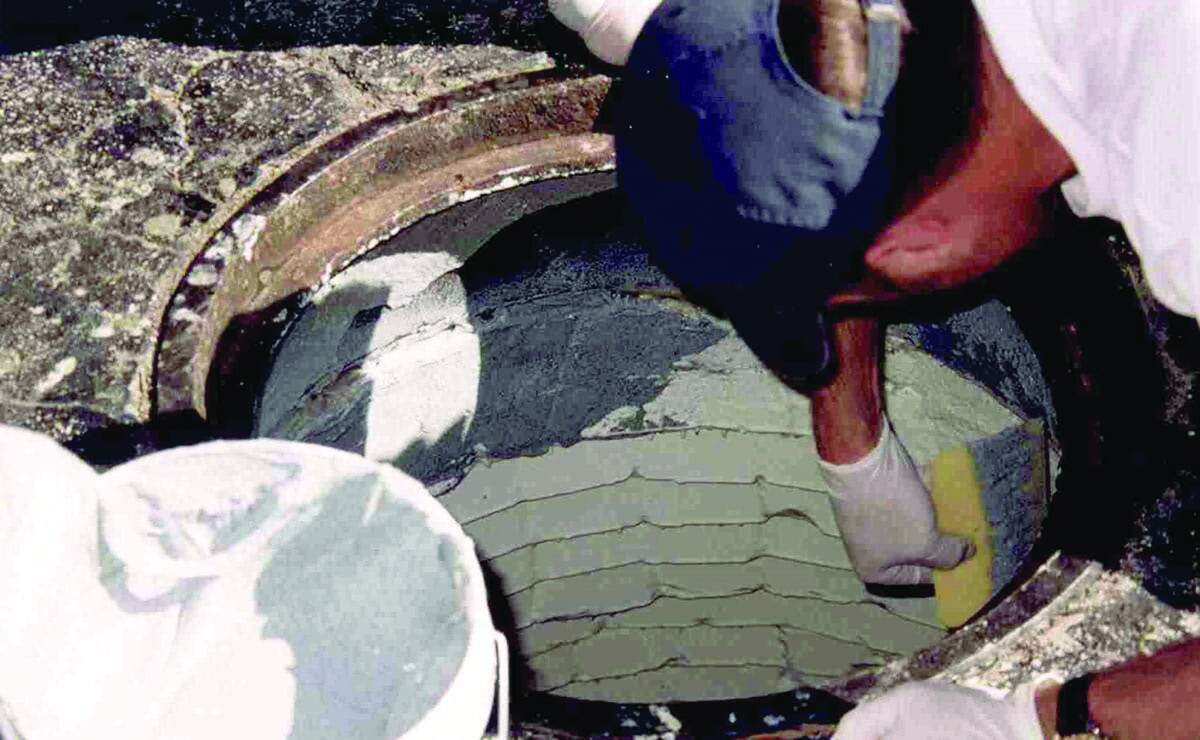

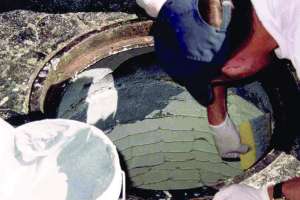

Infrastructure Repair Systems Infragard
Infragard concrete and manhole rehabilitation products from Infrastructure Repair Systems include Top Coat and Chim-Coat, which are nonhazardous ambient-cure epoxy systems for a small patch, entire manhole or retaining wall. This cost-effective solution requires no expensive equipment as it has an easy trowel-on application. They are corrosion resistant and high-strength, with an impermeable structural bond to the substrate or to almost any concrete or metal surface. Chim-Coat is engineered with a flexible feature that maintains adhesion while expanding or contracting with changing temperatures and traffic loads. 877-327-4216; www.irsi.net

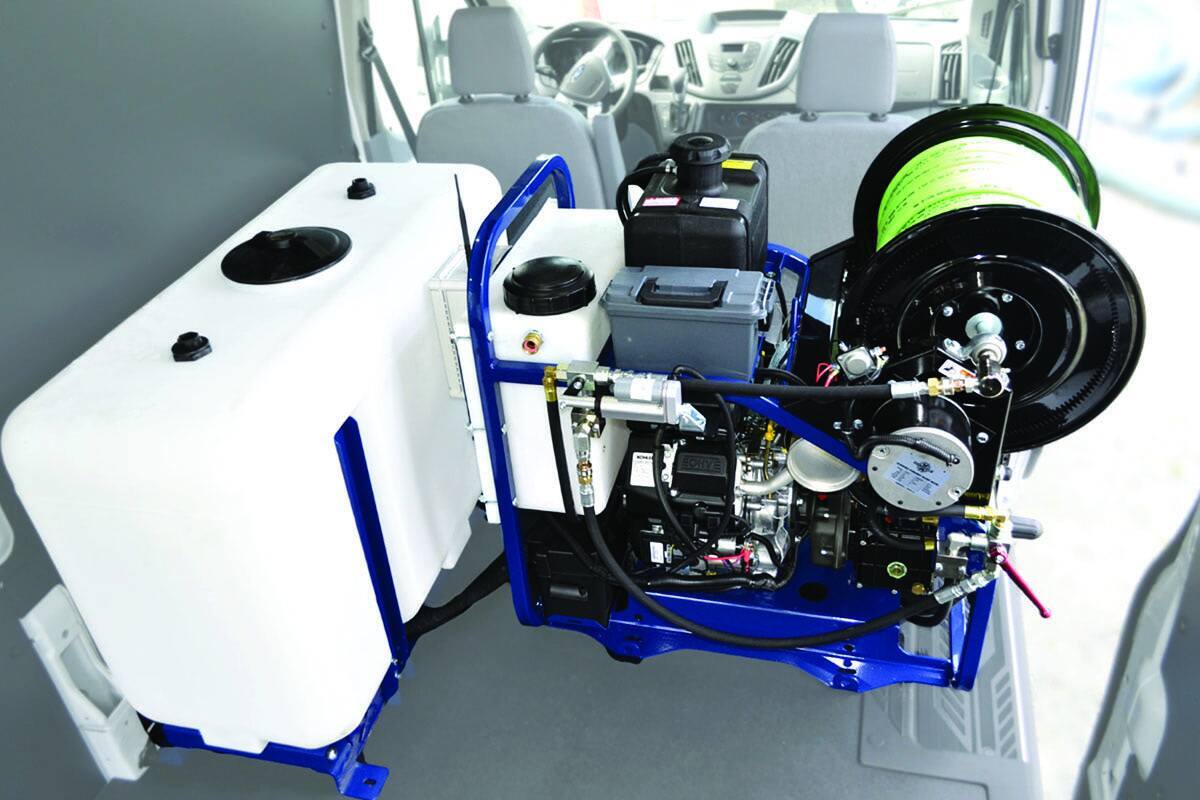

Jetters Northwest Brute Jetters SKID-4009 and SKID-3012 Jetters
Brute Mountable SKID-4009 and SKID-3012 Jetters from Jetters Northwest provide trailer-sized power in a very compact skid package that mounts in a van, truck or to a trailer. Available at either 9 gpm/4,000 psi (SKID-4009) or 12 gpm/3,000 psi (SKID-3012), the jetters have the power to run root-cutting nozzles such as the Reaper, Warthog and Bulldog. Compact water tank skids are available in 100-, 150- or 200-gallon sizes that easily couple to Brute jetters. Fuel-injected engines provide choke-free electric-starting and work with the optional wireless remote control that controls jetting on/off and engine on/throttle/off. They also feature panel-mounted controls to allow handy operator-access, a 12-volt power reel holding up to 400 feet of jetting hose (300 feet standard), adjustable pulsation control, and four jetting nozzles included. An optional wheel kit is available for portability. 877-901-1936; www.jettersnorthwest.com

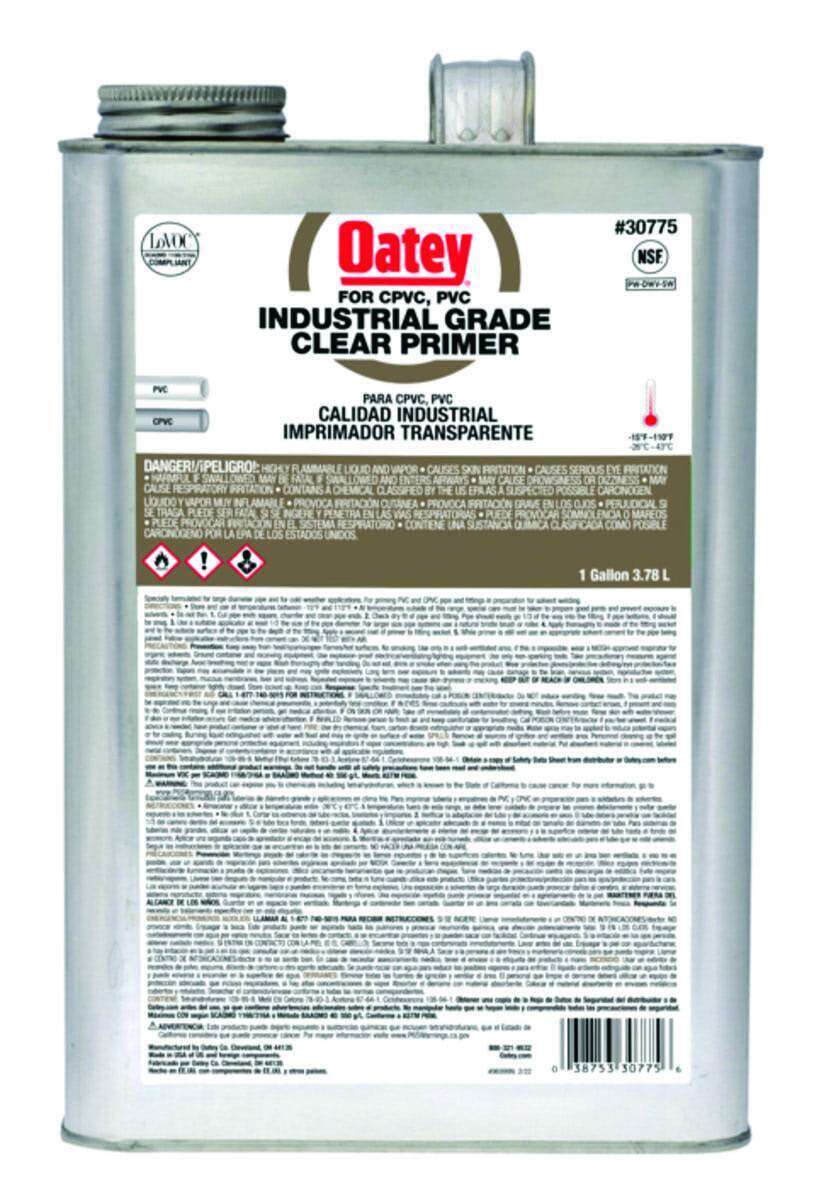

Oatey Industrial Grade Clear Primer
Oatey Industrial Grade Clear Primer is an NSF-listed, aggressive primer for use on commercial and large-diameter thermoplastic piping systems, specifically CPVC Schedule 40 / 80. It is formulated for use on PVC and CPVC pipe and fittings in cold weather applications. It removes contaminants such as surface dirt, grease and grime, as well as softens the pipe surface to allow for a fast, secure solvent weld. Its clear finish will not stain most surfaces. All solvent cement and primer products are certified to UL Greenguard Gold. It is available in three variations of sizes, ranging from 16 oz. to a gallon. 800-321-9532; www.oatey.com

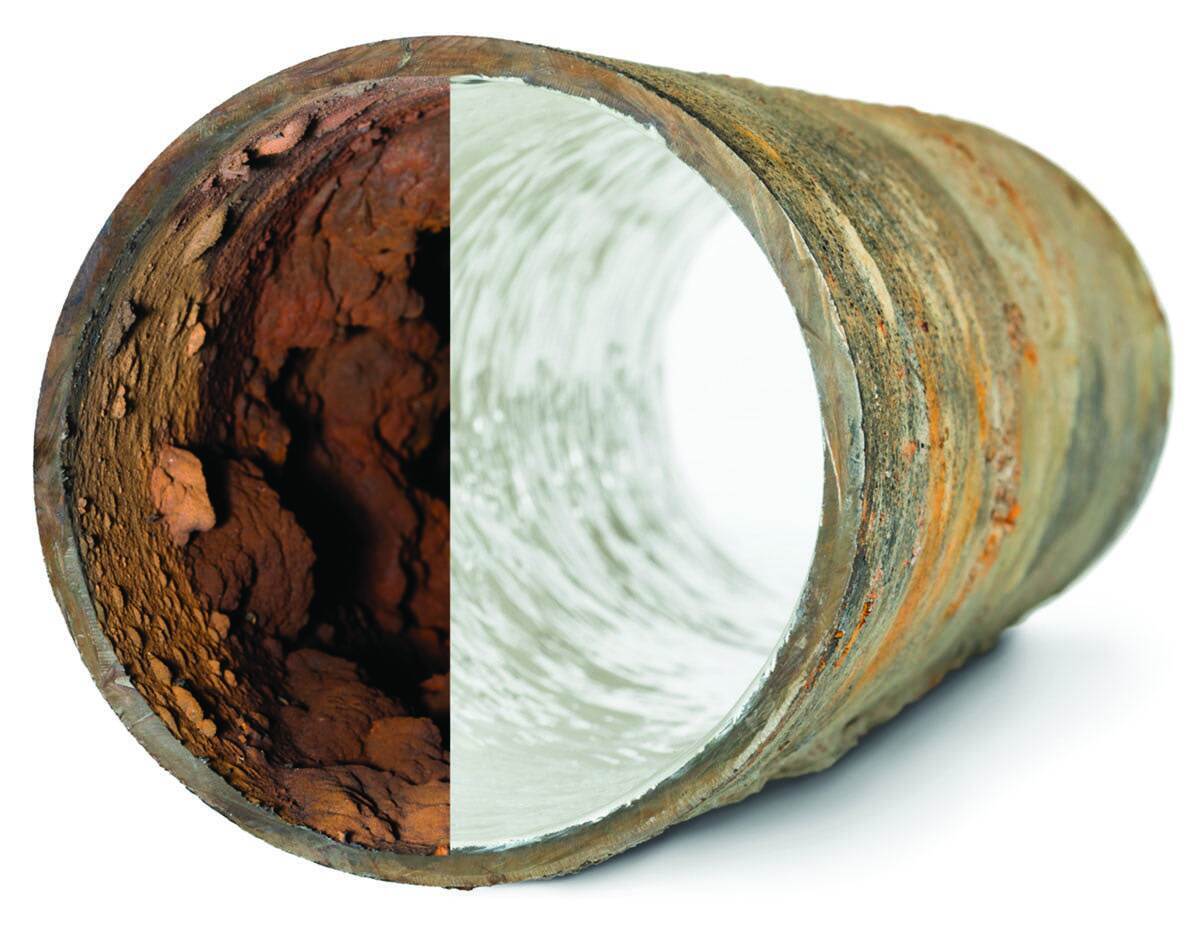

Picote Solutions Dual-Color Epoxy Brush Coating System
The Dual-Color Epoxy Brush Coating System from Picote Solutions allows technicians to rehabilitate pipes from 1.25 to 12 inches for drains, sewers, water pipes, electrical conduits and heat and air-conditioning ducts by brush-casting a coating. The coating resin forms a pipe inside the original pipe that is tested, safe and environmentally friendly. The new pipe is damp-proof, corrosion-resistant and wear-resistant. It is ASTM and NSF certified (NSF/ANSI 61-5). It is a 100% solids epoxy, and the method allows for clear visual verification during the application process. Apply to small areas or all drains in multistory buildings. The system is practical and easily fits in tight places. 219-440-1404; www.picotesolutions.com

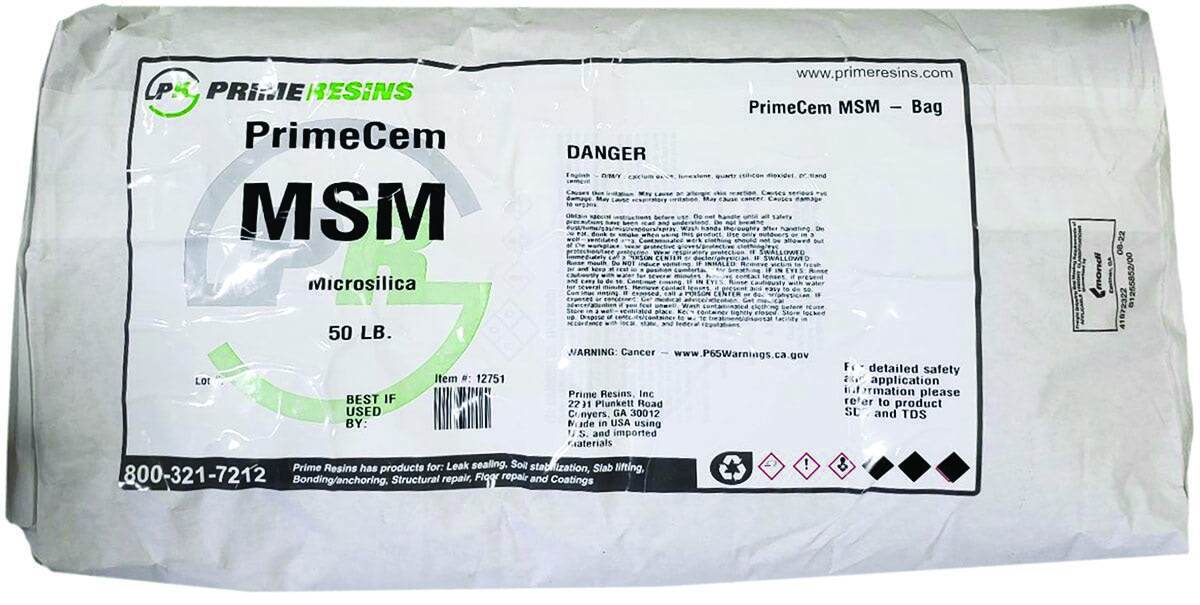

Prime Resins PrimeCem MSM
PrimeCem MSM (Microsilica Mortar) from Prime Resins is a blend of Portland cement, graded silica sand, fibers and silica fume. The mortar may be hand- or spray-applied in a nominal thickness of 1/4 to 2 inches. Thicker applications can be achieved by applying it in successive lifts. Uses include repairing concrete walls, ceilings, lining brick or concrete manholes and lift stations and horizontal pipe repair. Microsilica Mortar provides an extremely dense matrix and will accept coatings at earlier ages than typical Portland cement repair products. This product contains a migrating corrosion inhibitor. 800-321-7212; www.primeresins.com
Reinstatement Cutter

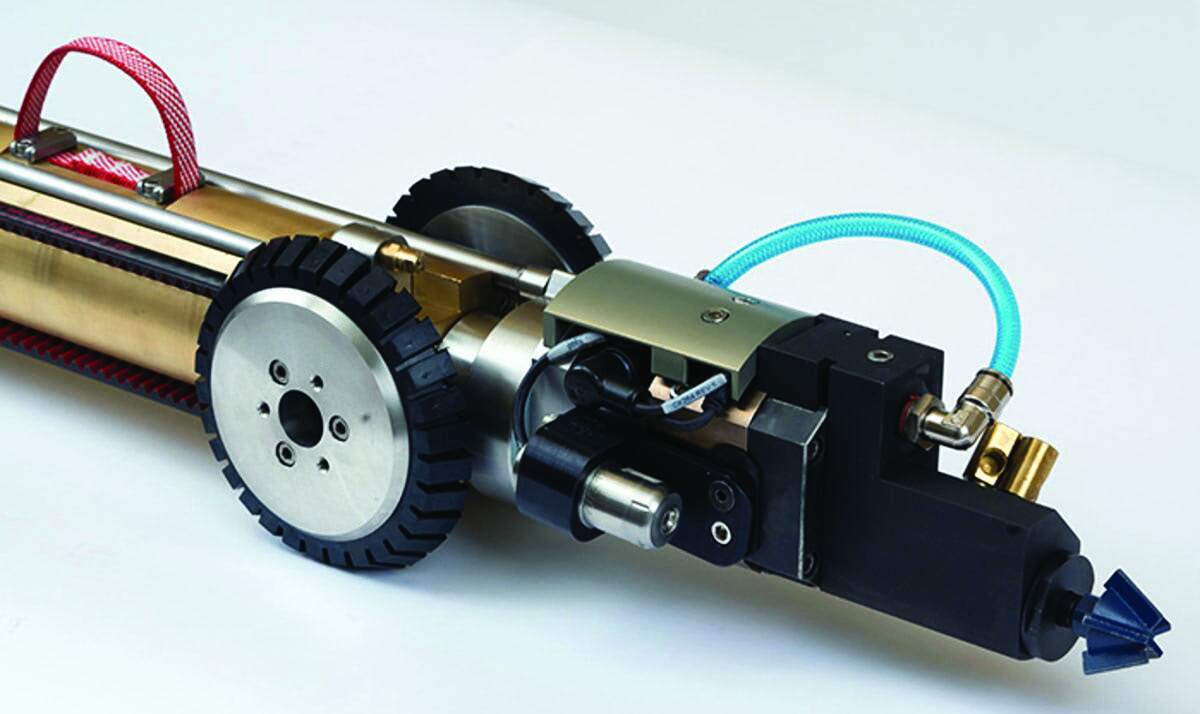

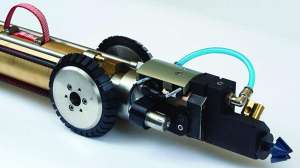

CUES Currahee Cutters
CUES Currahee Cutters provide a number of solutions for pipe inspection and rehabilitation — from clearing blockages, debris, protruding laterals and roots, to reinstating laterals in a CIPP liner. The cutters function in a range of 5.25- to 12-inch pipe, are equally effective in CIPP or fold-and-form liners, and can be installed on a CUES K2 truck-mounted cutter system. The system performs optimally using 1,000 to 1,500 feet of cable, and is operated with the CUES gamepad controller. 800-327-7791; www.cuesinc.com
Trenchless Point/Spot Repair

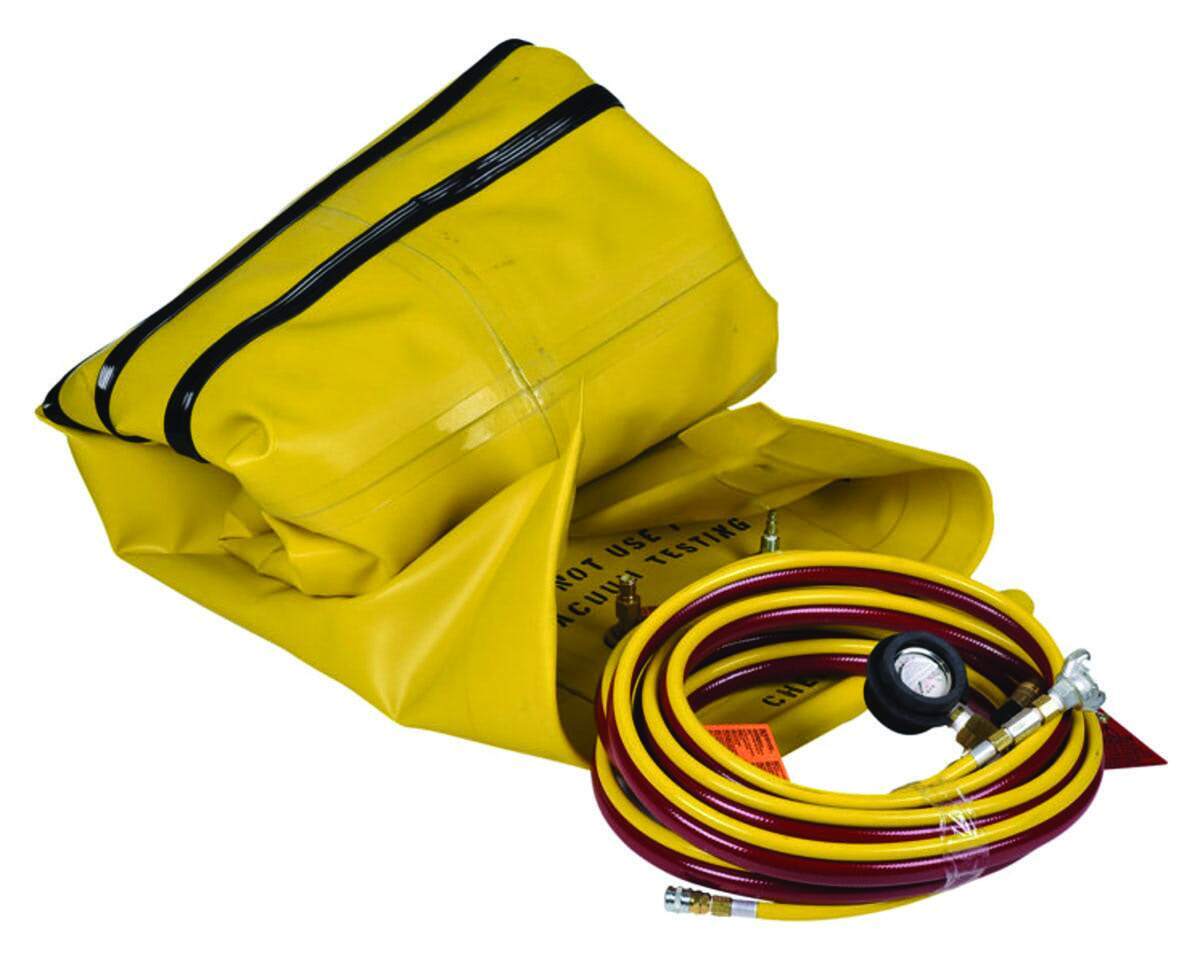

Cherne Pillow-Style Test-Ball
Cherne Pillow-Style Test-Balls are made of heavy-duty elastic urethane, making them lightweight, flexible and hydrocarbon resistant. They can fit through small-diameter openings, and are also great for blocking sewer flow. They are equipped with a special 30-foot inflation hose, read-back line and gauge. A repair kit is available to fix small tears and punctures. They are available in 15 variations of lengths, ranging from 15 to 66 inches. 800-843-7584; www.cherneind.com

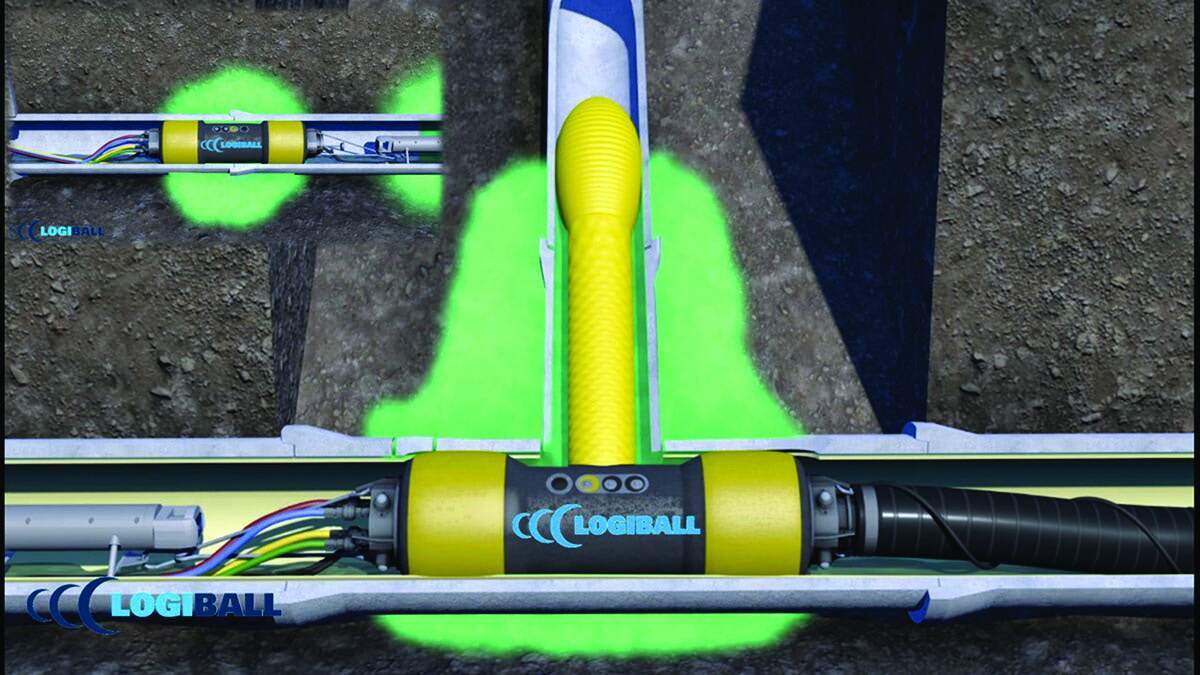

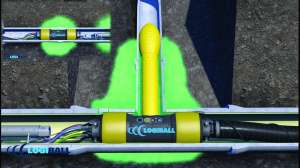

Logiball Test and Seal Packers
Logiball’s line of test and seal packers cover mainline joints 6 to 144 inches, lateral connections and lateral lines from the mainline (6 to 30 inches) and laterals from a clean-out access (4 to 6 inches). Test and seal packers are available for different pipe shapes (box culverts, egg shape, elliptical pipe and long span packers) to stop groundwater infiltration and stabilize pipe bedding materials, thereby extending the useful life of these assets. They can help stop unwanted groundwater infiltration in sewers using a holistic approach. 800-246-5988; www.logiball.com/en
