Product Focus: Septic and Sewer Systems

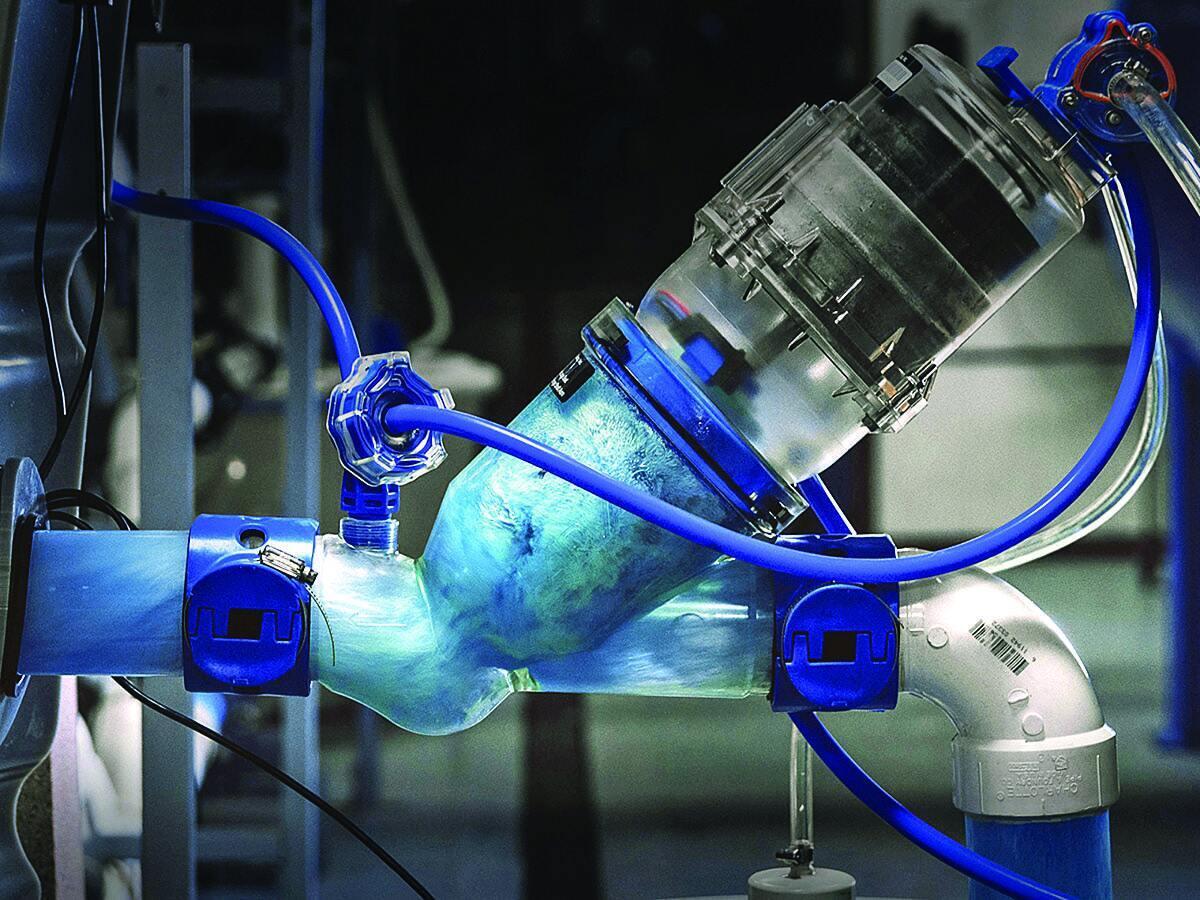

Airvac vacuum sewer collection system

Airvac’s vacuum sewer collection systems are a mechanized method of transporting wastewater. Differential air pressure creates flow rather than gravity or pressure. Essentially, a vacuum sewer collection system is a vacuum-assisted gravity sewer system. Systems require a vacuum station. Vacuum pumps at the vacuum station maintain vacuum on the collection mains. To maintain this vacuum, a valve at each sewage input point seals the system. The valve opens automatically when a given quantity of sewage accumulates in a collection sump. This valve is entirely pneumatic in its control and operation. Differential pressure between local atmospheric pressure and the vacuum pressure provides the thrust needed for wastewater transportation. 800-247-8229; www.airvac.com

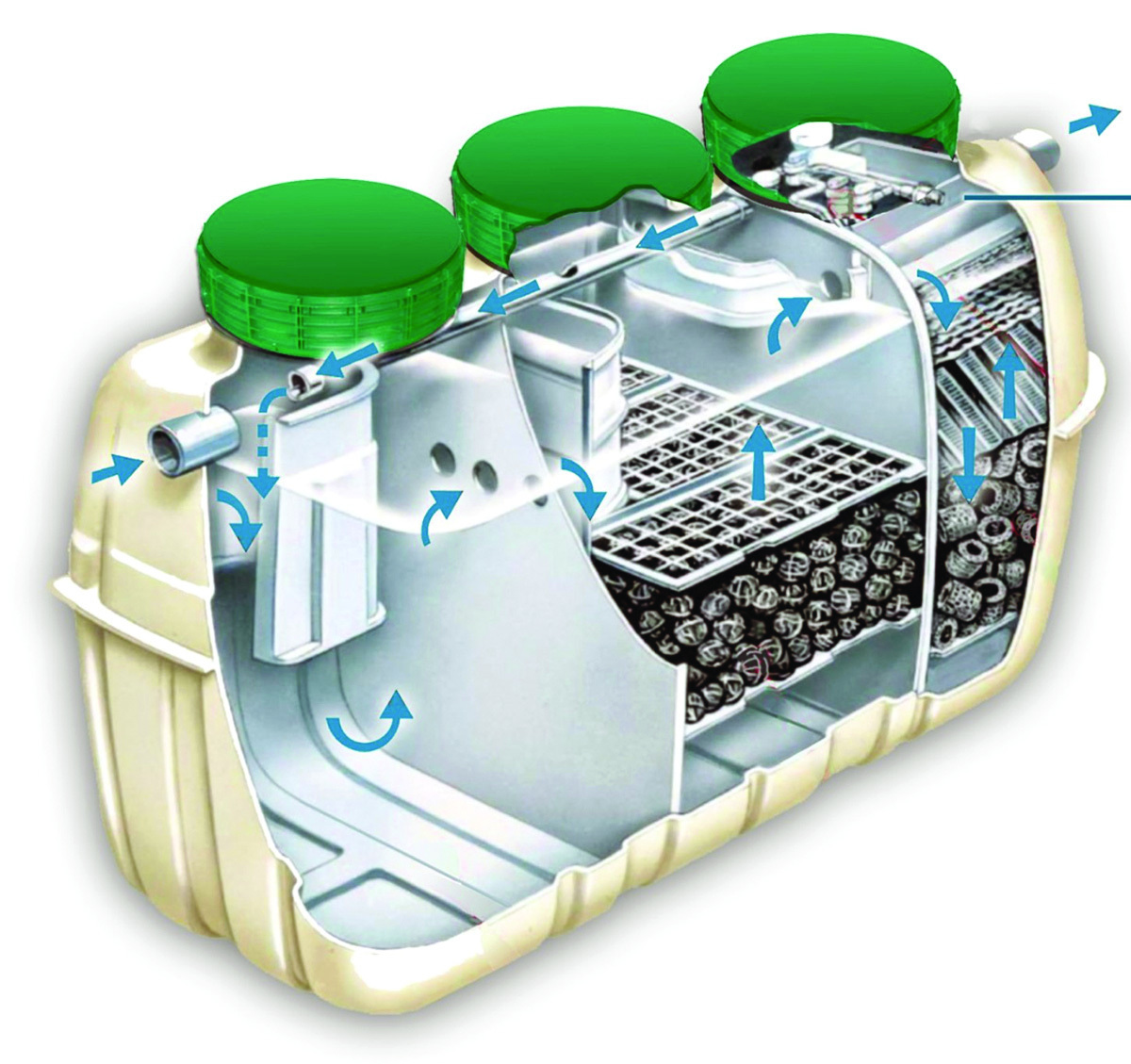

Fuji Clean CE

Fuji Clean’s CE model series offers a one-tank configuration, small footprint (7 by 4 feet for the smallest model), low power draw, easy plug-and-play installation, simple and efficient operations and maintenance, and consistent treatment (90-95% BOD and TSS removal). No preceding septic tank is necessary. It is NSF 40 certified, and there are no moving in-tank parts. An external air blower (FujiMAC RII) introduces oxygen to aerobic chambers and powers two internal air lift pumps, which manage sludge return and discharge of clean effluent. CEN technology provides enhanced denitrification into its standard treatment process and produces a consistently high-quality effluent (NSF 40/245 certified: 5 BOD, 6 TSS and 10 TN) from straight septic wastewater. It has all the same easy installation and maintenance features of the CE models and an optional wireless telecommunication package. 207-406-2927; www.fujicleanusa.com

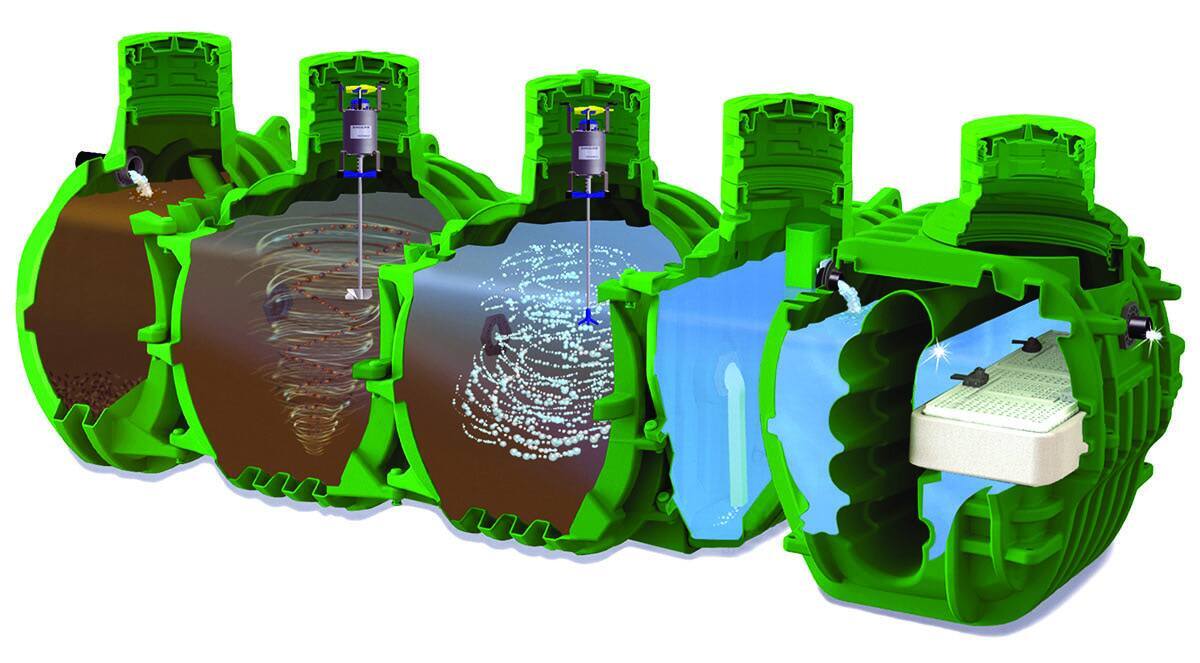

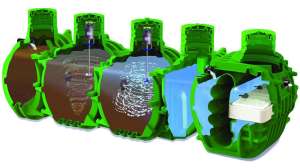

Norweco Singulair HK Green

The Singulair HK Green wastewater treatment system from Norweco is designed for areas that require significant and consistent reduction of total nitrogen. The hybrid system combines suspended and attached growth biological processes, and consists of pretreatment, anoxic, aeration and clarification chambers, followed by the biofilm reactor. It uses an extended aeration process to treat wastewater and features technology to enhance or optimize denitrification. Wastewater in the system undergoes a 70-hour retention to ensure adequate exposure to all treatment processes. 800-667-9326; www.norweco.com

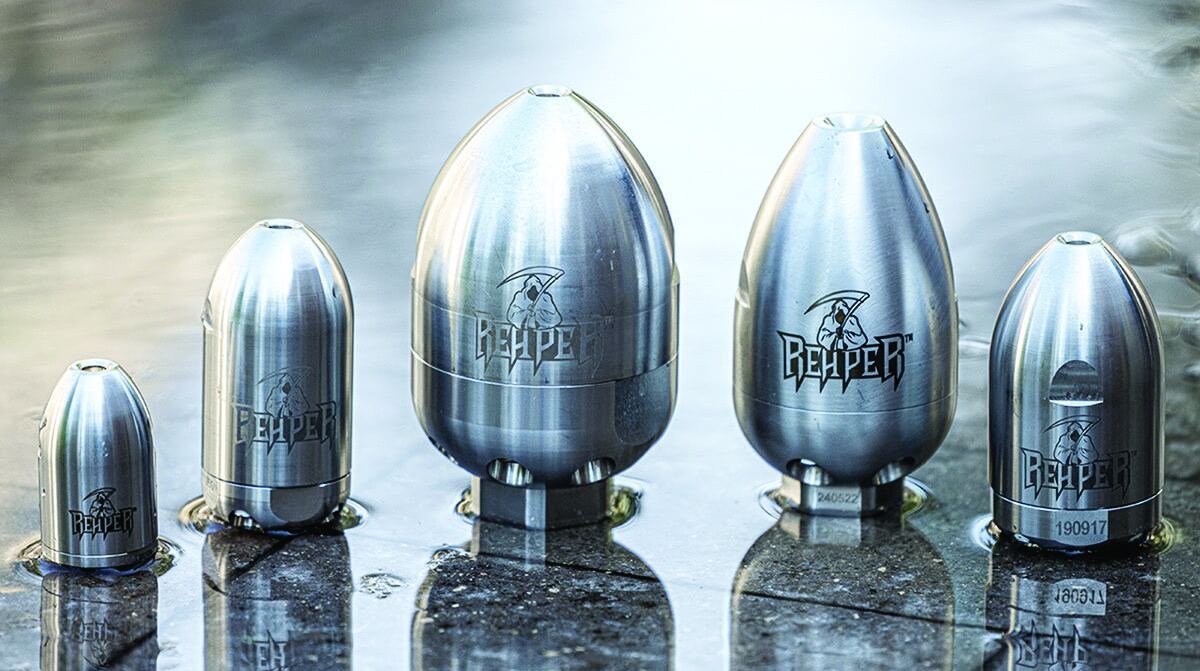

Hydra-Flex Reaper

The Reaper from Hydra-Flex clears and cleans by combining a powerful rotating front stream that cuts through blockages and cleans pipe walls, while the back streams propel the nozzle forward to break through anything in its path. With stainless steel housing and tungsten carbide wear surfaces, its strength has proven for long life in the harshest environments. With four versatile nozzle sizes, it is built to tackle residential, commercial or municipal sewer issues. It was designed to be repairable — not replaceable — and repair kits extend the nozzle’s life and have you back up and running in just 10 minutes. 952-808-3640; www.hydraflexinc.com

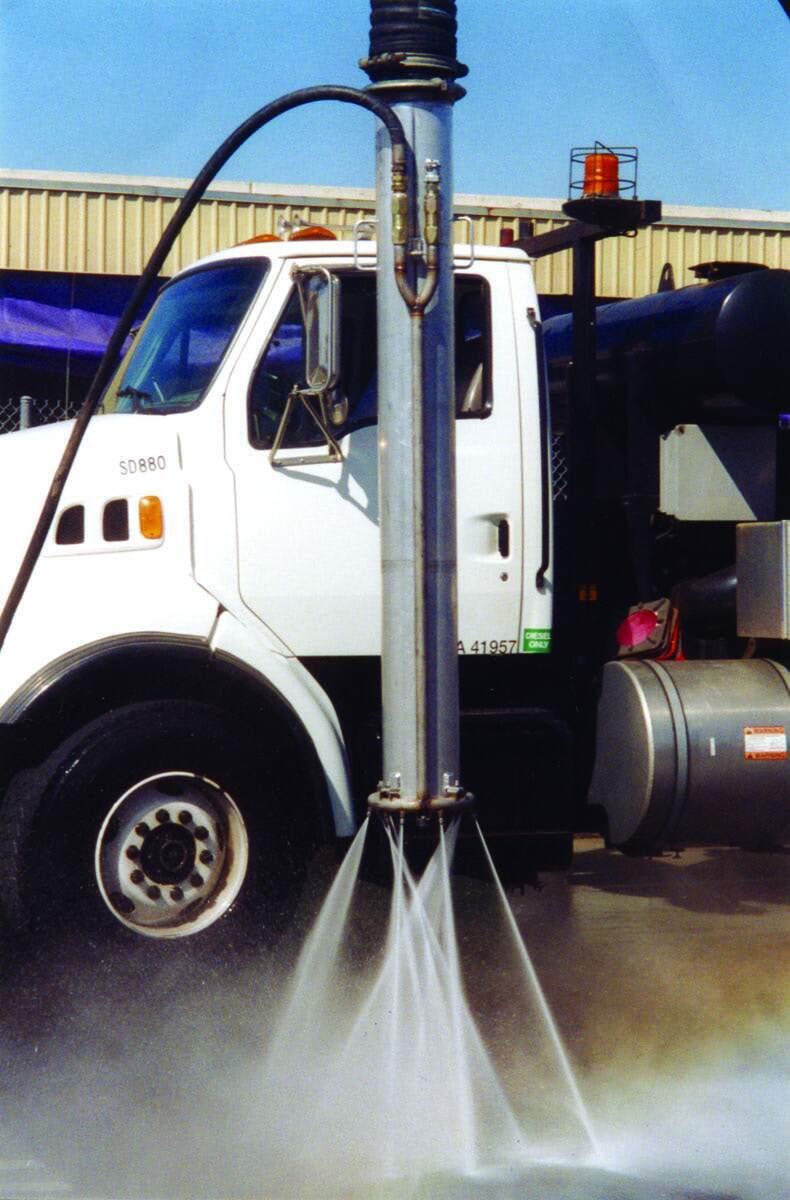

Soil Surgeon hydroexcavating tool

The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff-Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil while six boring outward bring the tube down. 949-363-1401; www.soilsurgeoninc.com

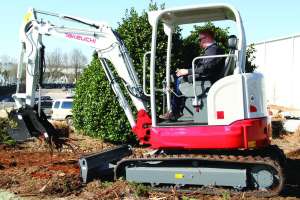

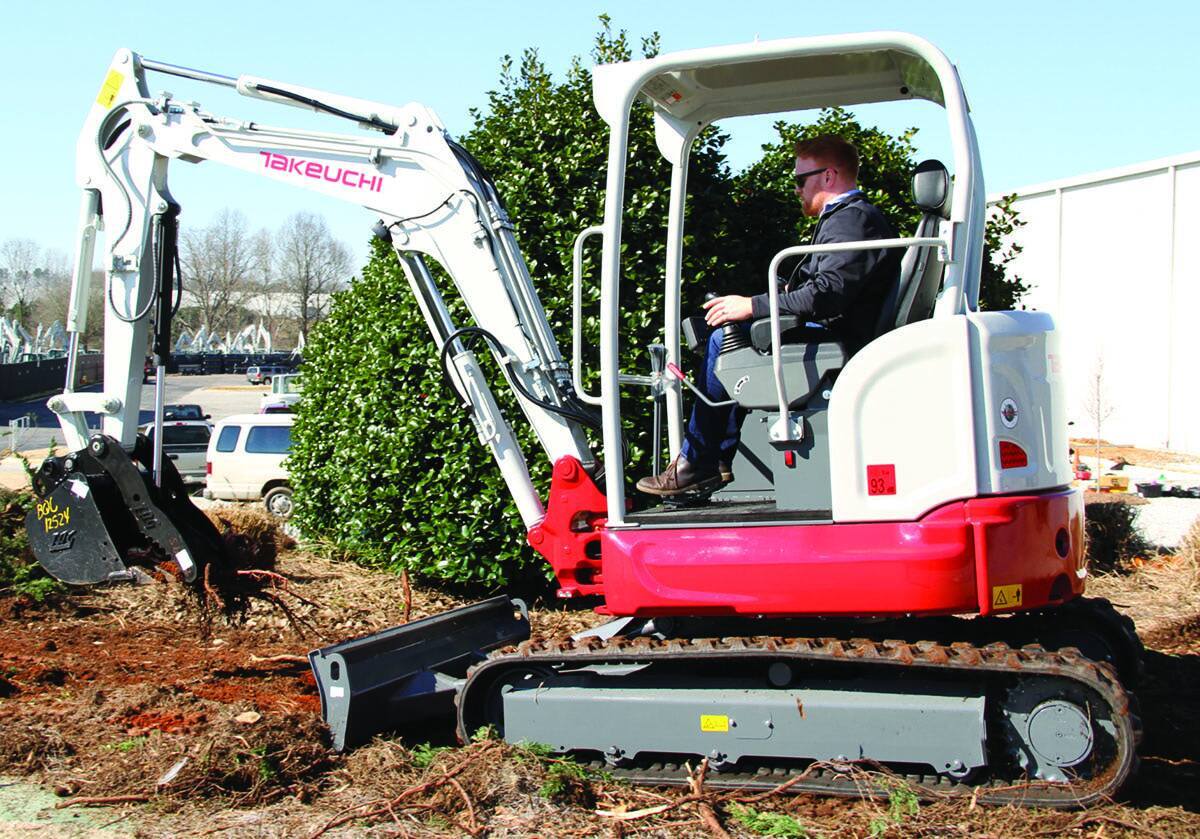

Takeuchi TB335R compact excavator

Available in cab or canopy models, Takeuchi’s TB335R compact excavator features a short tail swing design with a rear overhang of just 3.1 inches over the tracks, making it ideal for working in tight or confined spaces. The cab model has an operating weight of 8,310 pounds, a maximum bucket breakout force of 9,127 pounds and a maximum arm digging force of 4,290 pounds. A 24.4 hp engine delivers a maximum torque of 70.6 ft-lbs. Additional cab features include a 7-inch touchscreen, multifunction color display as well as air conditioning, heat/defrost, windshield wiper and washer, skylight w/ sunshade and AM/FM radio with Bluetooth technology. Canopy models include a 4.3-inch, high-definition, multifunction display. Both models have low-effort, pilot-operated joystick controls and a deluxe high-back suspension seat with head rest and retractable seat belt. The Takeuchi Fleet Management telematics system is standard, providing remote diagnostics, scheduled maintenance and alert settings. 706-693-3600; www.takeuchi-us.com

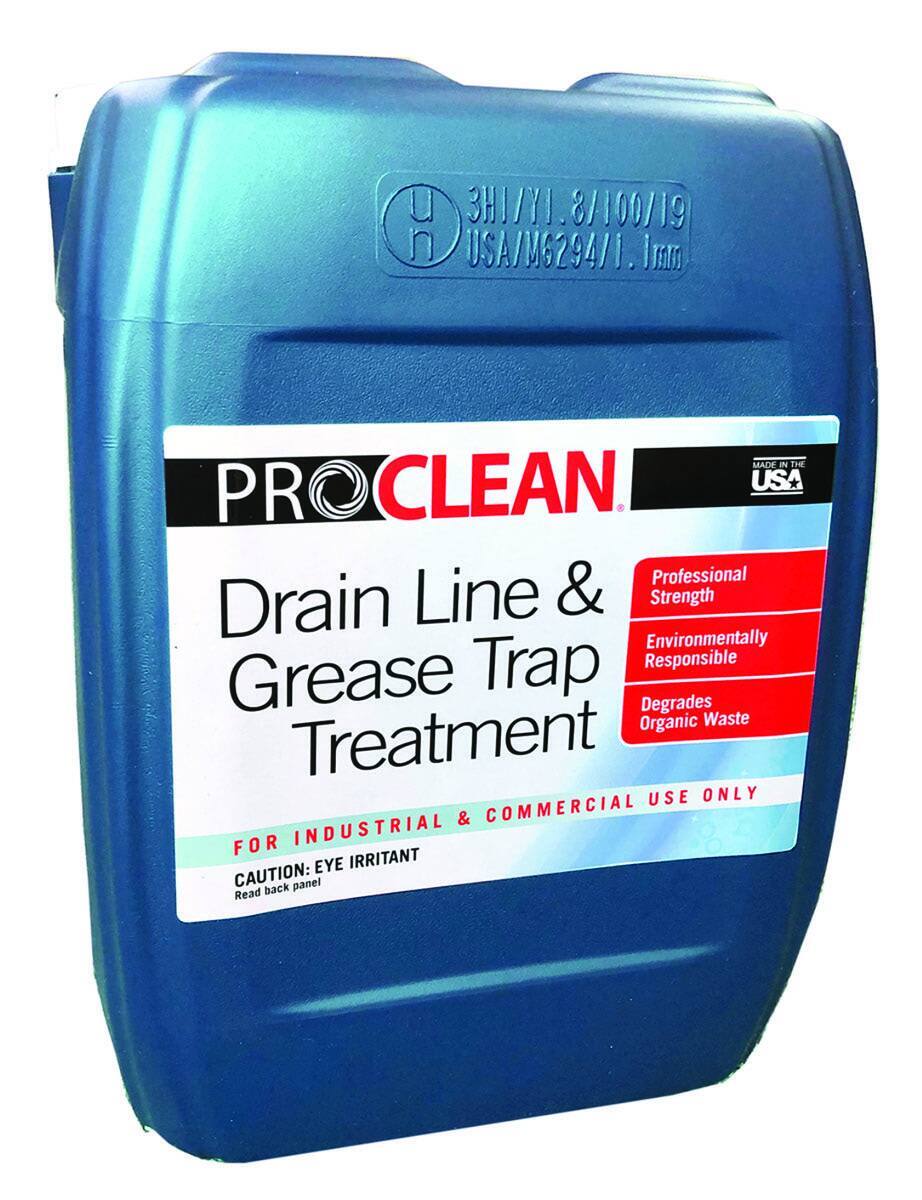

Duracable Manufacturing ProClean Drain Line & Grease Trap Treatment

ProClean Drain Line & Grease Trap Treatment from Duracable Manufacturing can reduce the need for grease trap pumping by as much as 65%. It uses a high concentrate of selectively adapted bacteria to degrade greases, fats, long-chain fatty acids and other organic wastes. Suitable for commercial locations such as restaurants, where a heavy concentration of waste products can clog drains quickly, it builds a biofilm of microbes on the walls of drainlines and grease traps. It works continuously, consuming grease and organic waste before it has a chance to build up. It is safe to use around food processing areas. For best results, use with a Time Flow Meter, also available from Duracable. 800-247-4081; www.duracable.com

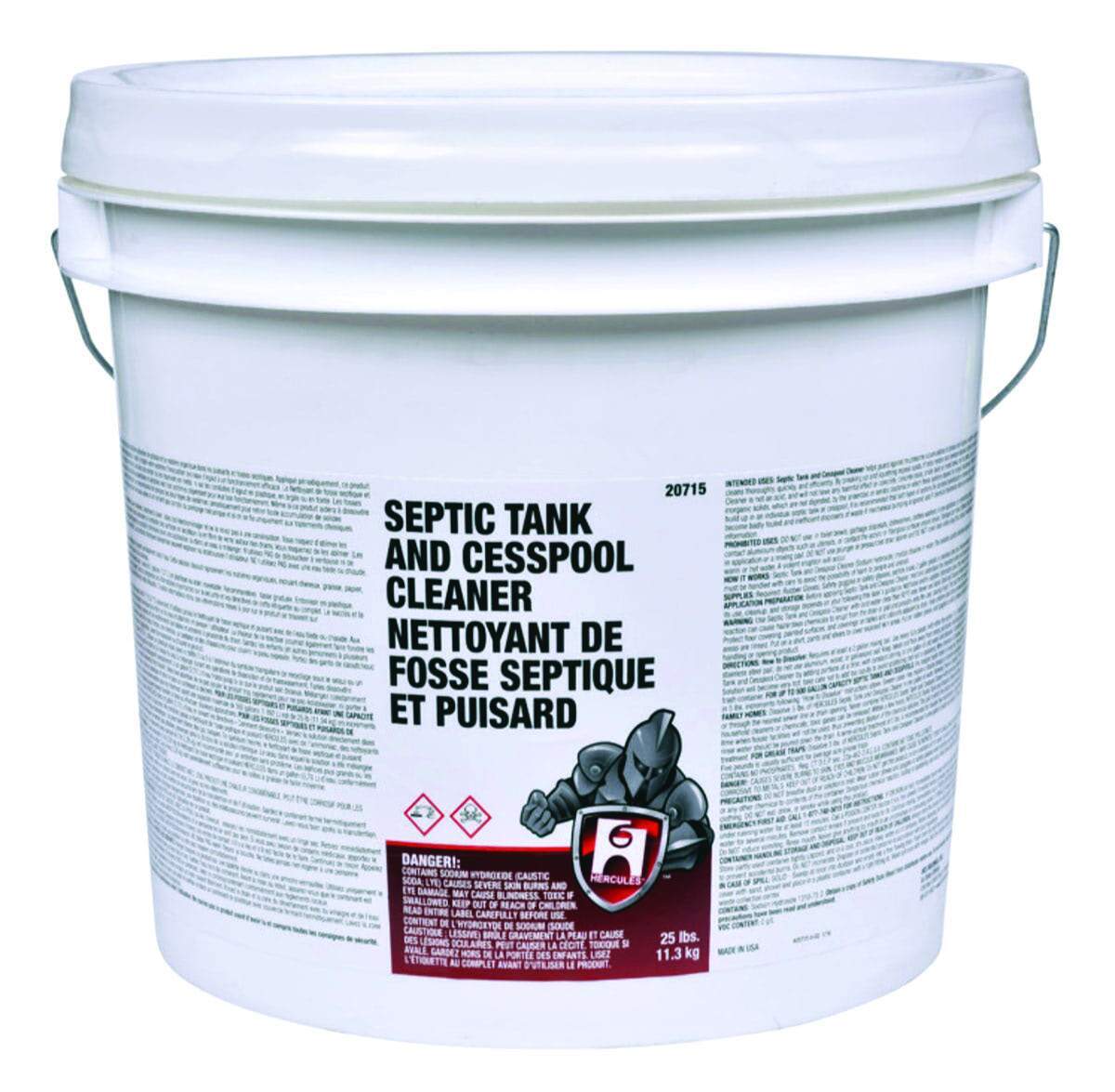

Oatey Hercules Cesspool Cleaner

Hercules Cesspool Cleaner from Oatey helps guard against troublesome accumulation of grease and organic matter in cesspools and septic tanks. It works by removing grease and sludge from baffles, pump floats, distribution boxes and lateral lines. Additionally, it helps restore a pump system within a few hours of adding it, and will not harm concrete, concrete block, cinder block or metal tanks. It can be used in emergencies to temporarily eliminate back-ups and overflows. Additionally, it is safe to use on plastic, clay or cast iron sewer lines. 800-321-9532; www.oatey.com

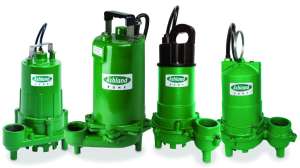

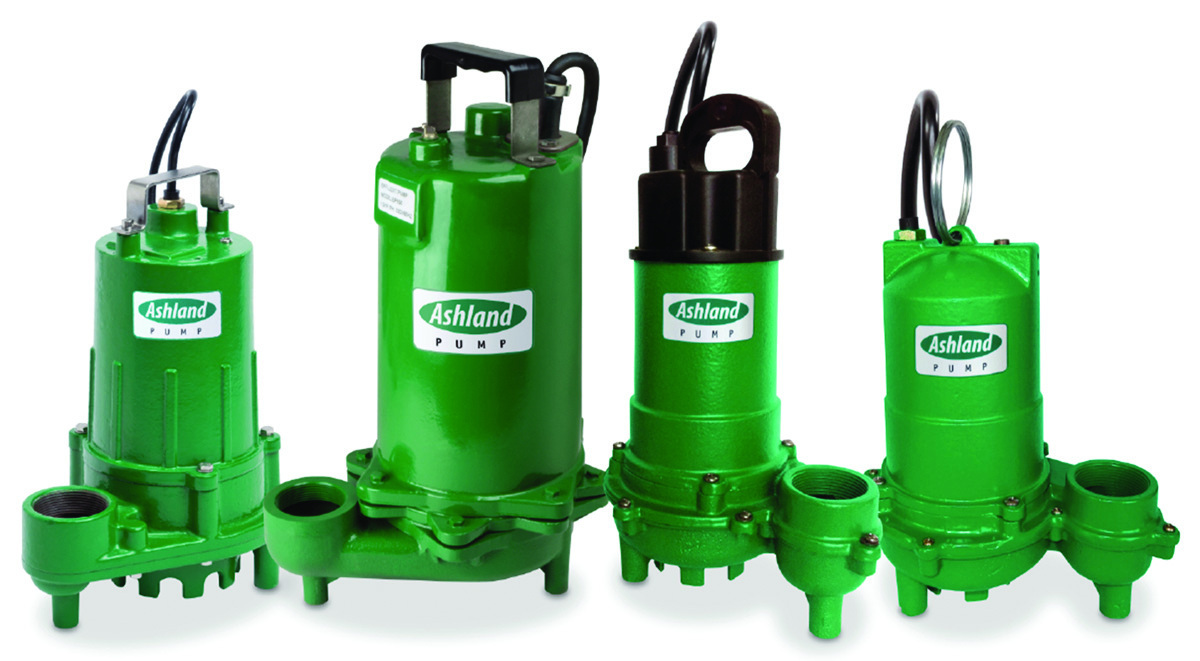

Ashland Pump Effluent Pumps

Heavy-duty effluent pumps from Ashland Pump are available in multiple horsepower sizes for various performance requirements, and feature efficient permanent split capacitor motors. The oil filled pumps have an upper and lower ball bearing design and handle solids up to ¾ of an inch. They are made of heavy-duty cast iron, with cast iron impellers and equipped with a piggyback switch (20-foot standard cord) or in manual configurations. They are offered in 3/10, 4/10, ½, ¾, 1 and 1-1/2 hp models. Ashland Pump is located in Ashland, Ohio, and manufactures a complete line of pump products for the residential wholesale market. 855-281-6830; www.ashlandpump.com

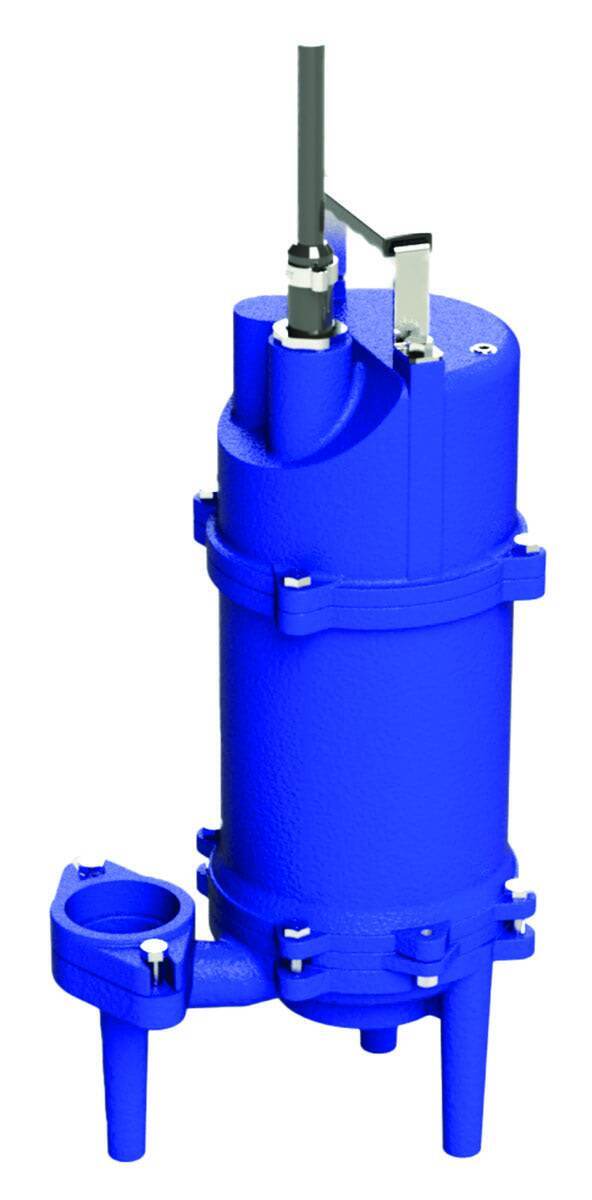

Crane Pumps & Systems Barnes Rival Grinder Pumps

Barnes Rival Grinder Pumps from Crane Pumps & Systems are engineered to vigorously reduce solids in residential sewage applications, where basic sewage ejector pumps continue to clog due to a high solids load. The pump features an axial cutter, which provides superior clog resistance, and a 1 hp, 3,450 rpm motor, available in 115- or 230-vent Single phase power. The discharge connection is a 2-inch vertical NPT, and the pump is constructed of robust cast iron with a bronze impeller. Both models include an optional wide-angle float for automatic operation. The pump can also be installed in a PitPro Basin Package, which is ideal for residential bathrooms, laundry rooms, utility sinks and floor drains. The package features a split cover for simplified basin access, a custom modeled basin, inlet hubs for easy connection to piping, and a ribbed floor to limit pump rotation due to torque during grinding. 937-778-8947; www.cranepumps.com

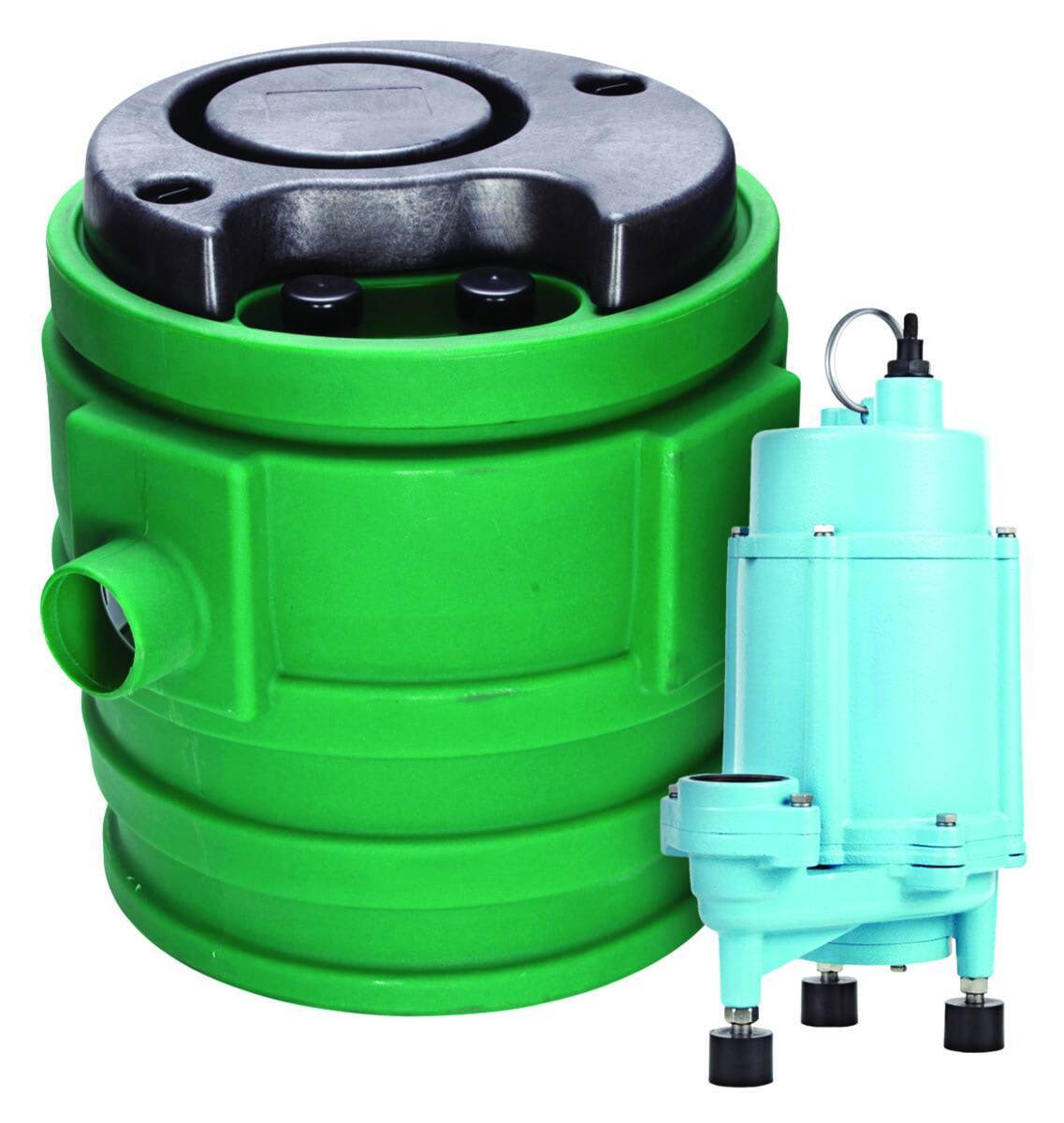

Franklin Electric Little Giant Pit+Plus

The Little Giant Pit+Plus package from Franklin Electric provides an all-in-one solution for light duty wastewater management. Each package includes a roto-molded polyethylene basin — the pit — combined with the user’s choice of Little Giant pump. The addition of the 1 hp grinder pump option joins the already available 4/10 and 1/2 hp sewage pump choices. The basin is available in two sizes: the 24x24 JR or 20x30 SR. The Little Giant 16G Series 1 hp grinder pump has a cutting mechanism modeled after the unique design used in larger Franklin Electric models. The heavy-duty 1 hp class F motor provides optimal power to prevent flushables and other debris from clogging and causing downtime. 844-250-4982; www.littlegiant.com

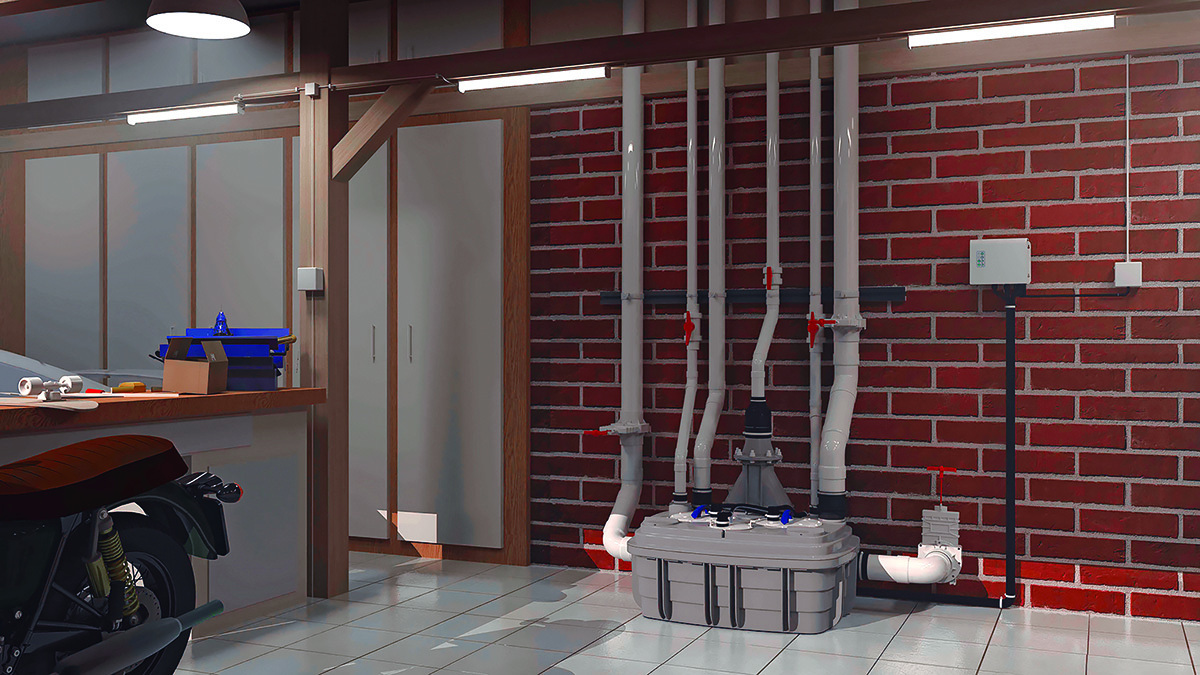

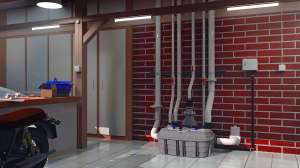

Saniflo Sanicubic 2VX

The Sanicubic 2VX lift station from Saniflo provides above-floor drainage for multiple plumbing fixtures for a commercial structure, eliminating the need for costlier and less convenient pit installations. It is an ideal solution for projects where conventional, below-floor drainage is impossible or too costly to install. Equipped with two 1.5 hp motors, the lift station is capable of discharging effluent through either 2- or 4-inch rigid pipe and offers a shut-off head of 43 feet. It employs an internal air pressure switch for automatically cycling the unit on and off. The unit also comes equipped with a wired control panel, as well as an external audible and visual LED indicator alarm in the event that a pump experiences overload or ceases to operate. Featuring easily removable circular panels on top, the IP68 enclosure permits ready access to every major component inside. 800-363-5874; www.saniflo.com

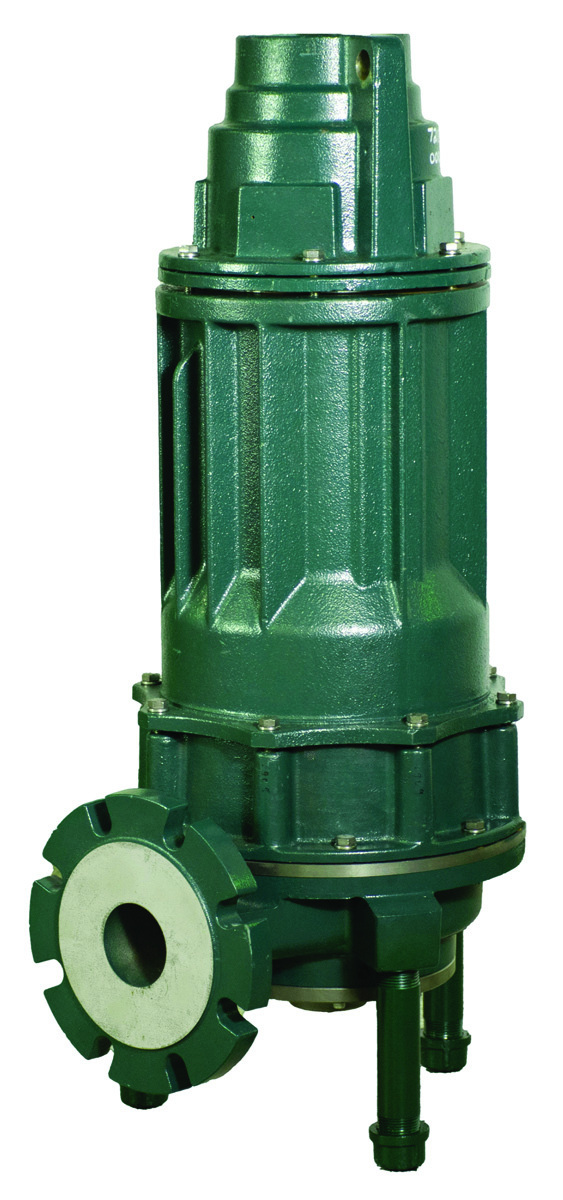

Zoeller Pump 72 HD Series

Zoeller Pump’s 10 and 15 hp 72 HD Series is an expansion to its existing grinder product offering now ranging from 1 to 15 hp. The units include a dual carbon ceramic shaft seal, moisture and thermal sensor, a buna-n gasket to protect the 3,450 rpm motor, and class F windings. Pumps are available in 208, 230, 460 or 575 volts with a three-phase connection. The 3- or 4-inch ANSI flanged horizontal discharge allows for easy adaption to competitor grinder or solids handling rail systems. Pumping performance ranges from 250 feet at shut off and a max flow at 150 gpm at 50 feet TDH. Removable legs clear the bottom of the pump to allow debris to flow easier into the cutter assembly when used with a guide rail assembly. This assembly uses a 440 stainless steel with a Rockwell C hardness of 55-60 cutter and cutter plate in a scissor-like cutting motion that reduces solids down to 1/8 inch. 800-928-7867; www.zoellerengineered.com

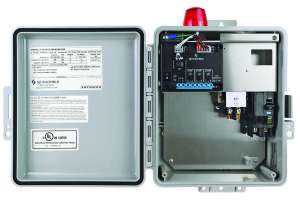

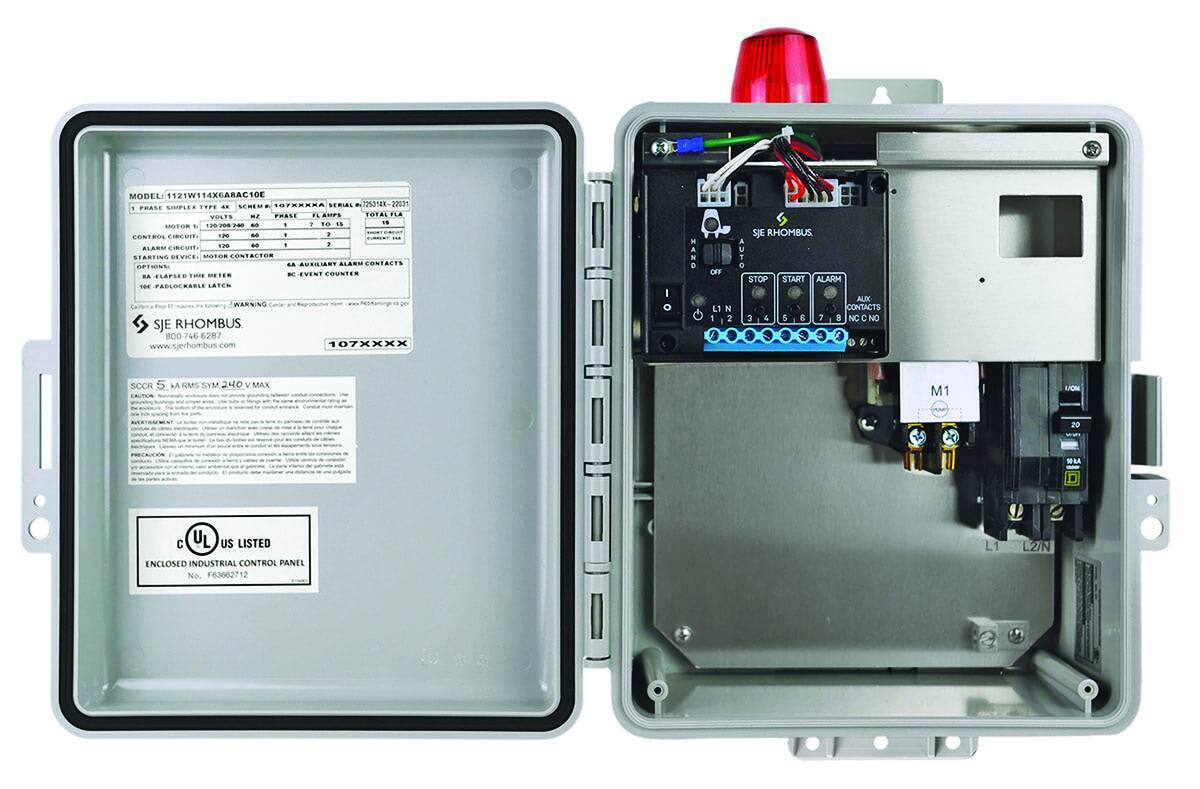

SJE Rhombus Model 112

The Model 112 control panel from SJE Rhombus features a user-friendly simplex controller. It controls one 120, 208 or 240 VAC single-phase pump in water and sewage installations. The simplex controller has a touch-safe housing clearly labeled and elevated in the enclosure. It has LED status indicators for pump run, power on and float status; float push-to-test buttons; an HOA switch that allows you to easily switch between Hand, Off and Auto; and form C auxiliary alarm contacts. There’s also an optional adjustable seal failure circuit and red LED indicator. It has built-in pump failure and float out-of-sequence detection. In addition, there are three user-selectable field-programmable options: alarm steady state or flashing; alarm auto reset or manual reset; and optional seal failure alarm beacon plus horn activation. It is also UL listed. 888-342-5753; www.sjerhombus.com

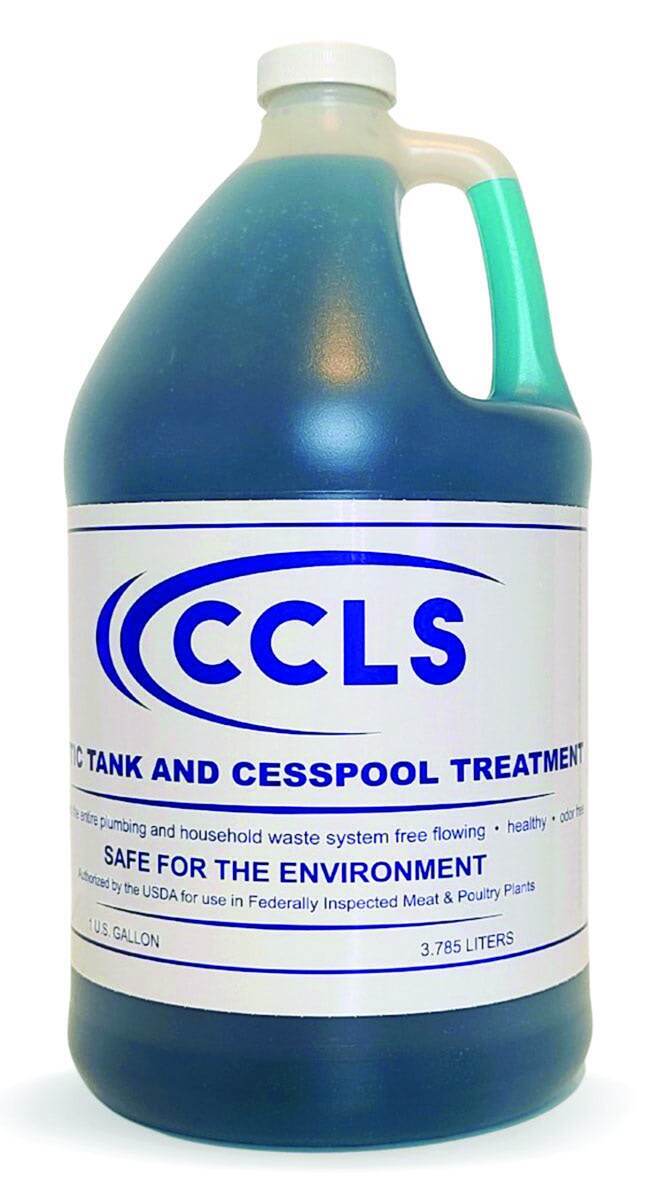

Cape Cod Biochemical CCLS

CCLS from Cape Cod Biochemical was originally formulated for municipal waste treatment facilities, and the technology has been miniaturized for onsite septic systems. It contains enzymes immediately available to break down solids buildup in drains, pipes, septic tanks and soil absorption systems. It also contains reproductive bacteria for continued aid in solids digestion and settling, suspended solids removal and odor control. Regular use along with periodic pumping is intended to provide many years or trouble free use. 800-343-8007; www.septiconline.com

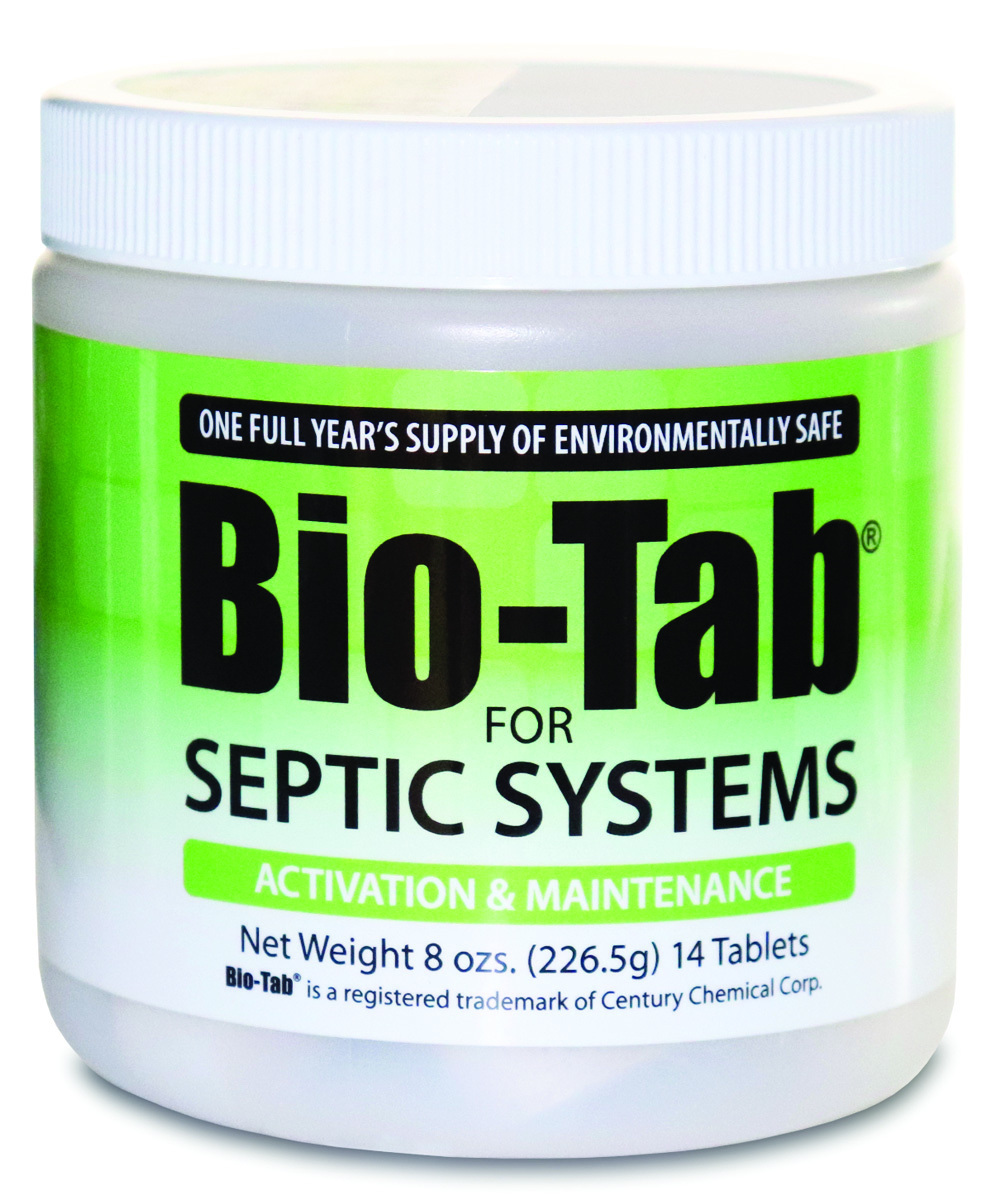

Century Chemical Bio-Tab

Bio-Tab from Century Chemical is a tablet that sinks to the bottom of septic tanks where build-up problems begin. There, self-reproducing bacteria and enzymes gradually dissolve to create a growing area of activity, digesting and liquefying organic waste — treating the entire system, including the drainfield. Common household chemicals such as anti-bacterial products, bleaches, detergents, or a heavy presence of antibiotics can kill already low levels of bacteria in the septic system. When this happens, waste is no longer being digested, resulting in buildups of solids that plug the system and give off offensive odors. Bio-Tab is able to establish itself by working from the inside out, and regular usage — combined with routine pumping — can aid and support the natural digestion of waste, helping septic systems to maintain good working condition. 800-348-3505; www.bio-tab.com

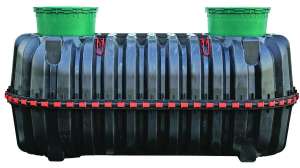

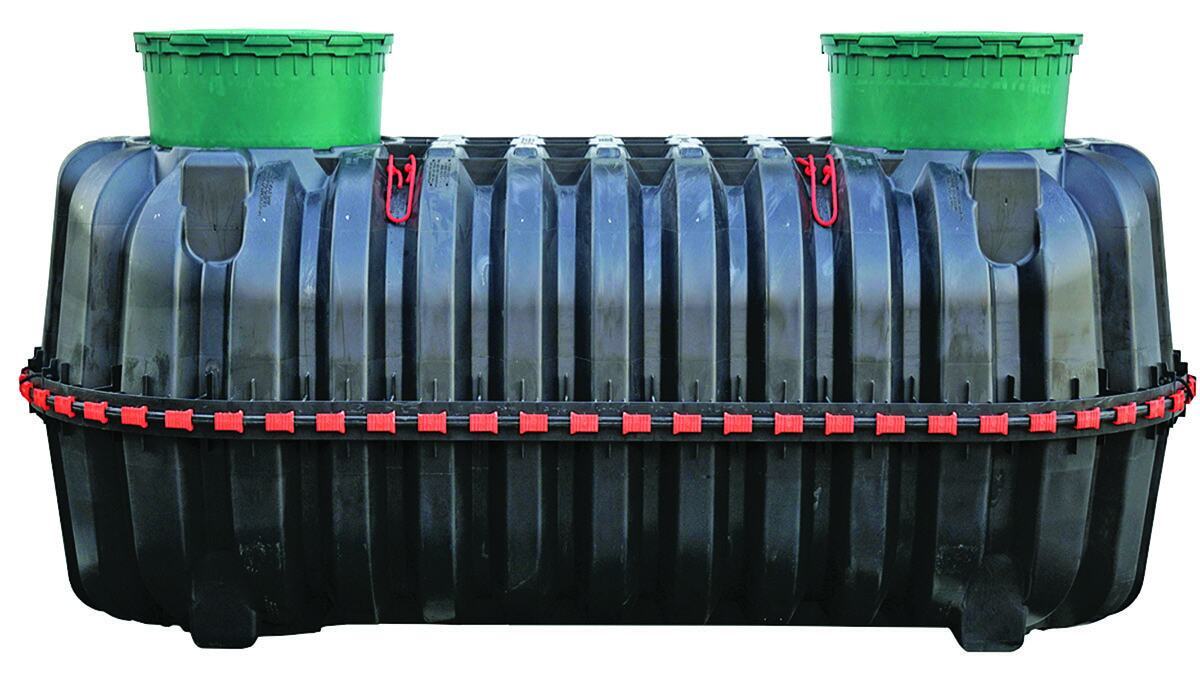

Infiltrator Water Technologies CM-1060

The CM-1060 septic tank from Infiltrator Water Technologies offers strength, efficient storage, and easy installation in a compression-molded septic tank design. The first in a new line of CM-Series tanks, the tank is manufactured using recycled polypropylene and is similar in design to the IM-1060 septic tank which was introduced by Infiltrator in 2010. Seven inches longer than the IM-1060 due to the rounded end walls, it will include the Infiltrator septic tank lid design and be compatible with the watertight EZsnap Riser family of products. Like the IM-1060, it is a two-piece septic tank offering shipping and storage efficiencies. Additional sizes will be available in the future. 800-221-4436; www.infiltratorwater.com

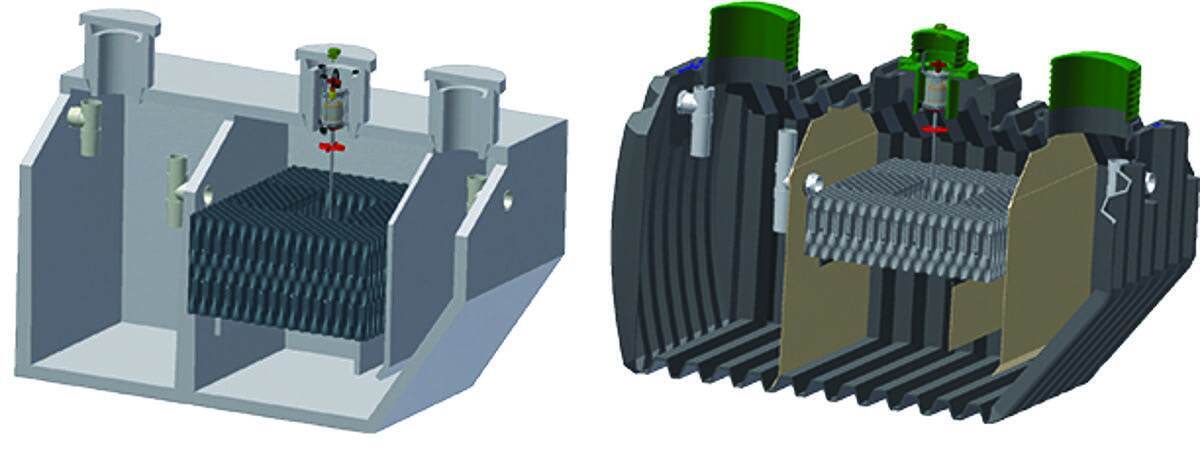

Jet Inc. BAT Media Plants

Jet Inc. BAT Media Plants offer variable capacity in an NSF 40 and 245 listed treatment system. The precast concrete J-1500 Series provides complete effluent treatment from 500 to 1,500 gpd with the convenient option of a fully integrated pump tank. The 500 and 800 gpd PLT Series tanks are the lightweight, rotational molded alternative to the concrete J-1500 Series. The seamless polyethylene tanks are easy to transport and install in the most difficult site conditions. 800-321-6960; www.jetincorp.com

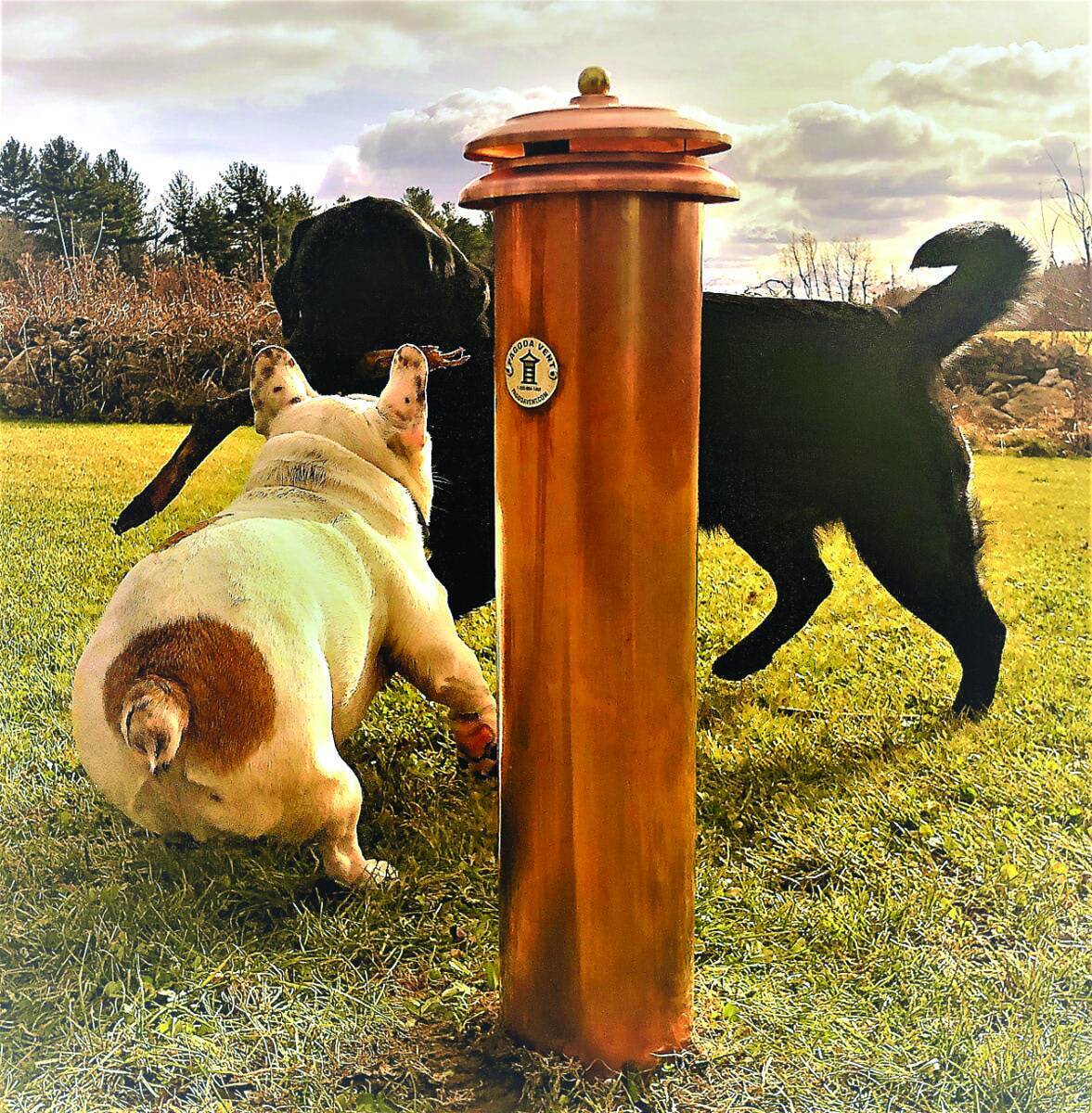

Pagoda Vent

Decorative Pagoda Vents come in 16-, 24- and 36-inch sizes, and fit over 4-inch PVC pipe. The original vents are bark (brown) or moss (green) color to blend into the landscape. The newest copper offering will add patina over time or can be maintained as a pristine copper landscape feature. All versions support the long life of system components by providing septic field microbes the oxygen they need to thrive, concrete tank gas release to mitigate microbial induced corrosion, and pressure relief for pumps. An optional odor filter cartridge uses concentrated media for years of odor control, according to the maker. 888-864-1468; www.pagodavent.com

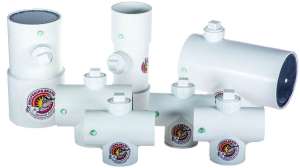

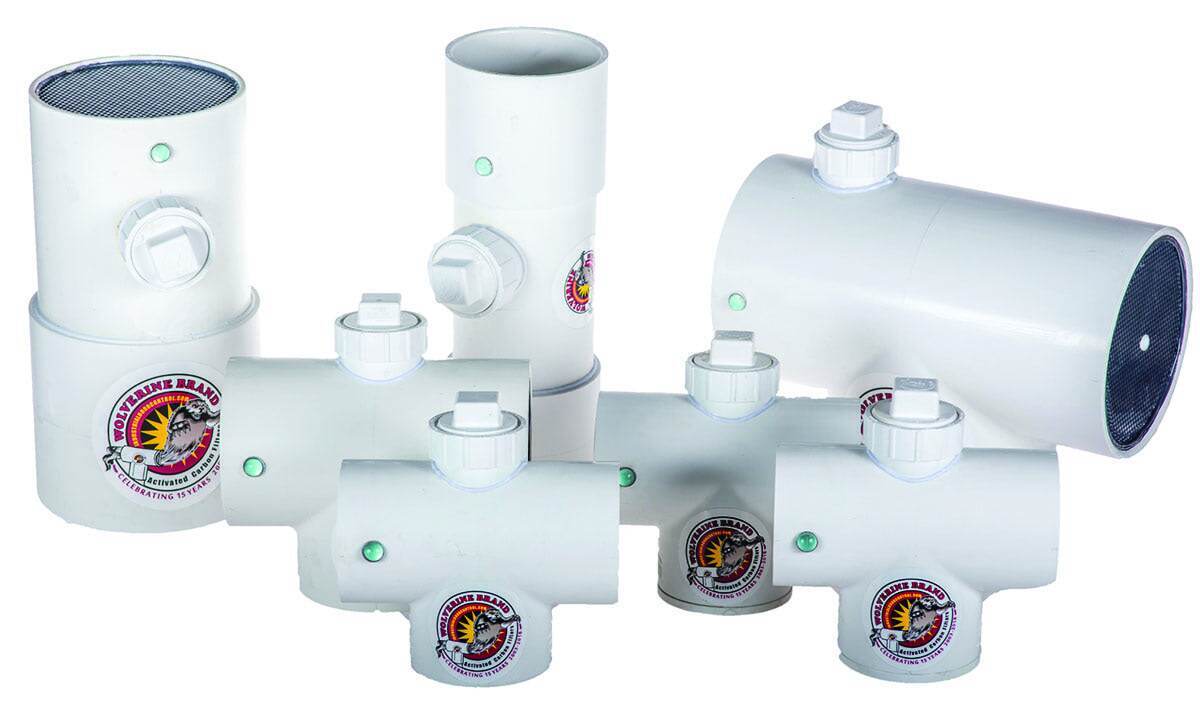

Industrial Odor Control Heavy Duty

Industrial Odor Control’s residential workhorse, the Heavy Duty, is for residential and light industrial applications for the removal of the odors associated with volatile organic compounds. It comes with the first charge of carbon, Norit Darco’s H2S Sulfursorb Plus. This carbon is engineered to work efficiently in high-humidity conditions. The filter housings are manufactured from heavy-duty schedule 40 PVC. They come with an end-of-service indicator, a qualitative (yes/no) colorimetric indicator for the end-of-service life of carbon adsorbers and filters. It provides real-time indication of the breakthrough of hydrogen sulfide gas, allowing the customer the ability to order replacement carbon before the odor returns. It is located on the side of the filter and is easily viewable from the ground, allowing the homeowner to know when the carbon is becoming saturated without climbing on the roof or waiting until they notice an odor breakthrough. The indicator is waterproof. 866-667-8465; www.industrialodorcontrol.com
